DSE7200 / 7300 Series Operators Manual
118

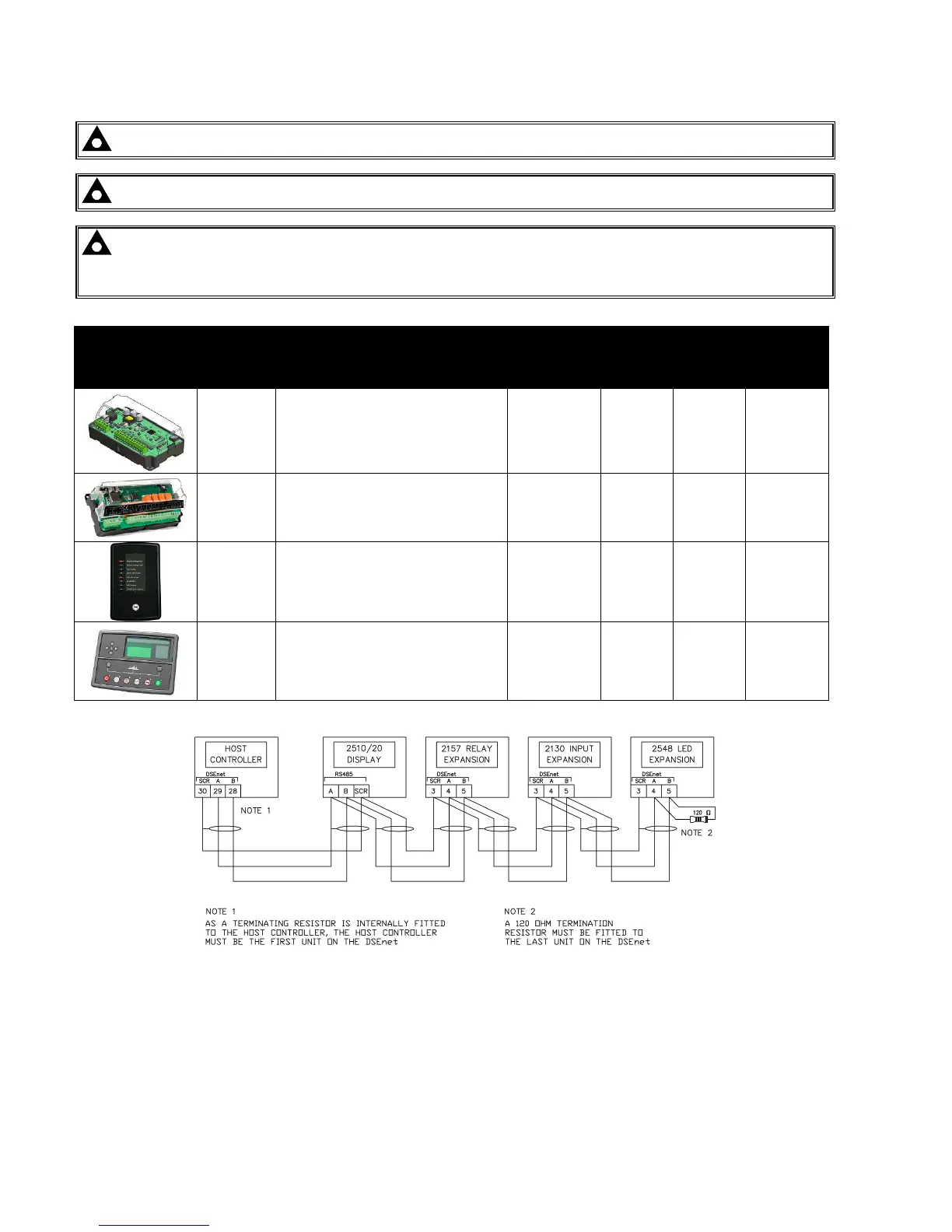

11.4 EXPANSION MODULES
NOTE:- Expansion modules are not compatible with the DSE7200 series controllers.
NOTE:- A maximum of twenty (20) expansion modules can be connected to the DSENet®.
NOTE:- DSENet® utilises an RS485 connection. Using Belden 9841 (or equivalent) cable allows for the
expansion cable to be extended to a maximum of 1.2km.
DSE Stock and supply Belden 9841 cable. DSE Part Number 016-030.
Item Description
DSE Part numbers
Max No.
supported
Model order
number
Sales
literature
Operator
manual
Installation
Instructions
4
Model DSE2130 expansion input module
provides additional analogue and digital inputs
for use with the 73x0 controller.
2130-001-00 055-060 057-082 053-033
10
Model DSE2157 expansion relay module
provides eight additional voltage free relays for
use with the 73x0 controller
2157-001-00 055-061 057-083 053-034
10
Model DSE2548 expansion LED module
provides additional LED indications, internal
sounder and remote lamp test/alarm mute for
use with the 73x0 controller.
2548-001-00 055-062 057-084 053-032
3
Model DSE2500 Series Expansion Display
module provides remote control / display
capability for the 7300 series controller.
DSE2510 is suitable for DSE7310 controllers
DSE2520 is suitable for DSE7320 controllers
2510-001-00
2520-001-00
055-074 057-107 053-064
