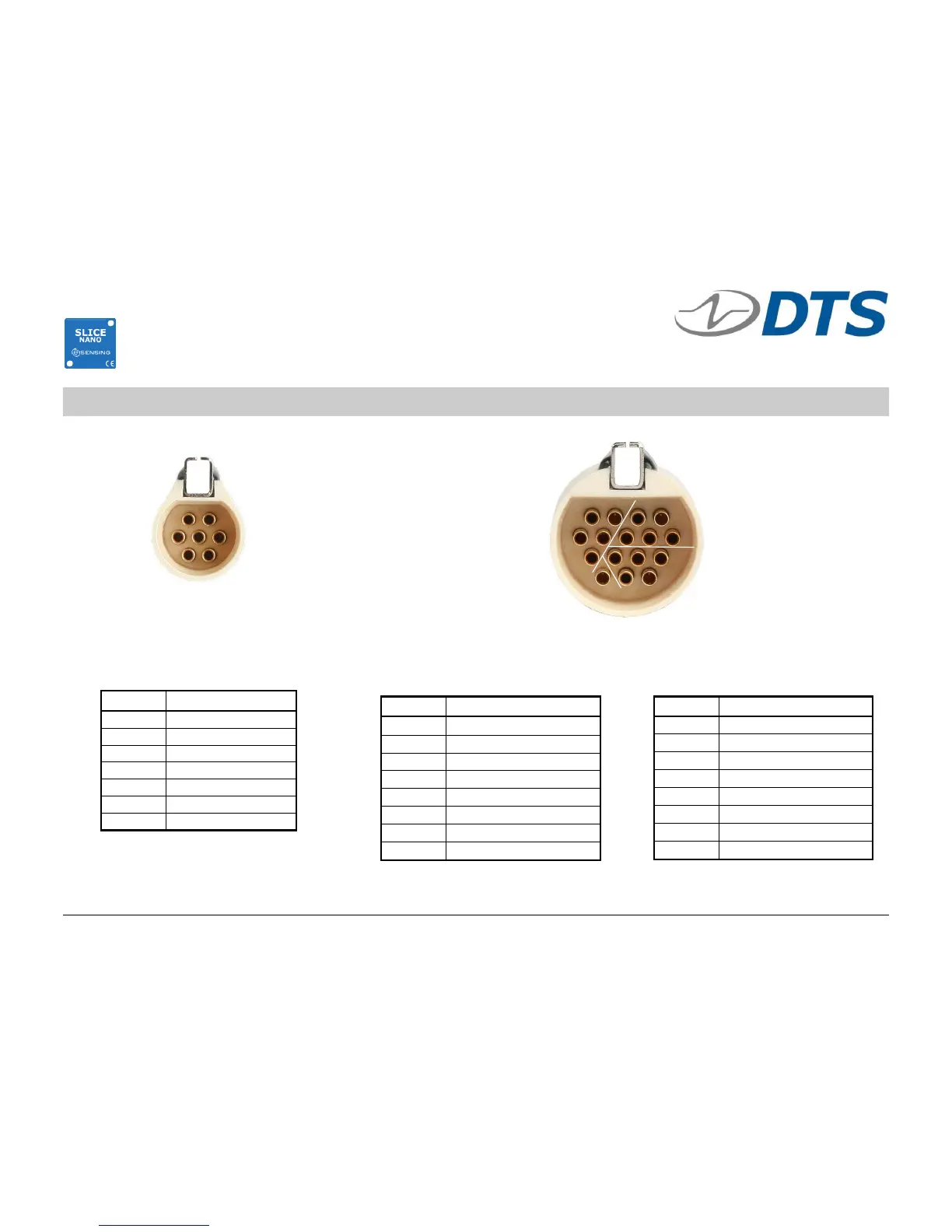

SLICE NANO Bridge Pin Assignments
July 2017 ©Diversified Technical Systems, Inc. - All Rights Reserved
Channels 1, 2 and 3*
(looking into the connector)
Mating connector: DTS P/N 80000-04019
Mating connector + backshell:
DTS P/N 13000-30310
Mating connector + backshell + ID:
DTS P/N 13000-30120
Pin
Function
1
+ Sig
2
- Sig
3
+ Ex
4
+ ID
5**
- Ex
6**
- ID
7**
Shield
* Three connectors; cables 6, 10
and 14 cm in length
** Pins 5, 6 and 7 are common
Pin
Function
1
+ Sig (Ch 1)
2
+ ID (Ch 1)
3
- Sig (Ch 2)
4
+ Sig (Ch 2)
5
- Sig (Ch 1)
6
+ Ex (Ch 1)
7
- Ex (Ch 1)
8
+ Ex (Ch 2)
*** One connector; cable 10 cm in length
Pin
Function
9
+ ID (Ch 2)
10
+ Sig (Ch 3)
11
+ Ex (Ch 3)
12
- Ex (Ch 3)
13
- Ex (Ch 2)
14
- Sig (Ch 3)
15
+ ID (Ch 3)
16
- ID (Ch 1, 2, 3)/Shield
-Ex/-ID/Shield are common
1
2
3
5
6
7
Channels 1-3***
(looking into the connector)
Mating connector: DTS P/N 80000-14031
Mating connector + backshell: DTS P/N 13000-30320
Mating connector + backshell + 3 IDs: DTS P/N 13000-30140
1
4
5
9
10
13
14
16
Ch 1
Ch 3
Ch 2
