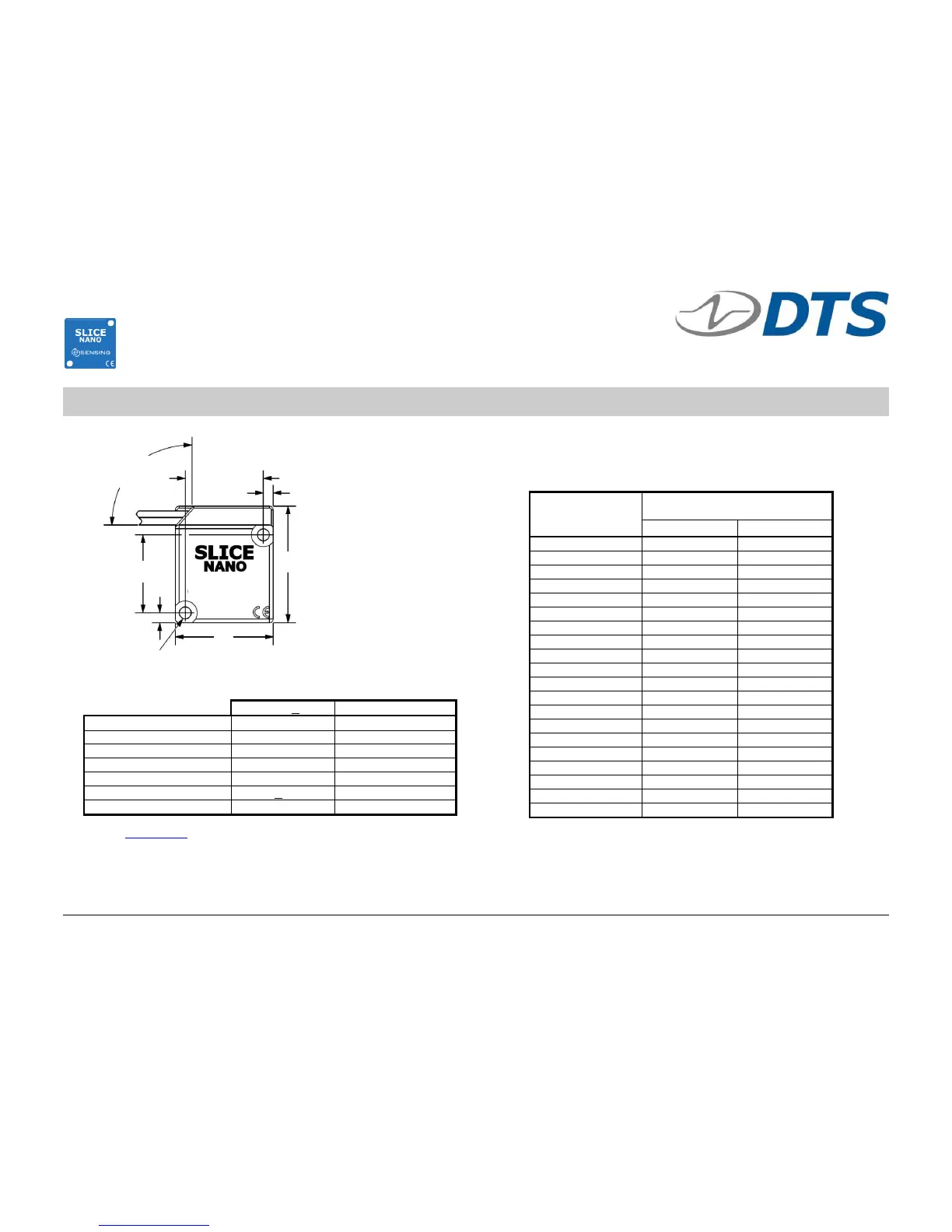

SLICE NANO Mechanical Specifications
July 2017 ©Diversified Technical Systems, Inc. - All Rights Reserved
Ø3.2 mm (0.125 in) mounting thru holes x2
Accepts M2.5 (loose fit); 4-40 (free fit); M3 (tight fit)
Weight (+5 g)
Height
Lid
2.6 g
1.5 mm (0.059 in)
IEPE*
23 g
7 mm (0.276 in)
Bridge (1 conn)**
12.6 g
5.5 mm (0.217 in)
Bridge (3 conn)**
13.8 g
5.5 mm (0.217 in)
Base**
14.2 g
6.5 mm (0.256 in)
Battery
7 g (+1 g)
4 mm (0.157 in)
Extended Capacity Battery
20 g
16 mm (0.630 in)
** Includes cable assemblies
See the DTS Support site for future updates.
Total Stack Height
mm (inch)
Mounting Screw Length (min)
BH or SHC
M2.5*/M3**
4-40**
13.5 (0.531)
18 mm
3/4"
17.5 (0.689)
22 mm
7/8"
19 (0.748)
25 mm
1"
23 (0.906)
30 mm
1-1/8"
24.5 (0.965)
30 mm
1-1/8"
28.5 (1.122)
35 mm
1-1/4"
30 (1.181)
35 mm
1-3/8"
34 (1.339)
40 mm
1-1/2"
35.5 (1.398)
40 mm
1-3/4"
39.5 (1.555)
45 mm
1-3/4"
41 (1.614)
45 mm
1-3/4"
45 (1.772)
50 mm
2"
46.5 (1.831)
60 mm
2"
50.5 (1.988)
60 mm
2-1/2"
52 (2.047)
60 mm
2-1/2"
56 (2.205)
60 mm
2-1/2"
57.5 (2.264)
70 mm
2-1/2"
61.5 (2.421)
70 mm
3"
63 (2.480)
70 mm
3"
67 (2.638)
70 mm
3"
Specifications may be revised without notice. Torque specs: * 3.9 in-lb (0.44 Nm); ** 5.2 in-lb (0.59 Nm)
D
C
C
B
B
A
90° cable
clearance
Cables
A = 26 mm (1.024 in)
B = 20.75 mm (0.817 in)
C = 2.62 mm (0.103 in)
D = 31 mm (1.220 in)
D = 46 mm (1.811 in)*
