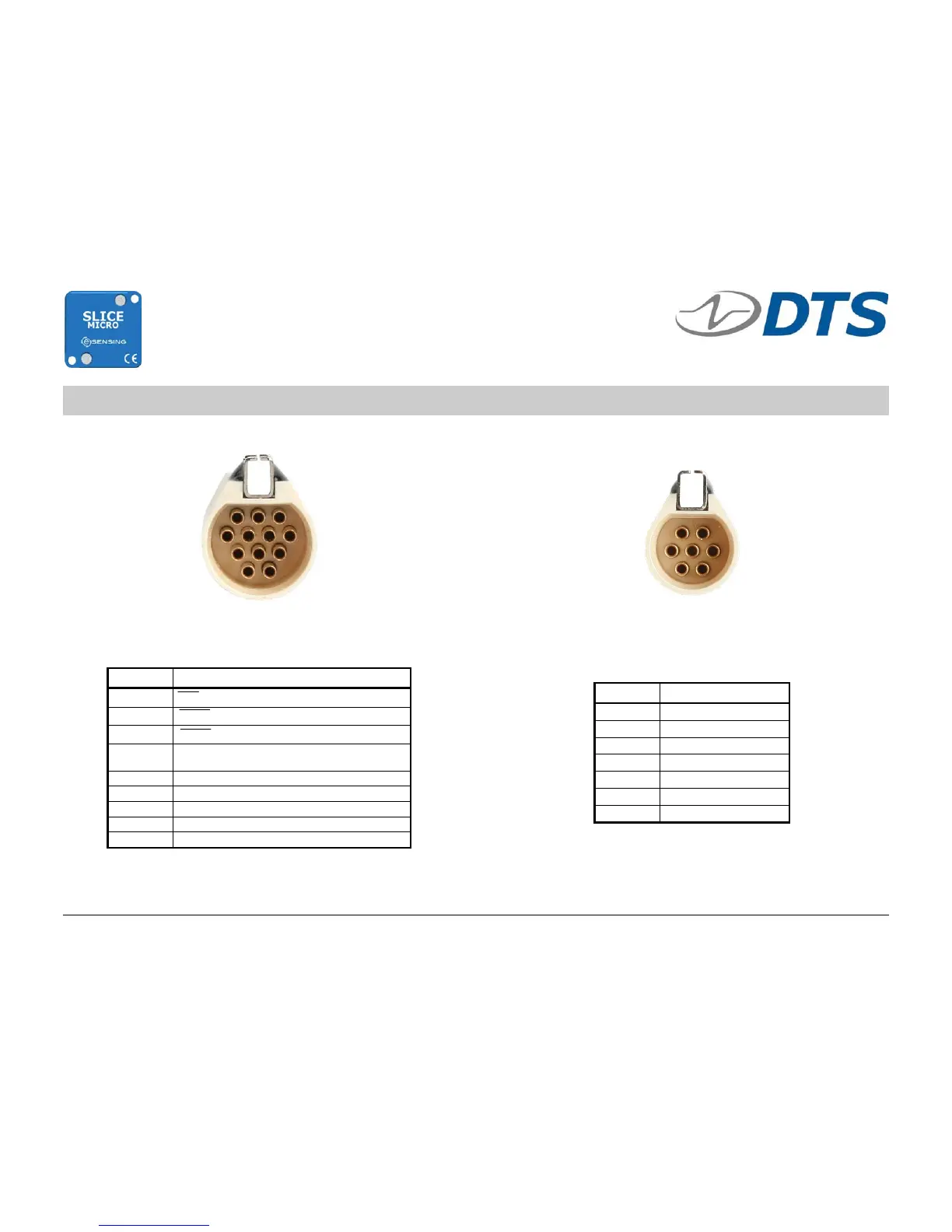

SLICE MICRO Pin Assignments
July 2011 © Diversified Technical Systems, Inc. - All Rights Reserved
DOWN and UP* conne
ctors for SLICE MICRO Base
(looking into the connector)
Mating connector: DTS P/N 80000-04030
Mating connector + backshell: DTS P/N 13000-30170
Pin Function
1
On (contact closure input to ground)
2
Start (contact closure input to ground)
3
Event (contact closure input to ground)
4
Status output (5 V via 10K with respect
to ground)
5, 6
7–15 VDC
7, 8, 12
Ground
9
USB_PWR
10
USB_DP
11
USB_DM
* to PC
Channels 1, 2 and 3 for SLICE MICRO Bridge
(looking into the connector)
Mating connector:
DTS P/N 80000-04019
Mating connector + backshell: DTS P/N 13000-30310
Mating connector + backshell + ID: DTS P/N 13000-30120
Pin Function
1 + Sig
2 - Sig
3 + Ex
4 + ID
5* - Ex
6* - ID
7* Shield
* Pins 5, 6 and 7 are common
1
3
4
7
8
10
12
11
1 2
3
5
6
7
