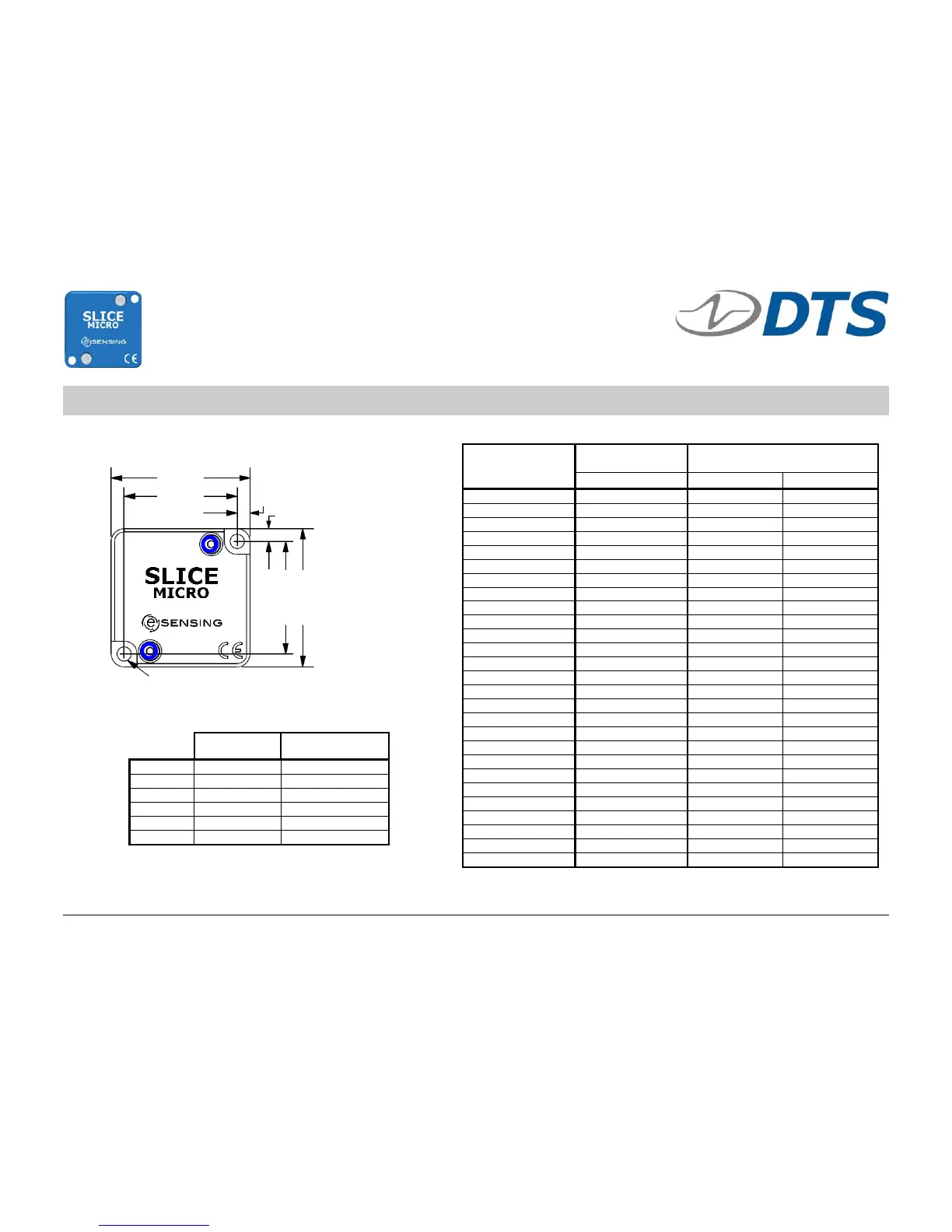

SLICE MICRO Mechanical Specifications
July 2011 © Diversified Technical Systems, Inc. - All Rights Reserved
Weight
Height
mm (i
nch)
Lid ~9 grams 2 (0.079)
IEPE ~28 grams 7 (0.276)
Accel ~33 grams 9 (0.354)
ARS ~33 grams 9 (0.354)
Bridge ~25 grams 7 (0.276)
Base ~28 grams 8 (0.314)
Assembly Screw
Length (F
H)
Mounting Screw Length (min)
(BH or SHC)
Total Stack Height
mm (inch)
M3* M4** 6-32***/8-32**
17 (0.67) 16 mm 22 mm 7/8"
24 (0.95) 20 mm 30 mm 1-1/4"
26 (1.02) 25 mm 35 mm 1-1/4"
31 (1.22) 30 mm 35 mm 1-1/2"
33 (1.30) 30 mm 40 mm 1-1/2"
35 (1.38) 35 mm 40 mm 1-5/8"
38 (1.50) 35 mm 45 mm 1-3/4"
40 (1.57) 40 mm 45 mm 1-3/4"
42 (1.65) 40 mm 50 mm 2"
45 (1.77) 45 mm 50 mm 2"
47 (1.85) 45 mm 55 mm 2-1/4"
49 (1.93) 45 mm 55 mm 2-1/4"
52 (2.05) 50 mm 60 mm 2-1/4"
54 (2.13) 50 mm 60 mm 2-1/2"
56 (2.21) 55 mm 70 mm 2-1/2"
59 (2.32) 55 mm 70 mm 2-1/2"
61 (2.40) 60 mm 70 mm 3"
63 (2.48) 60 mm 70 mm 3"
66 (2.60) 65 mm 70 mm 3"
68 (2.68) 65 mm 80 mm 3"
70 (2.76) 70 mm 80 mm 3"
73 (2.87) 70 mm 80 mm 3"
75 (2.95) 75 mm 80 mm 3-1/2”
77 (3.03) 75 mm 90 mm 3-1/2”
80 (3.15) 80 mm 90 mm 3-1/2”
82 (3.23) 80 mm 90 mm 3-1/2”
84 (3.31) 80 mm 90 mm 3-1/2”
Specifications may be revised without notice. Torque specs: * 5.2 in-lb (0.59 Nm); ** 19.8 in-lb (2.24 Nm); *** 9.6 in-lb (1.1 Nm)
A
B
C
Ø4.3 mm (0.169 in) mounting thru holes x2
Accepts 6-32 (loose fit); M4 (free fit); 8-32 (tight fit)
A = 42 mm (1.654 in)
B = 34.2 mm (1.346 in)
C = 3.9 mm (0.154 in)
C
A B
