Dual XDM7615 - Wiring Diagram; Electrical Connections Overview

3
FUSE
Whenreplacingthefuse,
makesurenewfuseisthe
correcttypeandamperage.
Usinganincorrectfuse
coulddamagetheradio.
TheXDM7615usesone
10ampATMfuselocated
besidethewiringconnector.
XDM7615 INSTALLATION

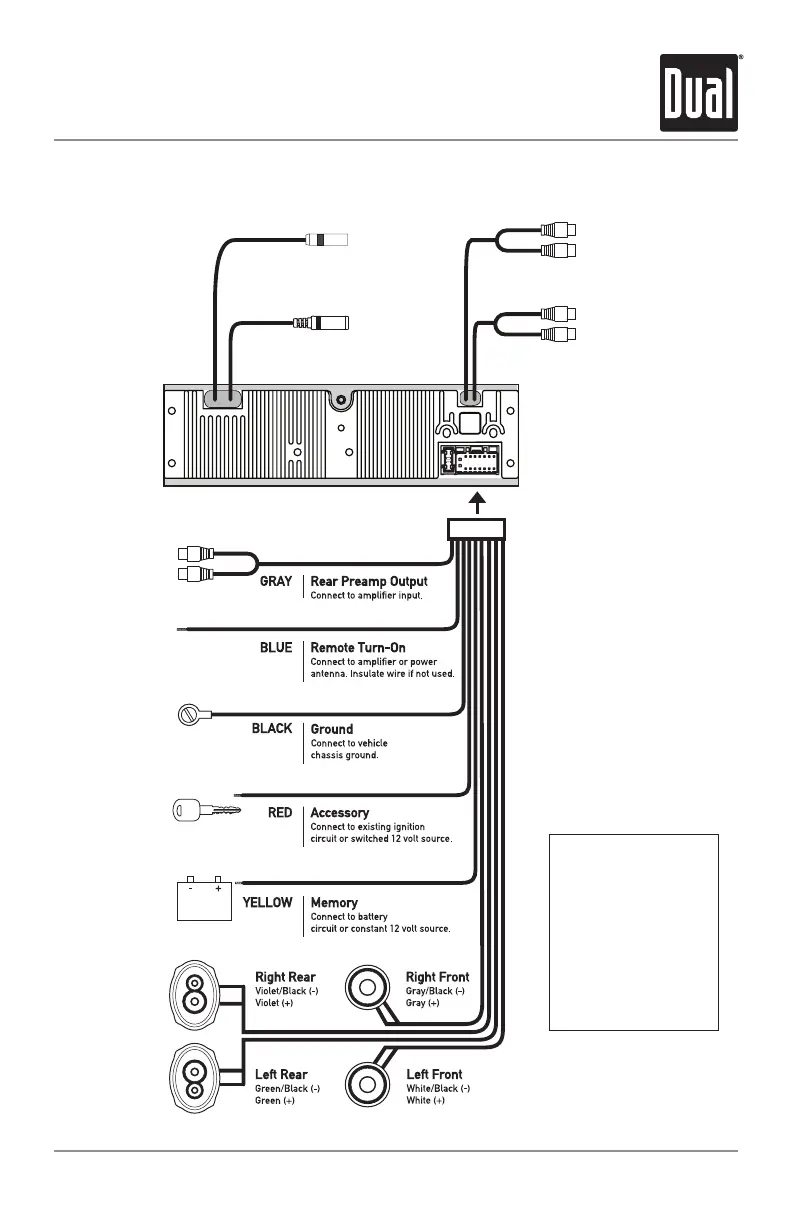

Wiring Diagram
BLUE
Subwoofer Preamp Output
BLACK
Front Preamp Output
Steering Wheel Interface Input
PAC SWI-PS required
Antenna Connector
