XDMA6540 OPERATION

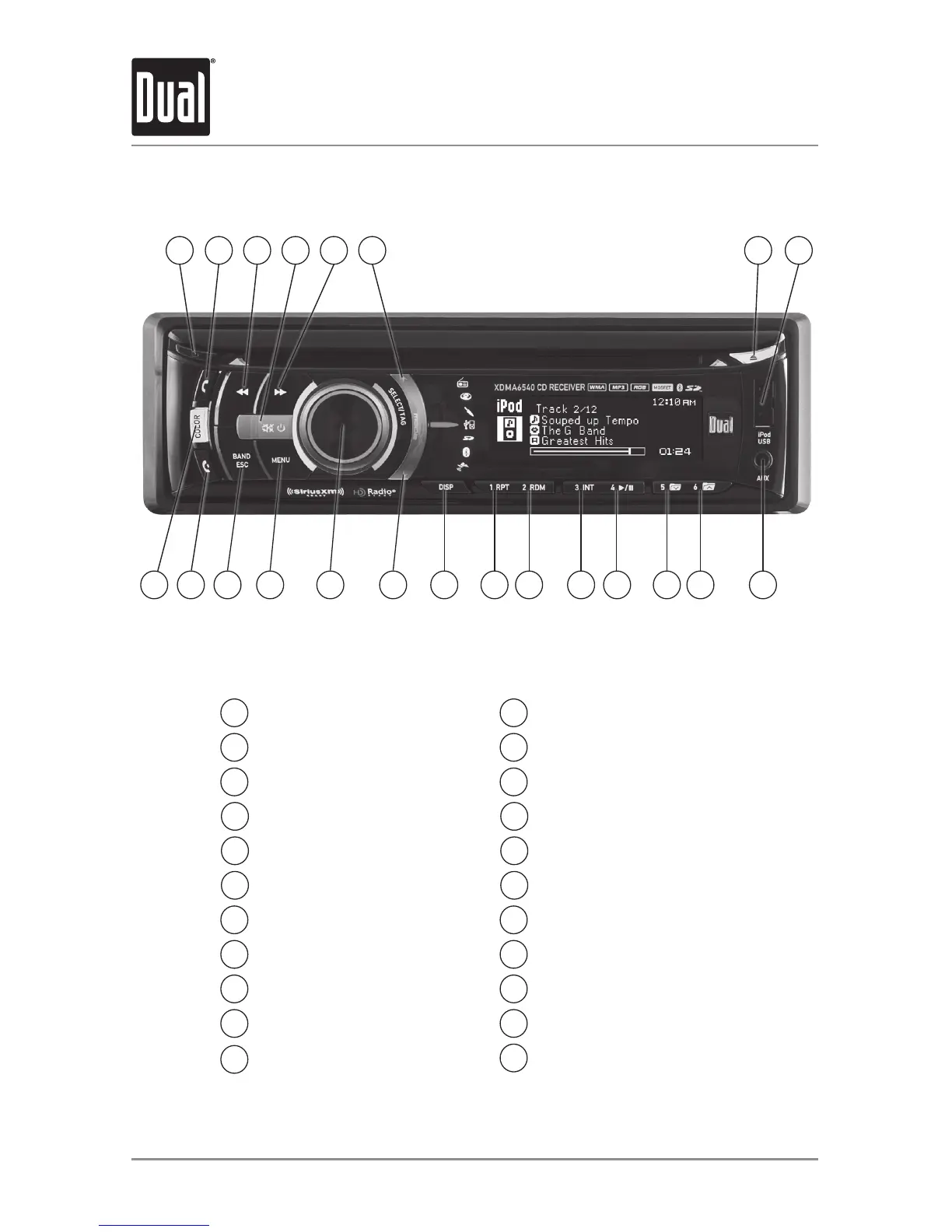

Control Locations - Receiver
1 2 3 4 5 6 7 8
2122
Preset4/Play/Pause
Preset3/Intro
Preset2/Random
Preset1/Repeat
Display
ModeDown
Volumeknob/Select/Tag
Menu
Band/Escape
BluetoothEndCall
Color
Release
BluetoothTalk
Tune/TrackDown
Mute/Power
Tune/TrackUp
ModeUp
CDEject
USBPort
AuxiliaryInput
Preset6/FolderUp
Preset5/FolderDown
1 12
2 13
3 14
4 15
5 16
6 17
7 18
8 19
9
10
11
20
21
22
16 15 14 13 12 11 10171920 18 9
