Adjusting the position of the gearchange
pedal and rear brake pedal
The position of the gearchange and rear brake pedals
in relation to the footrests can be adjusted to suit the
requirements of the rider.
Adjust the pedals as follows:
Gear change pedal
Hold the linkage (1) and slacken the lock nuts (2) and
(3).
Note
Nut (2) has a left-hand thread.
Fit an open-end wrench to hexagonal element of
linkage (1) and rotate until setting pedal in the desired
position.
Tighten both lock nuts onto linkage.

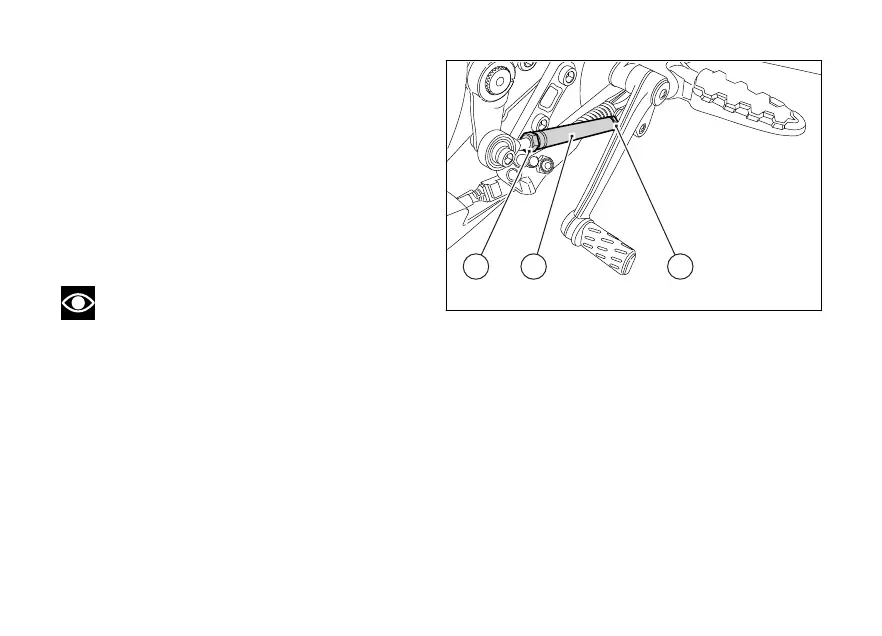

Fig. 110
