Ducati Diavel 2016 - Instrument Panel (Dashboard); Instrument Panel

Instrument panel (Dashboard)

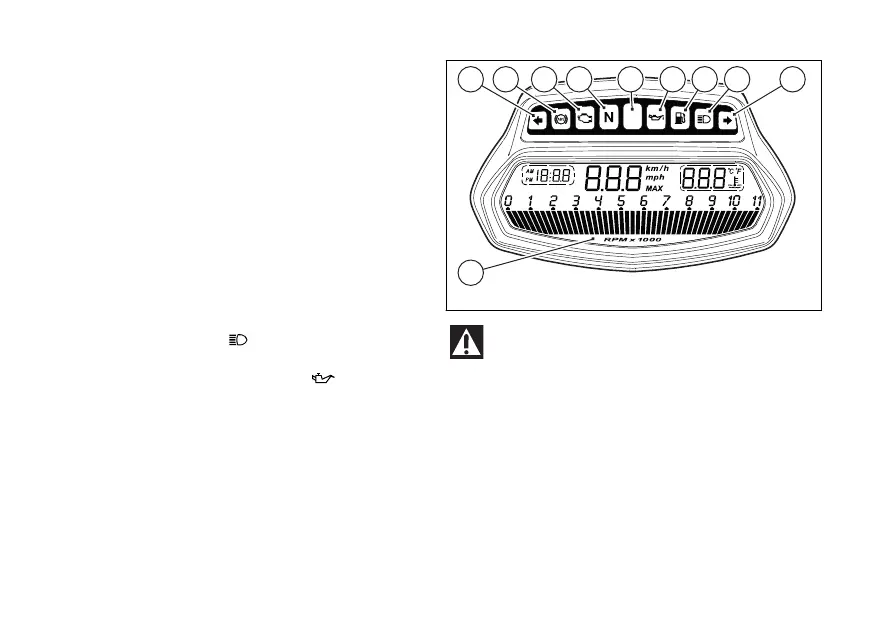

Instrument panel
Instrument panel on handlebar
The instrument panel on handlebar consists of a LCD
display (1) where main indications are shown (speed,
engine rpm, engine coolant temperature and clock).
1) LCD display.
2) NEUTRAL LIGHT N (GREEN).
Comes on when in neutral position.
3) HIGH BEAM LIGHT
(BLUE).
Comes on when high beams are on.
4) ENGINE OIL PRESSURE LIGHT (RED).
Comes on when engine oil pressure is too low. It
must turn on at "Key-On", but must turn OFF a few
seconds after the engine has started. It may shortly
come on when the engine is hot, however, it should
go out as the engine revs up.
Important
If the ENGINE OIL light stays ON, stop the
engine or it may suffer severe damage.
1
6 9 7 2 4 5 3 68
Fig. 3
21
