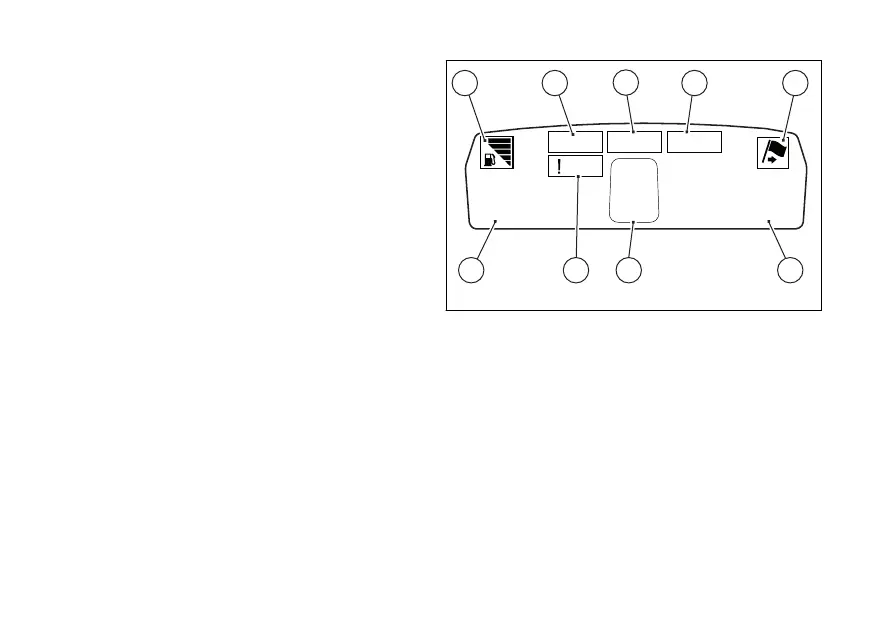

Instrument panel on tank displays trip information (set
riding mode, odometer, fuel consumption, average
speed, etc.) as well as the "setting" menus to be used
to enable and adjust the different functions.
1) Menu 1 (TOT, TRIP1, TRIP2, RANGE).
2) Menu 2 (CONS.AVG., CONS., SPEED AVG, TRIP
TIME and AIR) if active.
3) Gear / Neutral indication.
4) Icon indicating fuel level.
5) Engine setting indication for the currently set
riding mode.
6) Currently set Riding Mode.
7) DTC (Traction Control) level indication for the
currently set riding mode.
8) Icon referring to the function indicated under
Menu 2.
9) Side stand open indication.
10355 16.3
3
TOT
CONS.AVG
KM/L
162 HIGH
GEAR
SPORT 03 DTC
SIDESIDE
STAND
4 5
9
6
7 8
21 3
Fig. 7
