19 Cat's eye
20 Plate
21 Nut
22 Rubber block
23 Spacer
Spare parts catalogue
Plate holder - rear light
Frame
Caution
Bold reference numbers in this section identify parts shown in this exploded view diagram. These parts do not appear
in the figures near the text.

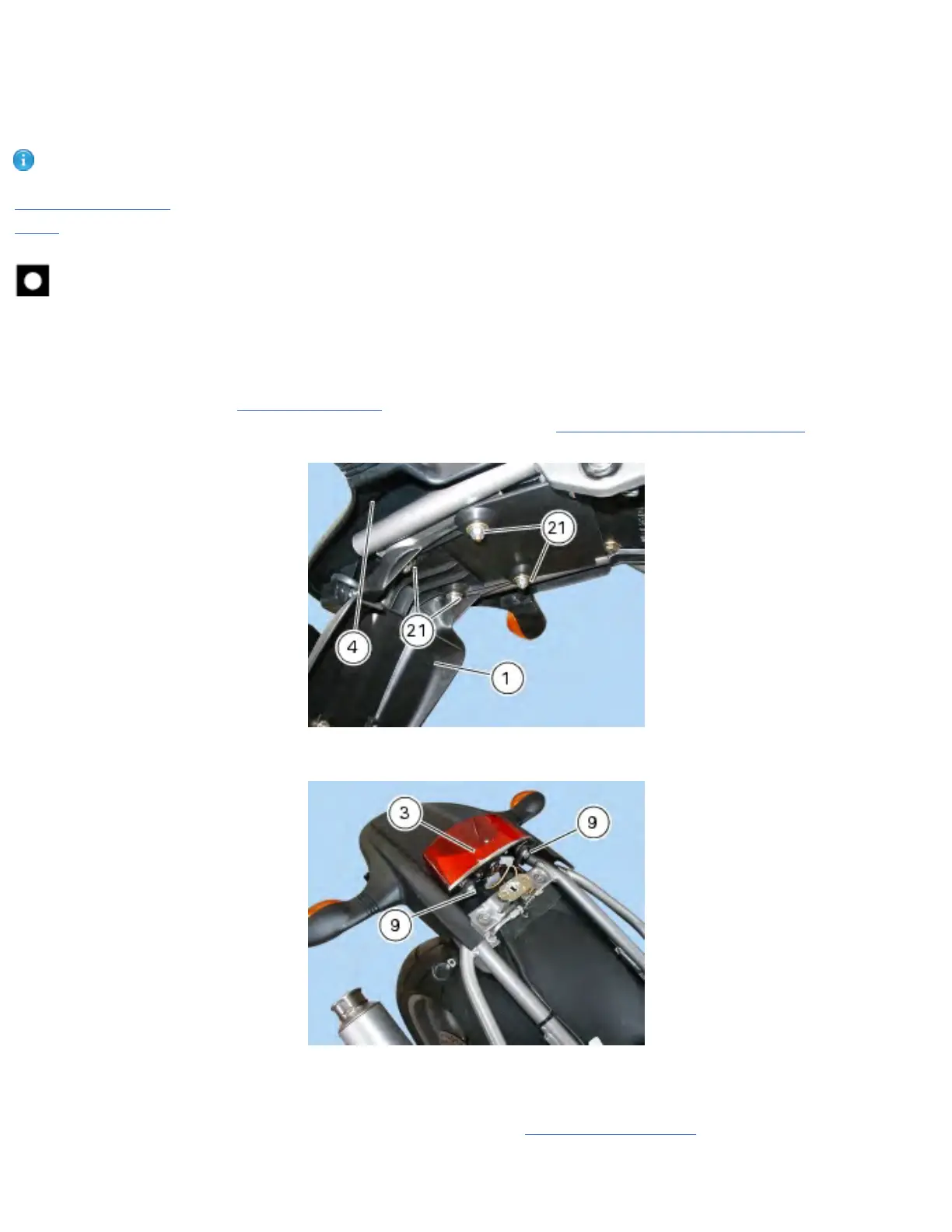

Removing the tail light and number plate holder
Remove the seat (Sect. E 3, Removing the seat).
Disconnect the rear wiring at the main wiring harness end (Sect. P 1,
Arrangement of wiring on frame).
Loosen the nuts (21) securing the number plate holder (1) to the frame and to the tail guard (4).
Collect the rubber blocks (22) and the spacers (23).
Loosen the nuts (9), collect the spacers (8) and rubber blocks (7) and remove the tail light (3).
Refitting the tail light and number plate holder
Installation is a reversal of the removal procedure.
Tighten nuts (9) and nuts (21) to the specified torque (Sect. C 3,
Frame torque settings).
