Spare parts catalogue
Half crankcases
Vertical head
Horizontal head
Caution
Bold reference numbers in this section identify parts shown in this exploded view diagram. These parts do not appear
in the figures near the text.
Disassembling the engine heads
Operations Reference See Section
Remove the throttle body L 6,
Removing the throttle body
Remove the battery mount P 2,
Battery mount
Disconnect oil temperature sensor
from main wiring harness
P 1,
Arrangement of wiring on frame
Remove timing side covers and
timing belts
N 4.2,
Disassembling the timing
system
Note
For reasons of clarity, the figures show an engine block removed from the frame.
Removing the heads
Note
When disassembling the cylinder head, arrange the components in the correct order or mark their positions to refit
them in the original position.

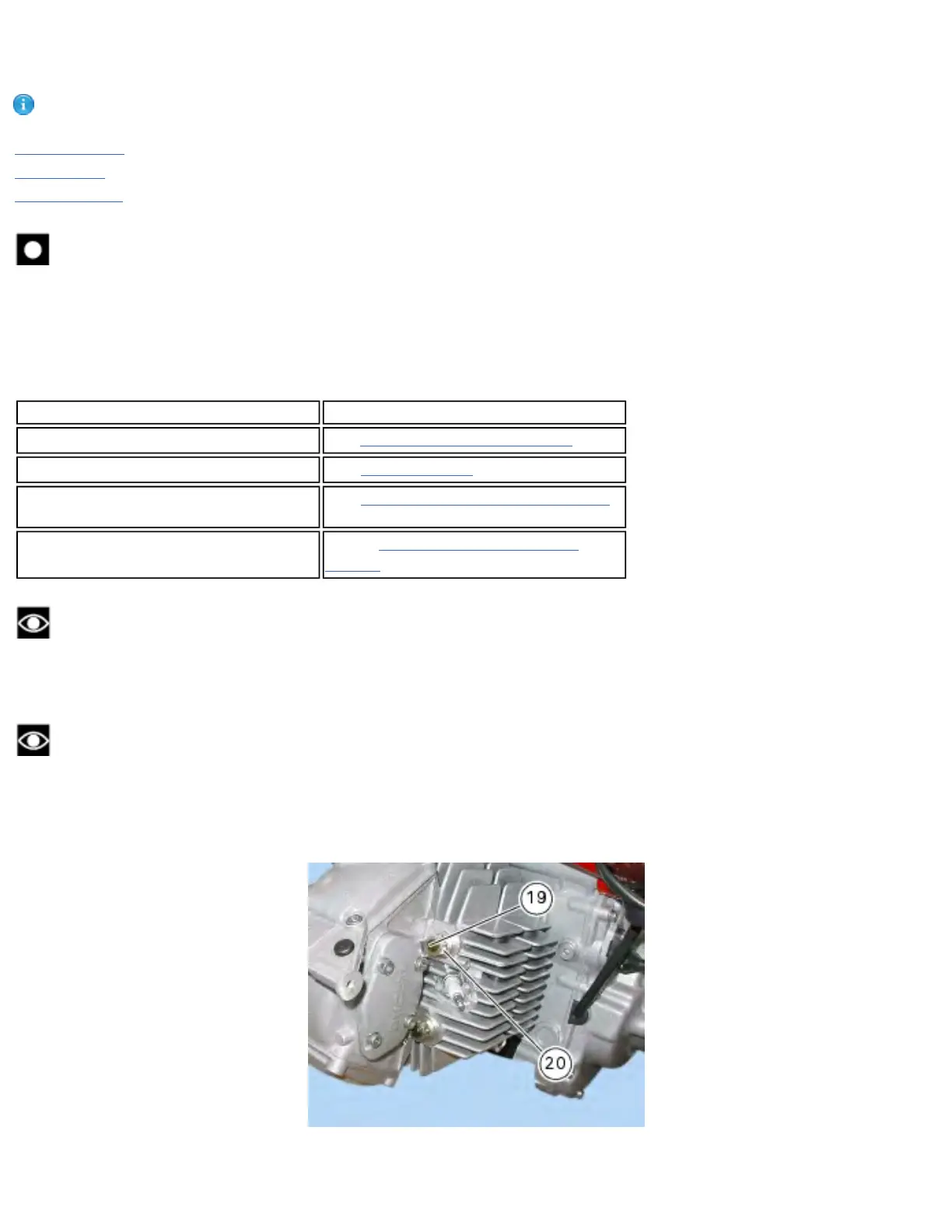

Using tool part no. 88713.2676 undo the nuts (19) on the head stud bolts.
Remove the nuts (19) and the special washers (20) positioned between nut and head.
