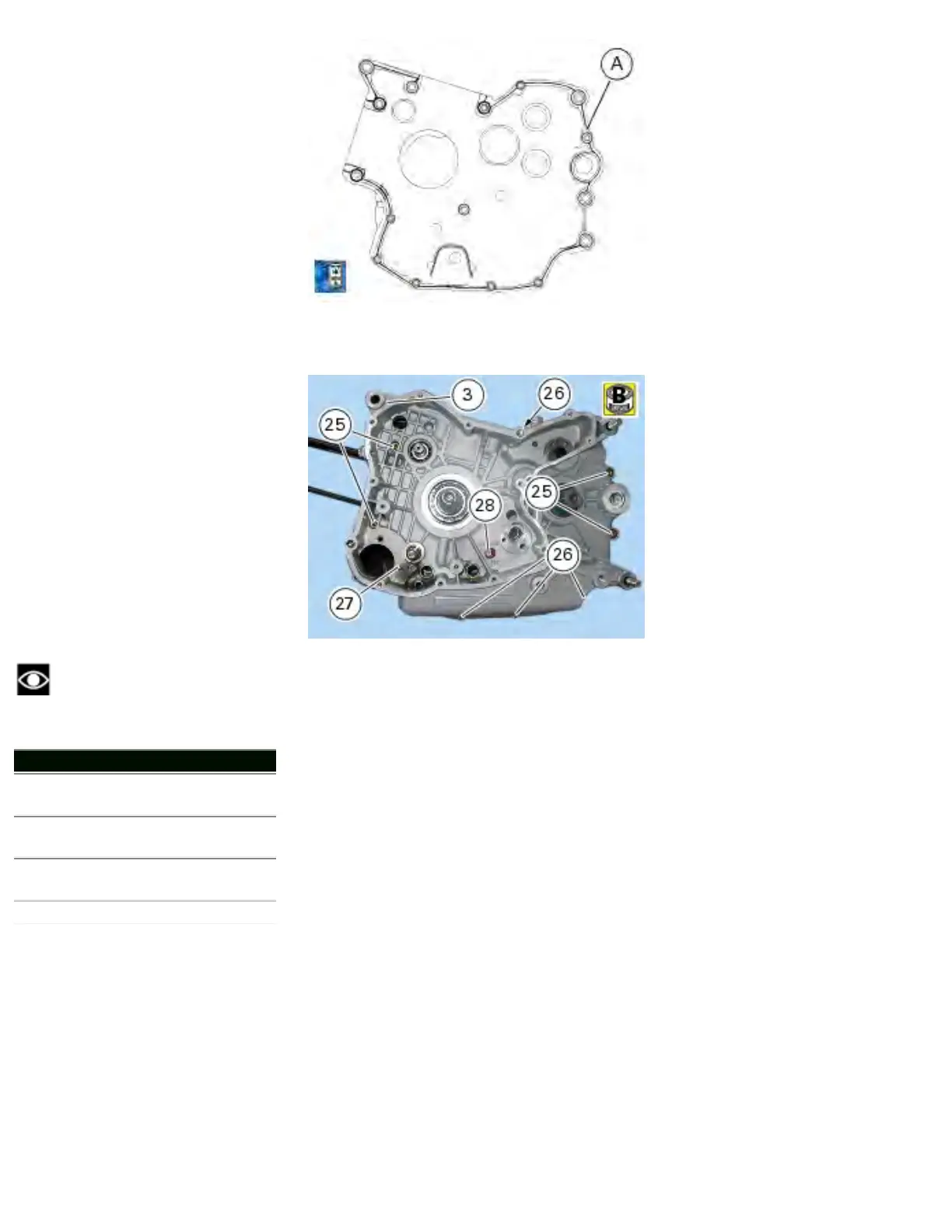

Match the casings (3) and (16). Tap the area around the shafts with a plastic hammer, if necessary.
Start the jointing screws into their holes on the generator-side casing (3). The screws are not all the same length, be
sure to position them correctly.
Note
Apply recommended grease when refitting drilled screw (28).
Ref. Qty. Description
25 6 M8x75 mm
screws
28 1 M8x75 mm
drilled screw
26 5 M6x35 mm
screws
27 1 M6x75 mm screw
Progressively tighten the jointing screws all the way in. Begin with the larger diameter (M8) screws.
Fit two M8 screws (29) to clutch-side casing (16).
