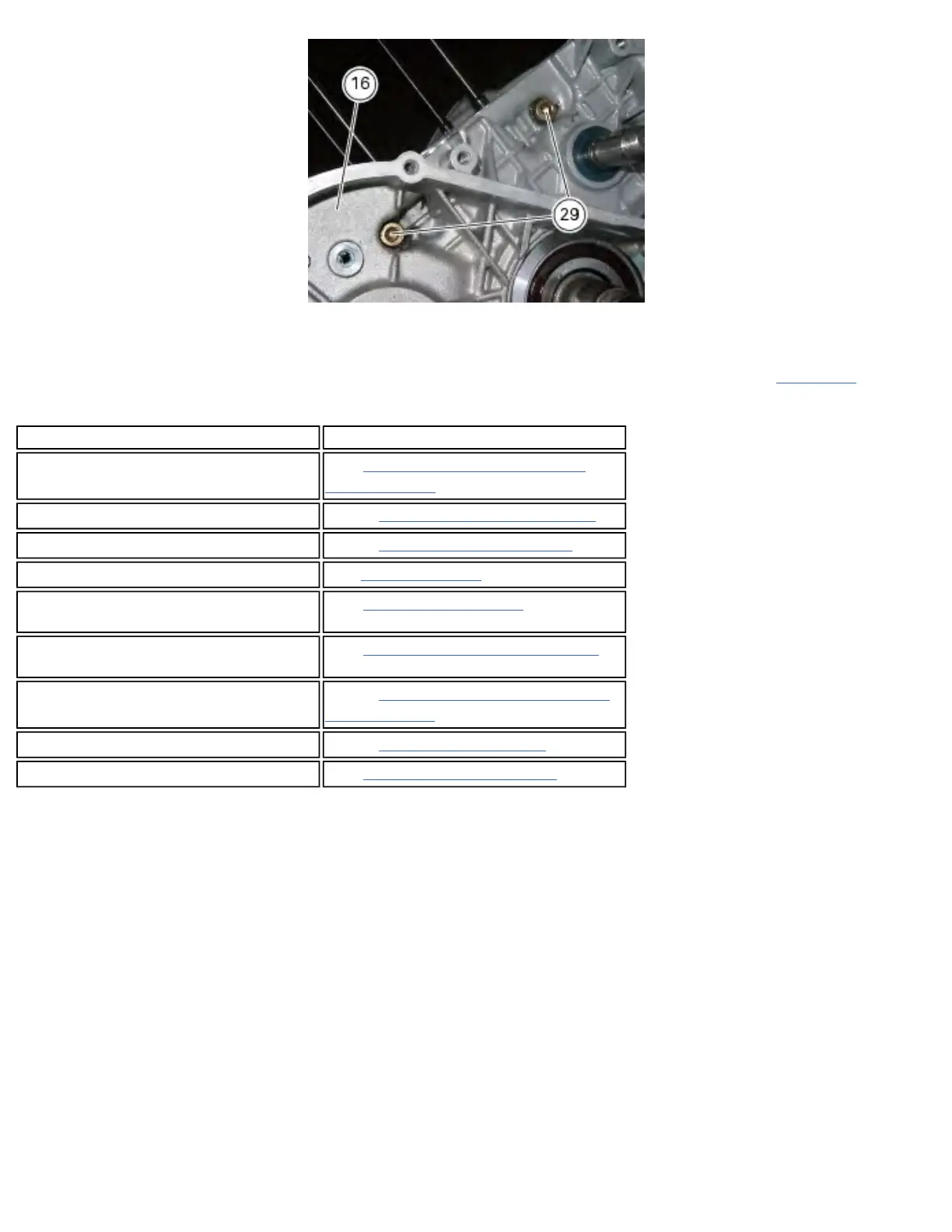

Tighten all screws to the specified torque. Begin with the larger diameter screws.
Check that crankshaft rotates with a certain amount of interference in the main bearings. Crankshaft must have a pre-
load of 0.15 - 0.20 mm. Check also that all assembled parts can rotate or move correctly.
Fit oil seal (11) and spacer with O-ring on gearbox secondary shaft as described under Sect. G 8,
Final drive.
Operations Reference See Section
Refit mesh filter D 4,
Changing the engine oil and
filter cartridge
Refit the complete clutch unit N 6.1,
Reassembling the APTC unit
Refit the clutch-side cover N 6.2,
Refitting the clutch cover
Refit engine ignition assembly P 3,
Electric starting
Refit the generator-side cover and
the complete generator
N 8,
Flywheel - generator
Refit the complete cylinder / piston
assembly
N 5,
Refitting cylinder / piston assy
Refit complete head assembly and
timing system parts
N 4.2,
Cylinder heads: side covers /
timing system
Refit the lubrication system N 2.1,
Refitting the oil pump
Refit engine to frame N 1,
Reassembling the engine
