Start from this position and turn the adjuster anti-
clockwise while counting the number of clicks, which
correspond to position 1, 2 and so forth.
The STANDARD factory settings are as follows:
1100S
compression: 9 clicks;
rebound: 12 clicks.
Spring preload: 10 mm (10 turns, from fully unscrewed,
1turn = 1mm).
To change the preload on the inner spring for each fork leg,
turn the adjuster with the hex end (2, fig. 31.1) with a 22 mm
hex spanner.
1100
compression: 1 and a half turns;
rebound: 2 turns.
Spring preload: 6 mm (6 turns from fully open,
1turn = 1mm).
To change the spring preload for each fork leg, turn the
adjuster (2, fig. 31.2) with a 22 mm hex wrench.
The preload value (A, fig. 31.2) adjustment range is 25 to
10 mm.
Important
Adjust both fork legs to the same setting.
3

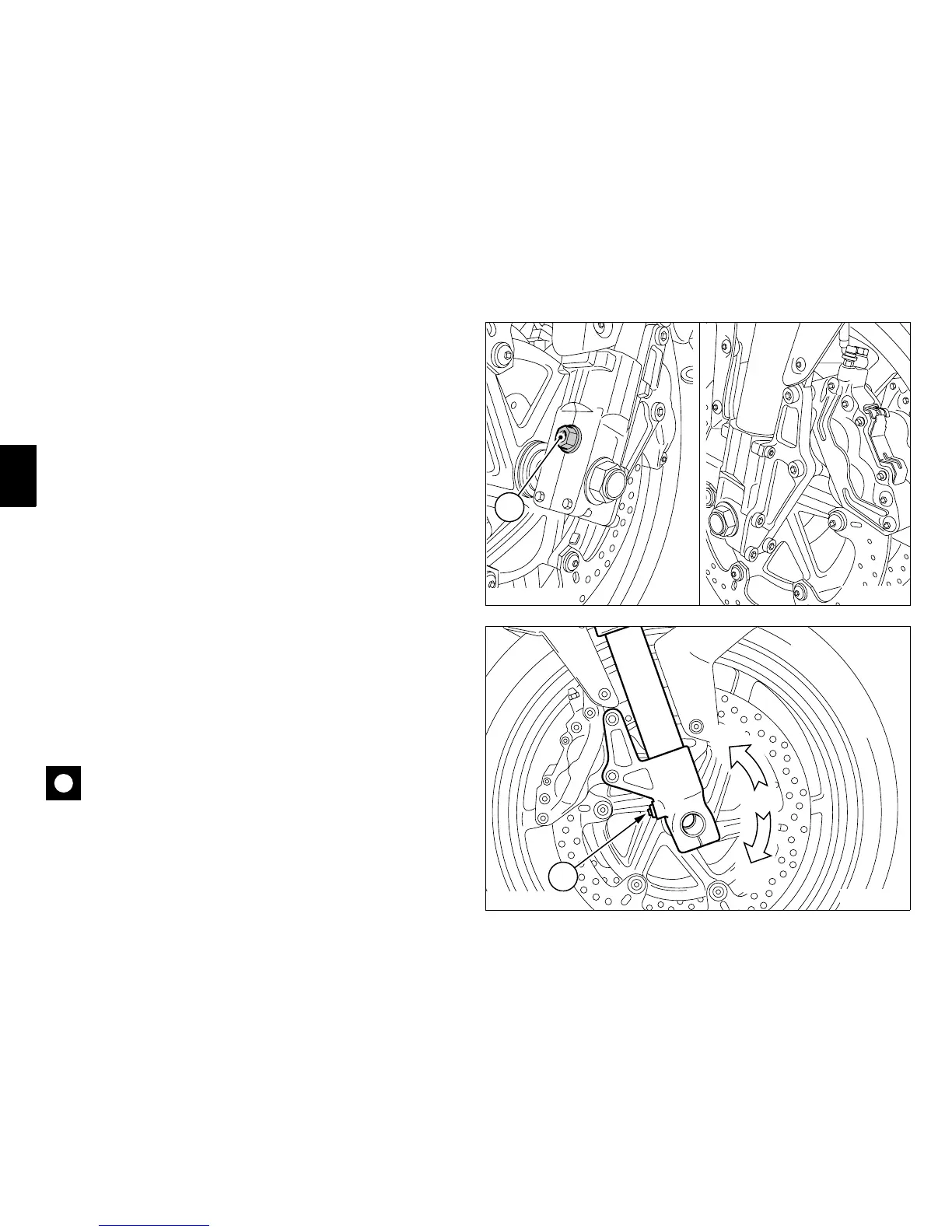

fig. 32.1
1100S
3
S
H
S
H
fig. 32.2
1100
