Front fork adjuster
The front fork can be adjusted in rebound, compression and
preload.
The settings are adjusted by way of external adjuster screws:

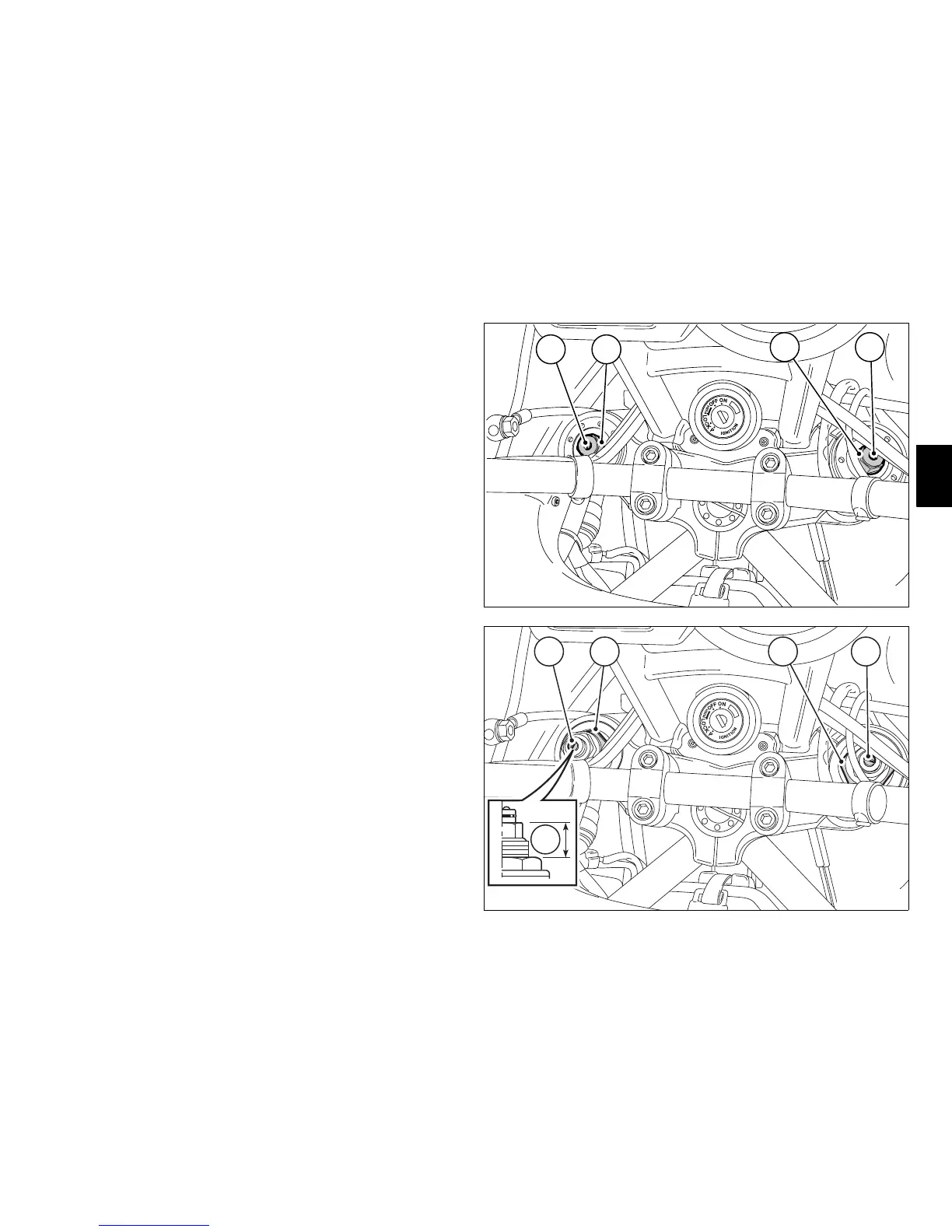

1) to adjust rebound damping (fig. 31.1 and fig. 31.2);
2) to adjust inner spring preload (fig. 31.1 and fig. 31.2);
3) to adjust compression damping (fig. 32.1 and fig. 32.2).
Park the motorcycle in a stable position on its sidestand.
Using a 3 mm Allen key (1100 S) or slot-headed screwdriver
(1100), turn the adjuster (1) located on the top of each
fork leg to adjust the rebound damping.
Using a 3 mm Allen key (1100 S) or slot-headed screwdriver
(1100), turn the adjuster (3, fig. 32.1 and fig. 32.2) located on
the top of each fork leg to adjust the compression damping.
As you turn the adjuster (1), you will hear it click. Each click
corresponds to a setting.
Adjuster (3, fig. 32.1 and fig. 32.2) turns freely to give
continuous damping adjustment. The maximum damping
is obtained with the adjuster screwed in fully to the “0”
position.
1 2
12
fig. 31.1
1100S
1 2 12
A
fig. 31.2
1100
