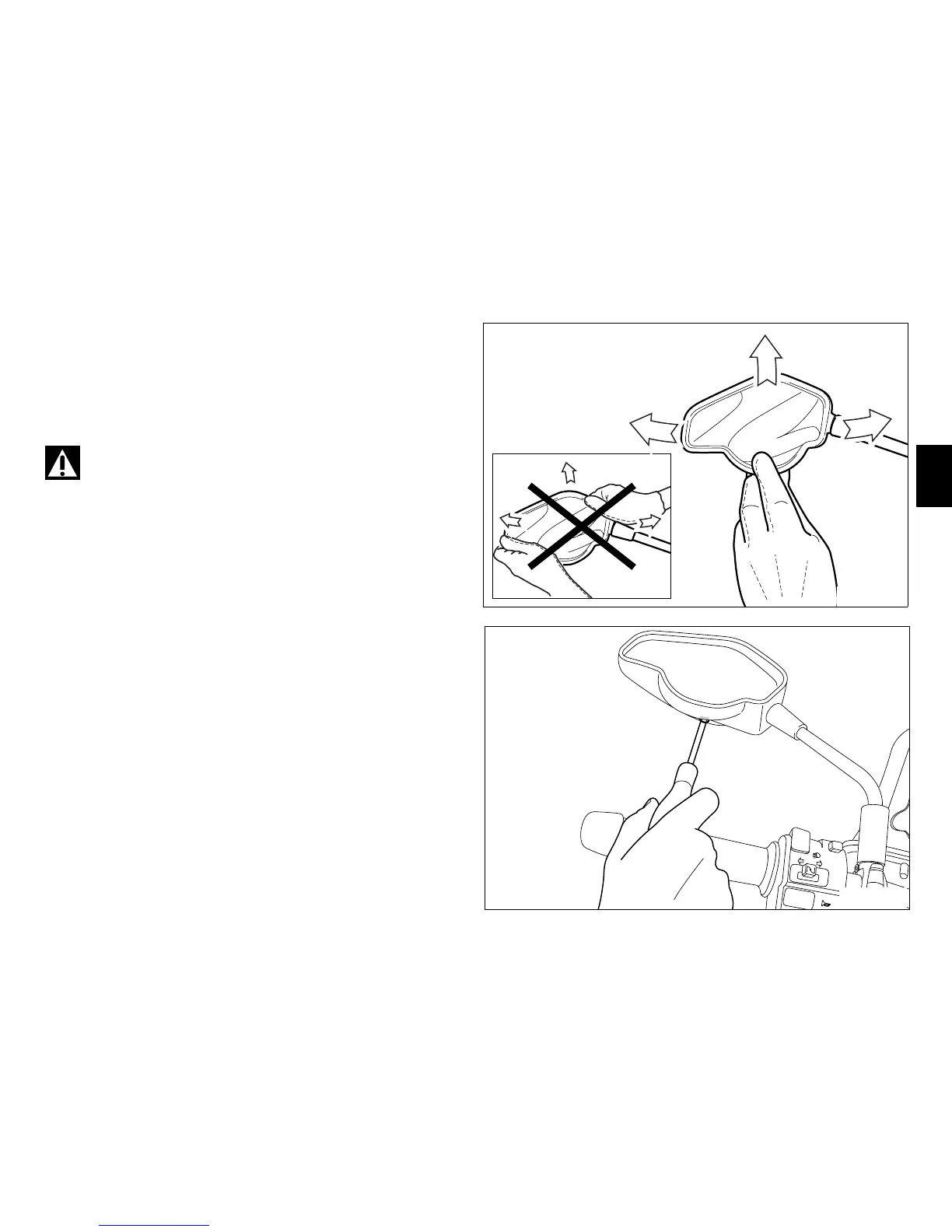

Rear view mirror adjustment
Simply push or pull the outside of the mirrors in the
required direction to obtain optimum visibility (fig. 35.1).
Tighten the screw at the bottom of the mounting to lock
the mirror in the required position (fig. 35.2).
Warning
Never attempt to adjust the position by moving the
whole mirror assembly, as this could break it.
fig. 35.1
fig. 35.2
