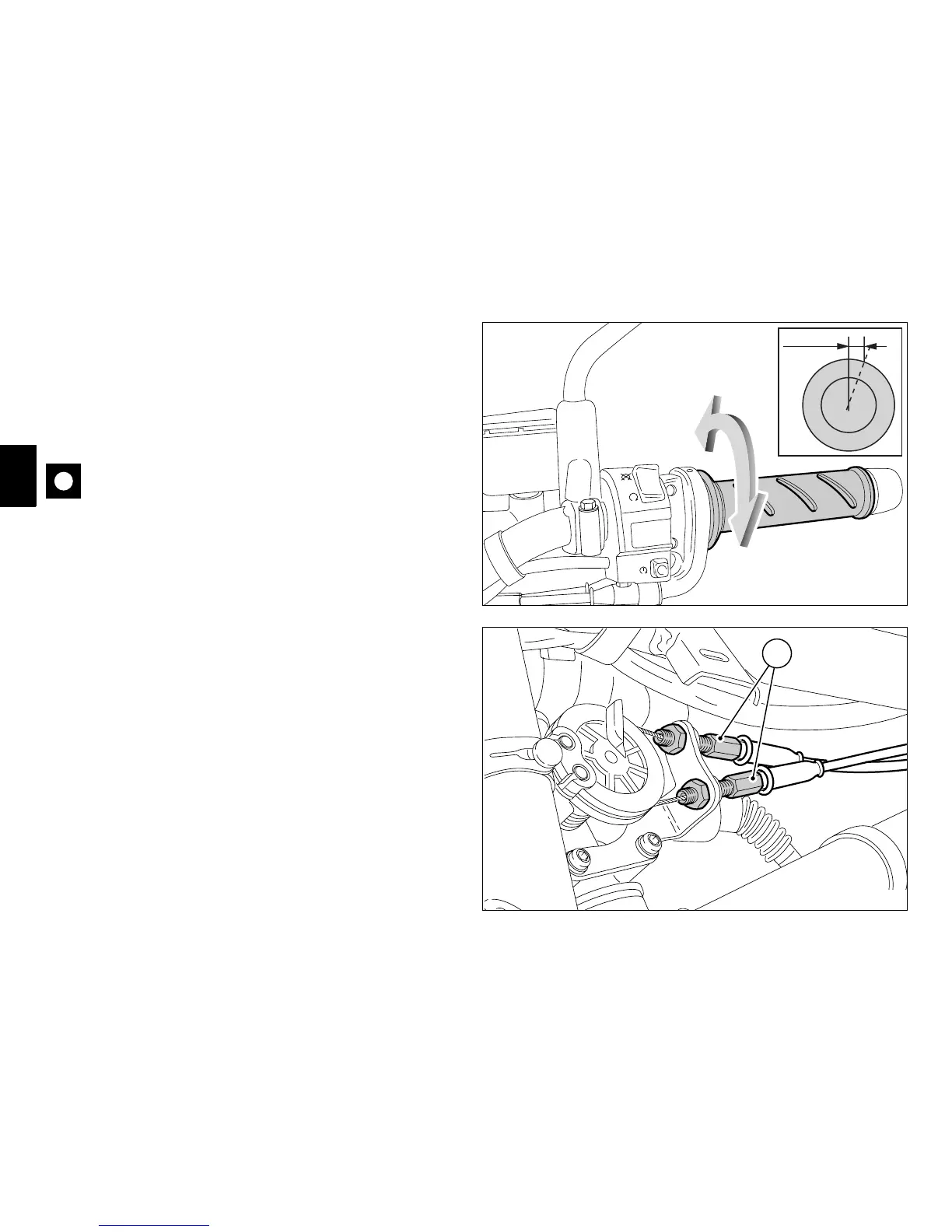

Adjustment of the throttle cable free play
The throttle twistgrip should have free play of 1.5 to 2.0 mm
(fig. 58) (measured in terms of twistgrip rotation) in all
steering positions.
If this is not the case, adjust the cable by means of the
adjusters (1) on the throttle body (fig. 59).
Important
Refer the adjustment of throttle control play to a
Dealer or Authorized Workshop.
1,5 ÷ 2 mm
1,5 ÷ 2 mm
fig. 58
1
fig. 59
