Ducati Multistrada 1200 - LCD Unit Functions

LCD unit functions
Warning
Stop the motorcycle before using the
instrument panel controls. Never operate the
instrument panel controls while riding.

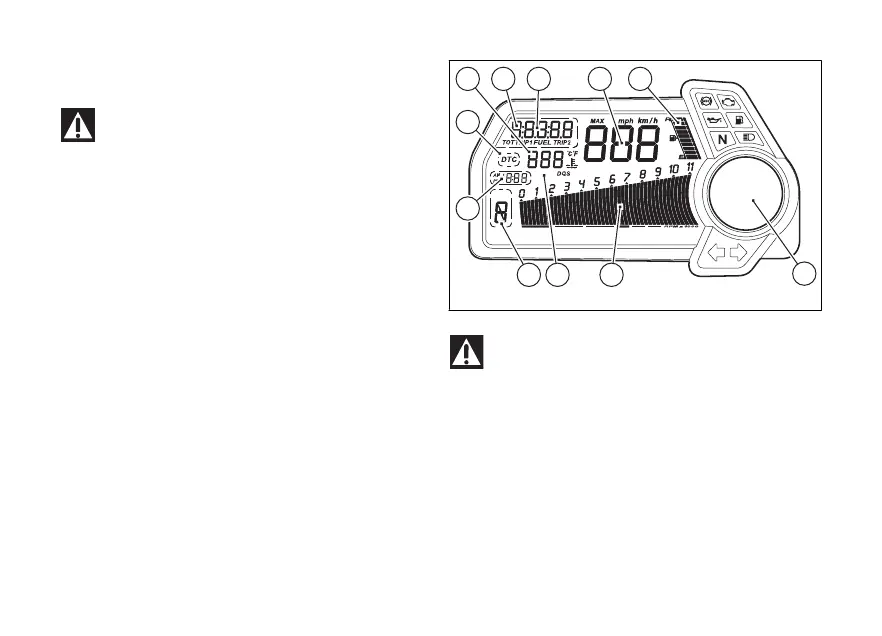

1) SPEEDOMETER.
Gives road speed.
2) ODOMETER.
Gives total distance covered.
3) TRIP METER.
Indicates distance travelled since the meters (TRIP 1
and TRIP 2) were last reset.
4) CLOCK.
5) FUEL LEVEL.
6) ENGINE RPM INDICATOR (RPM).
7) LAP TIME, MAXIMUM SPEED AND MAXIMUM
RPM RECORDING (LAP).
8) DTC INDICATOR ACTIVE/NOT ACTIVE.
9) GEAR INDICATOR.
10) WATER TEMPERATURE INDICATOR.
This function indicates engine coolant temperature.
GEAR
DDA
LAP
679
11
1 52 310
8
4
Fig. 5
Important
Never use the vehicle when the temperature
reaches max. value or the engine might damage.
11) LCD Dot-Matrix.
