Instrument panel diagnosis
This function identifies any abnormal vehicle
behaviours. The instrument panel activates any
abnormal vehicle behaviours in real time (ERRORS).
At Key-On (at the end of the check) one or more
“ERRORS” are displayed (only if they are active). If
an “error” is activated during operation, the current
indication on the round “Dot-Matrix” display (B) will
switch automatically to the indicator. If there are
multiple errors, they will scroll automatically every 3
seconds. The “Engine/vehicle diagnosis - EOBD”
light always turns on when one or more errors are
activated. When one or more errors are active, it is
possible to go to other functions by pushing the
button (2). Possible errors are listed in the table
below.

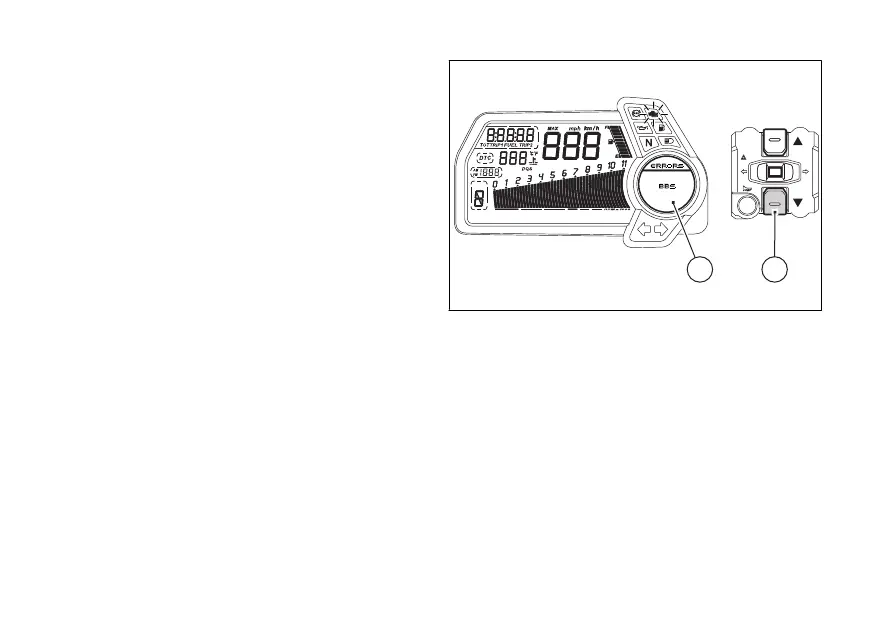

Fig. 28
