Duke FBB-NC-120 - Broiler Assembly

9
Installation and Operation of Flexible Batch Broiler

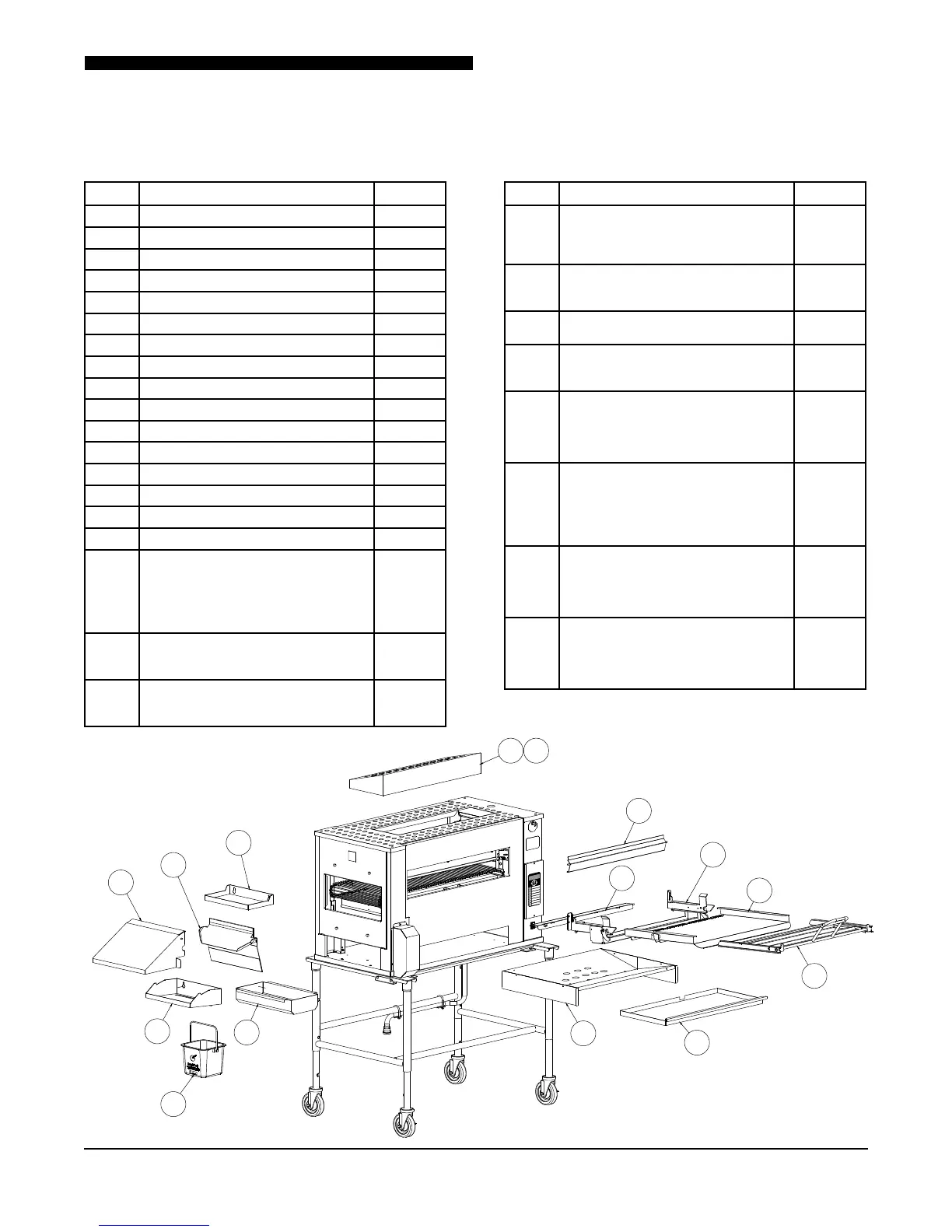

C. BROILER ASSEMBLY
Beforeassemblingandinstallingthebroiler,pleasecheck
to make sure that all necessary parts are present.
12
13 15
11
10
9
8
7
6
5
4
3
2
1
16
ITEM PART NAME PT.NO.
1 PRODUCT PAN SHELF 175353
2 DISCHARGE CHUTE 175340
3 DISCHARGE HOOD 175778
4 DISCHARGE PAN HOLDER 175358
5 DISCHARGE GREASE PAN 175357
6 “V” GREASE PAN 176397
7 MAIN GREASE PAN 176398
8 LOADER 175444
9 LOADER TRAY 175430
10 LOADER BRACKET 175438
11 DOOR 175429
12 LOADER RAMP 175741
13 IMPEDANCE PAN 175226
14 CATALYST (OPTIONAL) 175480
15 CATALYST GUARD (OPTIONAL) 175482
16 SANITATION PAIL 175842
17 KIT,CLEANINGTOOLS/
INSTALLATION TOOL CLEANING
– LOWER BURNER FLAME ROD
TUBECLEANERBRUSH,TUBE
CLEANER TOOL– LOADER INSTALL
WRENCH,ALLEN,3/16”
175700
18 KIT–BROILERSVC.PARTS,NAT.
GAS W/ CONTROLLER W/COOK
CHAIN (OPTIONAL)
600310
19 KIT–BROILERSVC.PARTS,
PROPANE,W/CONTROLLERW/
COOK CHAIN (OPTIONAL)
600314
ITEM PART NAME PT.NO.
20 KIT–USERREPLACEABLE,
BOTTOMBURNER,FLAME
ARRESTOR,LOADER&BURNER
SHIELD (OPTIONAL)
600311
21 KIT–USERREPLACEABLE,
BOTTOM BURNER & FLAME
ARRESTOR (OPTIONAL)
600312
22 KIT – GAS HOSE CONNECTOR
ASSEMBLY (OPTIONAL)
175690
23 KIT – HIGH SUPPLY GAS
PRESSURE REGULATOR
(OPTIONAL)
175689
24 KIT–BROILERSVC.PARTS,NAT.
GAS,W/CONTROLLERW/COOK
CHAIN(OPTIONAL),ADJUSTABLE
– FOR HIGH ALTITUDE &
INTERNATIONAL UNITS
600331
25 KIT–USERREPLACEABLE,
BOTTOMBURNER,FLAME
ARRESTOR,LOADER&BURNER
SHIELD (OPTIONAL) – FOR HIGH
ALTITUDE & INTERNATIONAL
UNITS
600332
26 KIT–USERREPLACEABLE,
BOTTOM BURNER & FLAME
ARRESTOR (OPTIONAL) – FOR
HIGH ALTITUDE & INTERNATIONAL
UNITS
600333
27 KIT–BROILERSVC.PARTS,
PROPANE,W/CONTROLLERW/
COOK CHAIN (OPTIONAL) – FOR
HIGH ALTITUDE & INTERNATIONAL
UNITS
600334
