24
4.6 E
LECTRICAL HOOK UP BETWEEN THE TWO PILLARS
To make the connection between the two pillars, proceed as follows:
• P
lace the right-hand pillar in its definitive position and fix it to the floor;
• Place the left-hand pillar in its definitive position and fix it to the floor;

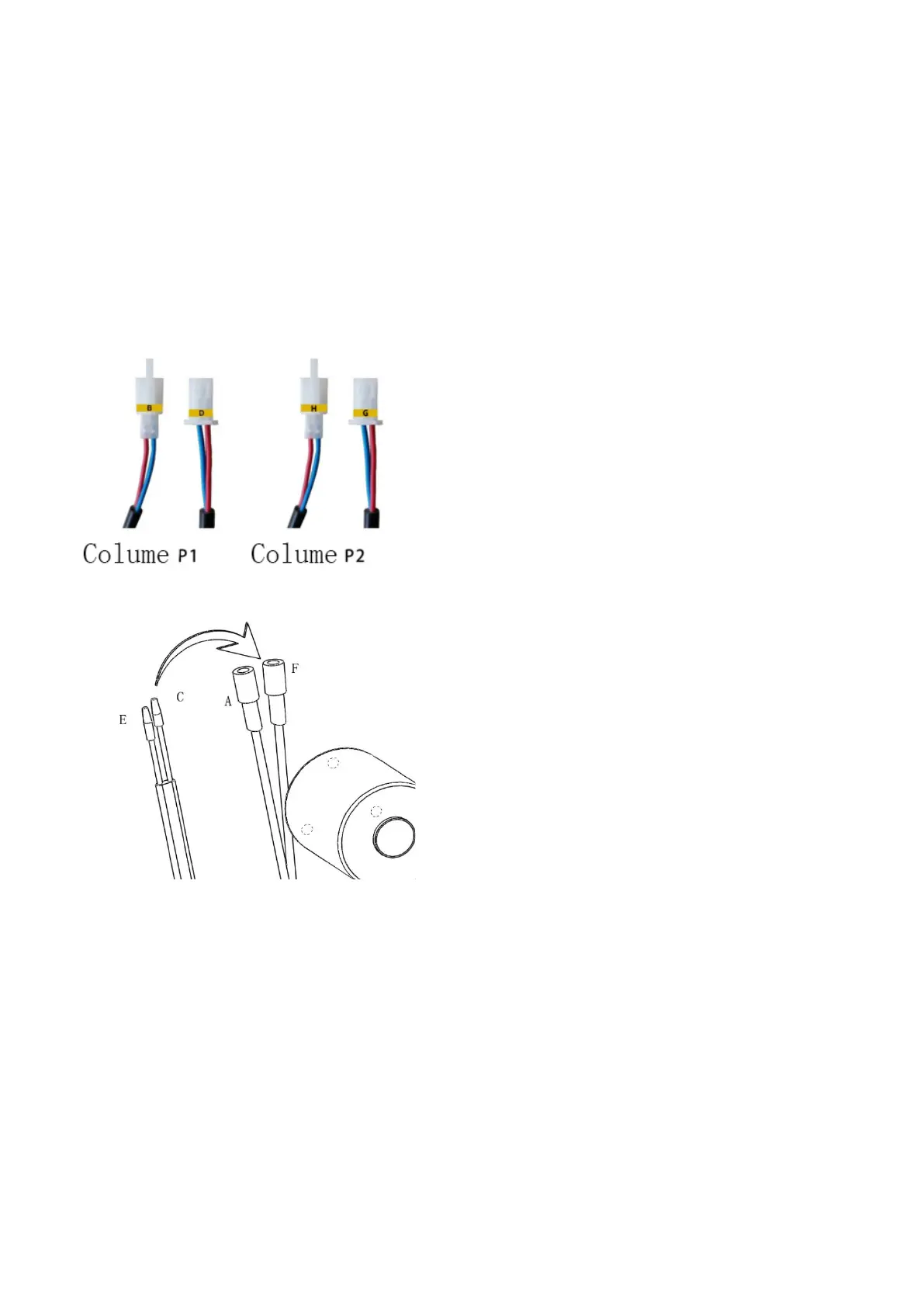

• Place the column chain break limit switch cable P2 (H and G) on the left column on the cable duct and connect
it to the P1 chain breaker limit switch cable (B and D) in the right-hand column. (Cables have male/female
connectors cannot go wrong connection.)
• Connect the cable E and cable C from the electromagnetic valve safety lock of both two columns to the
electromagnetic valve connection termainals A and F.
For more information see paragraph 8.1 Column Wiring Diagram
