1.1 LIFT DESCRIPTION

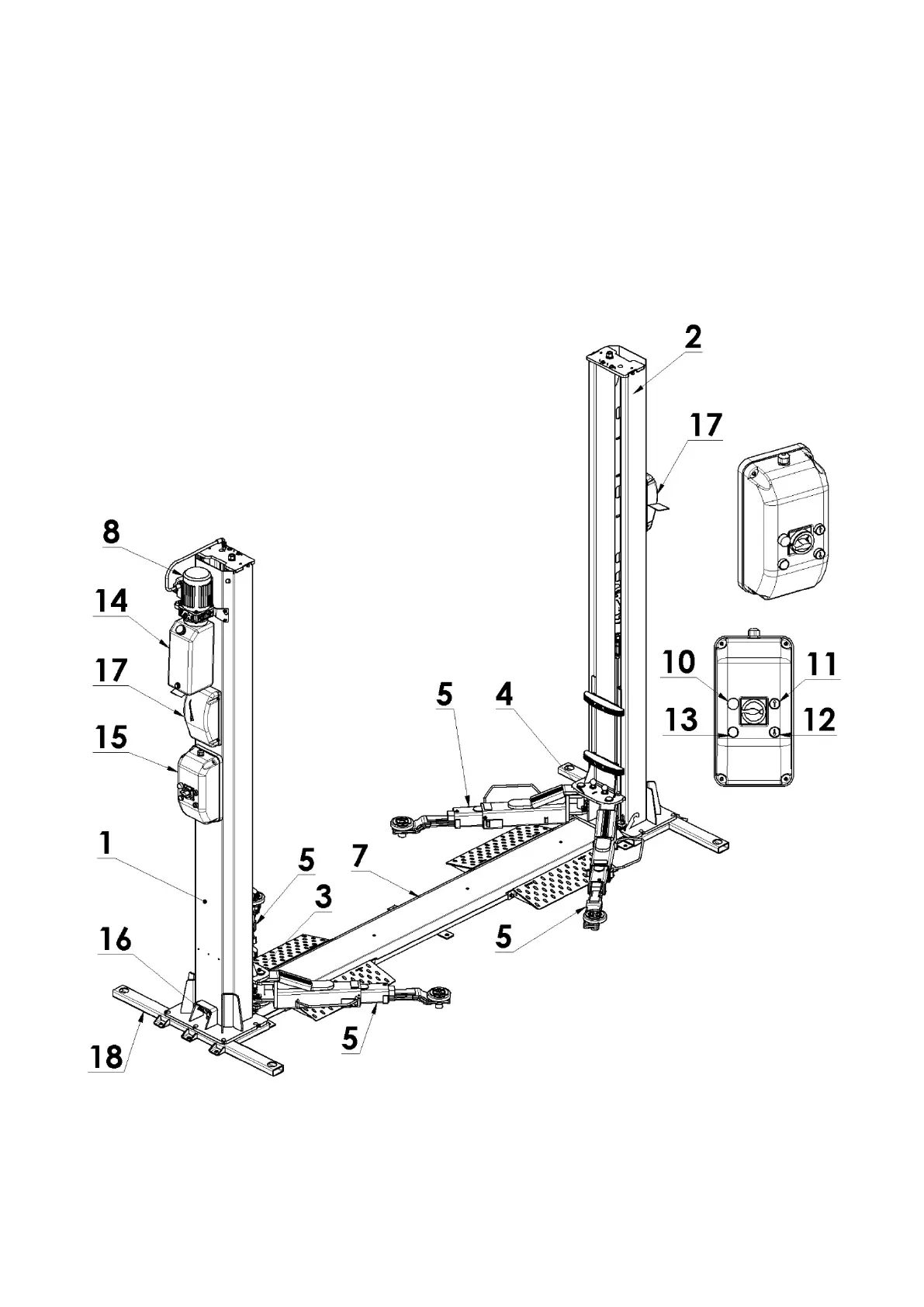

DESCRIPTION OF THE LIFT
1. P1 Column
2. P2 Column
3. P1 Carriage
4. P2 Carriage
5. 3 Stage long lifting arm
7. Cable passage cover
8. Electric motor
9. Emergency switch
10. Power on light
11. Up push-button
12. Down push-button
13. Safety device push-button
14. Hydraulic power unit
15. Control panel
16. Chain breaking safety limit switch
17. Electromagnet for unlocking mechanical
safety devices
18 Reinforce base mounting frame
