1.5 MACHINE ASSEMBLY

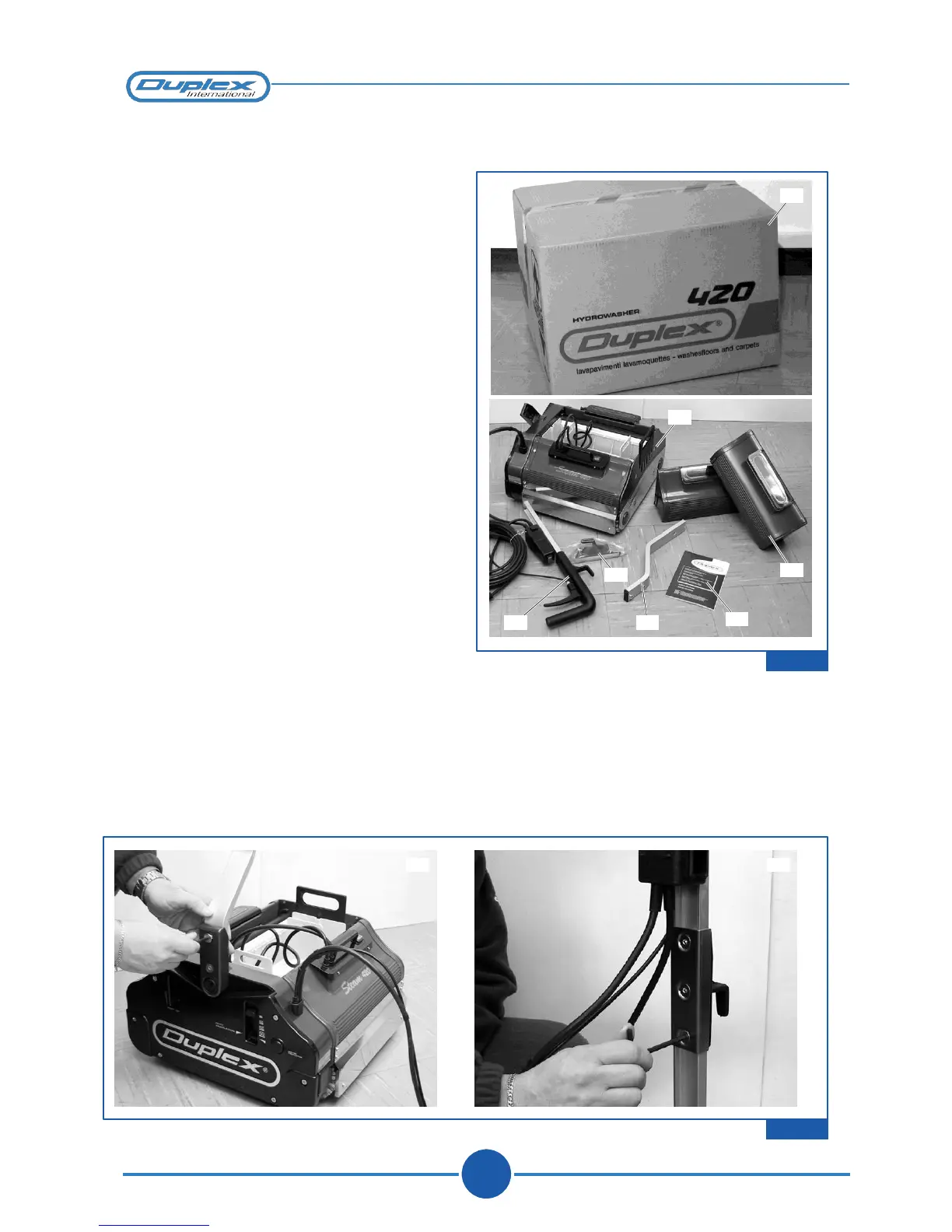

The machine is shipped packed in cardboard
boxes (1). 1
On receipt of the package, the user must carry
out the assembly of the parts which due to their
overall dimensions are unassembled before
being shipped.
The package contains the following:
• Machine (2);
• Elbow for handle (3);
2
• Handle (4);
• Connecting casing (5);
• Use and maintenance manual (6);
• Tanks (7);
• Certificate of Compliance.
1.6 ASSEMBLING THE HANDLE
5
7
4 3
6
Figure 1.4
1.
Insert the elbow of the handle into the housing of the jointed elbow.
2.
Tighten the two screws with the allen key supplied and tighten well (A);
3.
Assemble the handgrip of the handle by pushing it through the connecting casing and make
sure to point the screws inward switch the cable-holder facing towards the bottom.
4.
Screw up the three screws with the same allen key supplied (B)
A B
Figure
1.5
