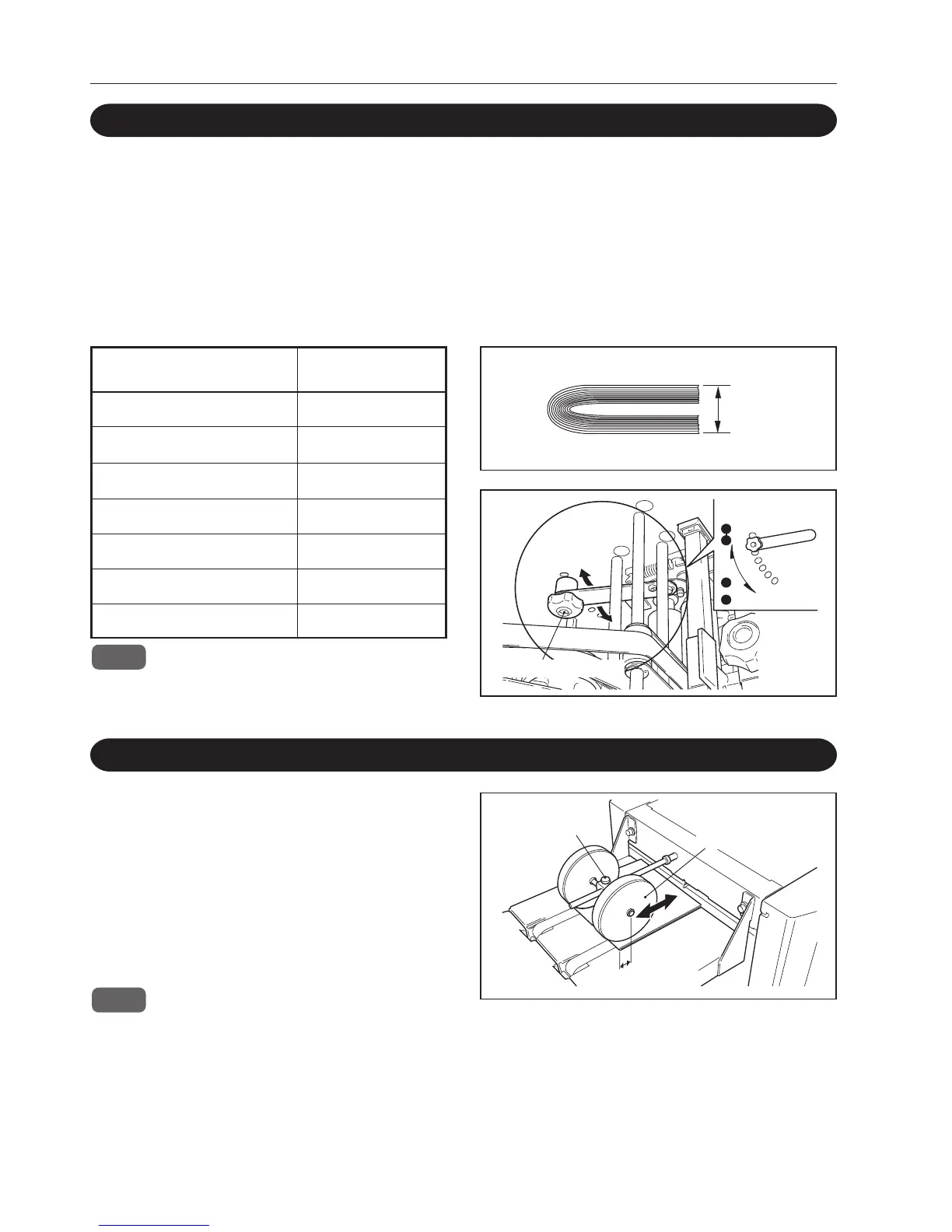

5-2. Adjusting the Roller Clearance
If folding operations are to be performed, roller clearance adjustment is required. This is to prevent
the cover of the booklet from damages in binding operations and to prevent paper jamming during
conveyance at the folding section.
Set the clearance adjusting lever to an appropriate position shown in the following table according
to the thickness of the booklet.
The clearance adjusting lever is provided at the left and right sides. Be sure to set the same
position number for both the left and right sides.
Thickness of
One Booklet
Lever Position
No.
Below 1.7 mm (0.07")
1.5 to 2.7 mm (0.06" to 0.11")
2.5 to 3.5 mm (0.10" to 0.14")
3.2 to 4.0 mm (0.13" to 0.16")
3.7 to 4.5 mm (0.15" to 0.18")
4.2 to 5.0 mm (0.17" to 0.20")
Above 4.7 mm (0.19")
1
2
3
4
5
6
7
NOTE : Since conditions change according to the
paper quality, the setting position of the lever
may differ from the above table.
5. BINDING
Clearance adjusting lever
5-3. Setting the Position of the Paper Guide Roller
Adjust so that the lead edge of the ejected
paper is slightly beyond the center of the paper
guide roller as follows.
q Loosen the set screw.
w Adjust the position of the roller so that the distance from
the lead edge of the paper ejected to the center of the roller
is about 30 mm (1.18").
e Tighten the set screw to fix the roller.
NOTE : As above standard position will differ
according to the paper size, quality, and
number of sheets, in such cases, set the roller
accordingly.
If not at the appropriate position, paper may
not be ejected smoothly.
Booklet
thickness
Set screw
Paper guide roller
About 30 mm
(1.18")
