9-2. Replacing the Staple Cartridge

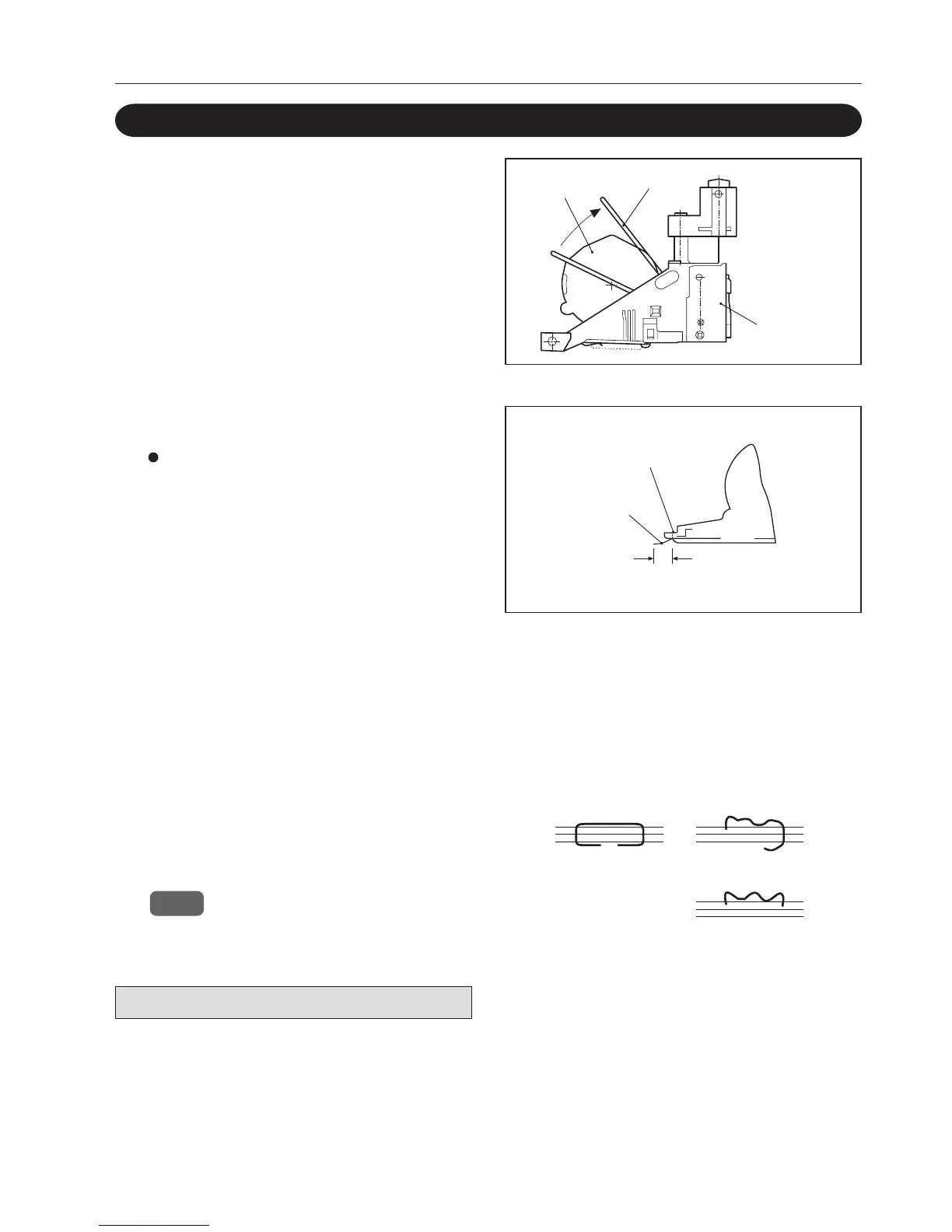

Lift up the lock lever.
Shake the cartridge sideways gently, and
pull out from the stapler head.
Replace the cartridge.
Before replacing, pull out the staple about 20 mm
(0.79") from the cartridge, and cut off the staple at the
staple tear line of the stapler.
Cartridge
Lock lever
Stapler head
Staple tear line
Staple
20 mm (0.79")
1
2
3
9. DEALING WITH THE ERROR MESSAGE
Push in the cartridge properly into the stapler head and push down the lock lever completely.
After replacing, about the first four sets will not be stapled. During this time, feed paper
manually.
4
5
Check that the first set has been stapled
properly.
If not stapled properly, refer to “5-1.
Setting the Staple Position”.
NOTE : Should not start operating the unit with
the cartridge removed as the stapler
head will be damaged.
6
<Correct> <Incorrect>
A new cartridge can staple about 5,000 times.
