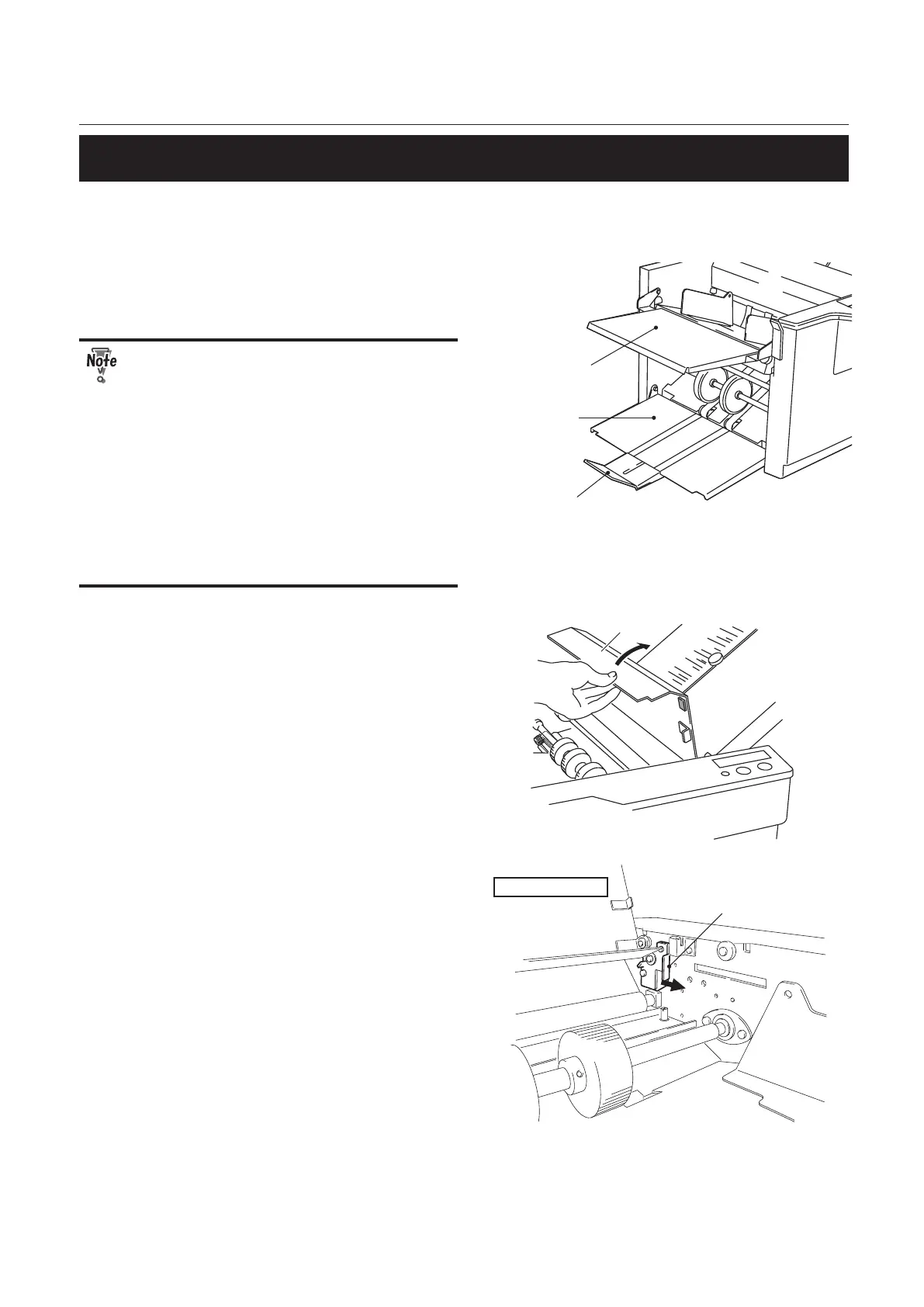

Chapter 1 BEFORE OPERATION
2-3. Locking the Bearing Support Levers
The bearing support levers are released at shipment to prevent the rubber roll from becoming
distorted. After removing the press release levers, be sure to lock the bearing.
Support paper
feed plate
Paper receiving stopper
Paper
receiving
tray
1
Unfold the paper receiving tray.
2
Unfold the support paper feed plate.
• If you unfold the support paper feed
plate before unfolding the paper re-
ceiving tray, the paper receiving stop-
per may be damaged. Make sure that
you unfold the paper receiving tray
rst.
• The paper receiving tray and sup-
port paper feed plate are foldable so
that you can easily move or store the
machine. Make sure that you unfold
them before using the machine.
Top cover
3
Open the top cover.
Bearing support lever
Operator’s side
4
Turn the bearing support lever on the
operator's side in the direction of the
arrow.
The bearing will be locked.
To Next Page
