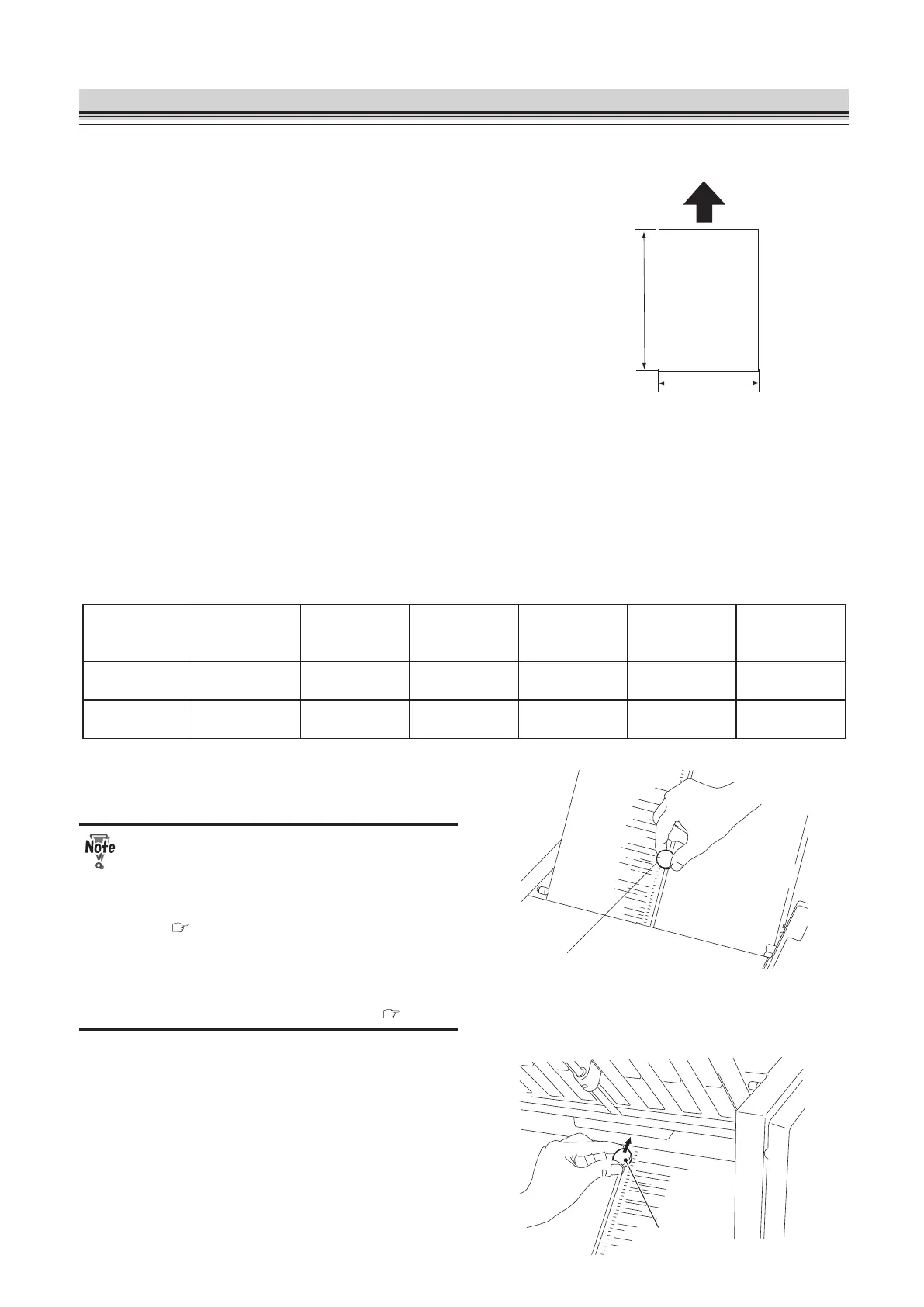

3-15
Chapter 3 ADVANCED OPERATION
3. Standard Folding of Non-Standard Size Paper
Paper other than the six standard size paper are called non-standard size paper. The paper size that
can be used as non-standard size paper is as follows.
Length(L):
182 to 432 mm/
7.00 to 17.00 inches
Paper feed
direction
Width:128 to 297 mm/
5.00 to 11.00 inches
Maximum: 297 (W) x 432 (L) mm/11.00 (W) x
17.00 (L) inches
Minimum: 128 (W) x 182 (L) mm/5.00 (W) x
7.00 (L) inches
* Minimum for single fold: 90 (W) x 135 (L)
mm/3.54 (W) x 5.31 (L) inches
The following describes the single folding procedures
of 300 mm/12.00 inches long paper as an example.
1
Measure the length (L).
2
Refer to Table of Rough Adjustment
Knob Positions to check the appro-
priate positions of rst and second
folding plates.
Table of Rough Adjustment Knob Positions
L=Paper length
Folding
Pattern
Single Fold Double Fold Irregular
Accordion
Fold
Letter Fold Accordion
Fold
Gate Fold
First Folding
Plate
L/2 L/2 3L//4 L/3 2L/3 L/4
Second
Folding Plate
Upper End L/4 L/4 L/3 L/3 L/2
Rough adjustment knob
1) According to the table above, move the
rough adjustment knob to 150 mm/6.00
inches (300÷2/12.00÷2).
● The rough adjustment knob cannot
be turned either clockwise or coun-
terclockwise. Make sure that you pull
up the knob when you want to move
it. ( p.2-4)
● After moving the rough adjustment
knob, turn the ne adjustment knob
to the right and left a few times to
check that it moves slightly. ( p.2-5)
Rough
adjustment knob
2) Move the rough adjustment knob of the
second folding plate to the upper end.
To Next Page
