2-4

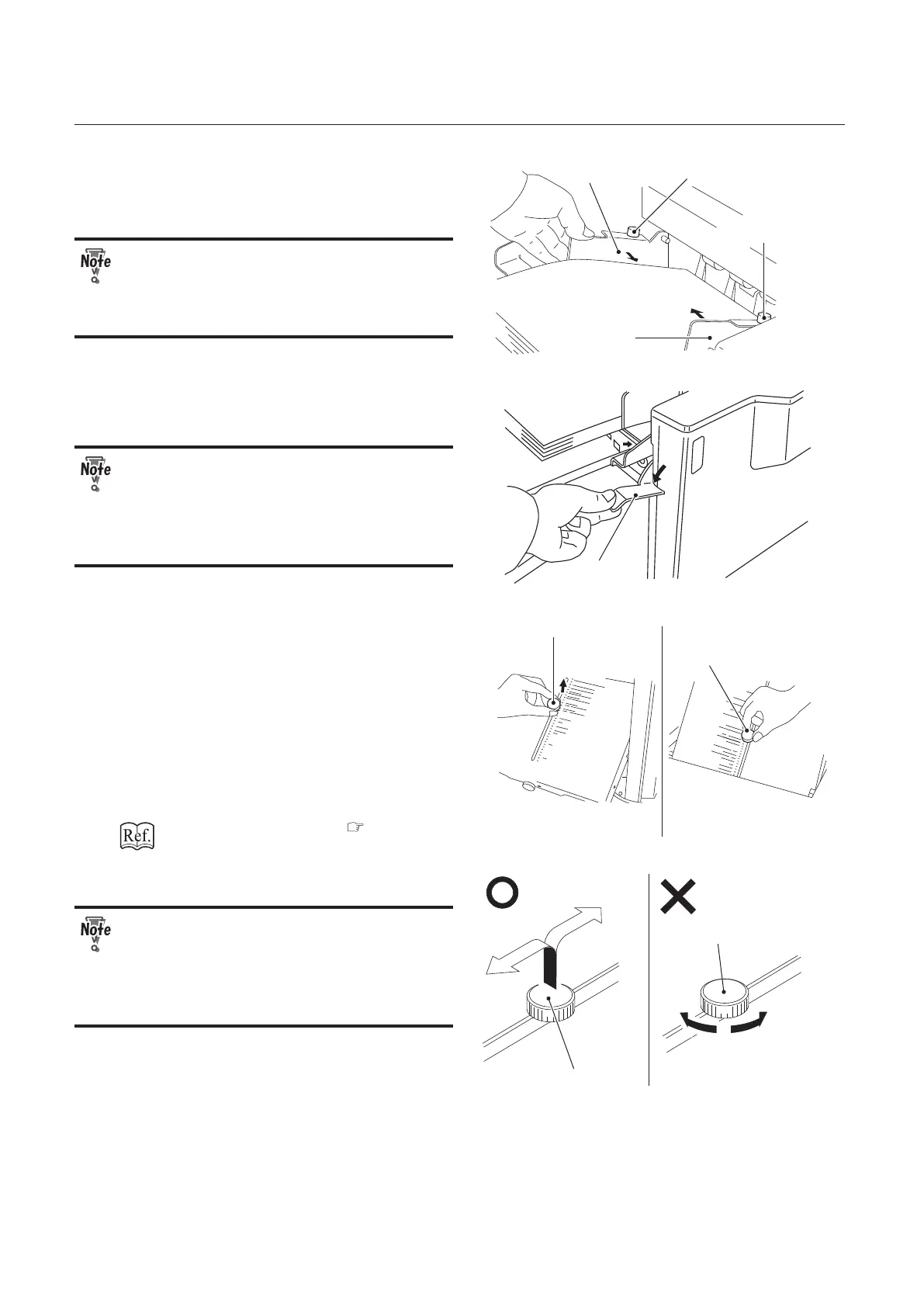

Chapter 2 BASIC OPERATION
Side guide
Side guide
Fixing screw
Fixing screw
4
After pressing the side guide to each
side of the paper lightly, tighten the
screws to secure the side guides.
Paper can be stacked to a height of ap-
proximately 45 mm/1.77 inches at one
time. Do not stack too many sheets of
paper.
Paper set lever
5
Lower the paper set lever.
The paper feed table will be raised.
Make sure that you lower the paper set
lever. If you start operations without the
paper set lever lowered, the paper feed
rings will run idle, causing the machine
to stop.
Rough adjustment knob
First folding plateSecond folding plate
Rough adjustment knob
6
Move the rough adjustment knob of
the rst and second folding plates to
the mark of a folding pattern you de-
sire.
Because the second folding plate is not
used for a single fold, move the rough
adjustment knob of the second folding plate
to the upper end to prevent the paper from
being sent to the second folding plate.
"Folding paper into two" ( p.2-8)
Rough adjustment knob
Rough adjustment knob
1) Slide the rough adjustment knob while
pulling it up.
The rough adjustment knob cannot
be turned either clockwise or
counterclockwise. Make sure that you
pull up the knob when you want to move
it.
To Next Page
