Chapter 5 CLEANING THE UNIT
1-5. Cleaning the Ejection Gate Sensor

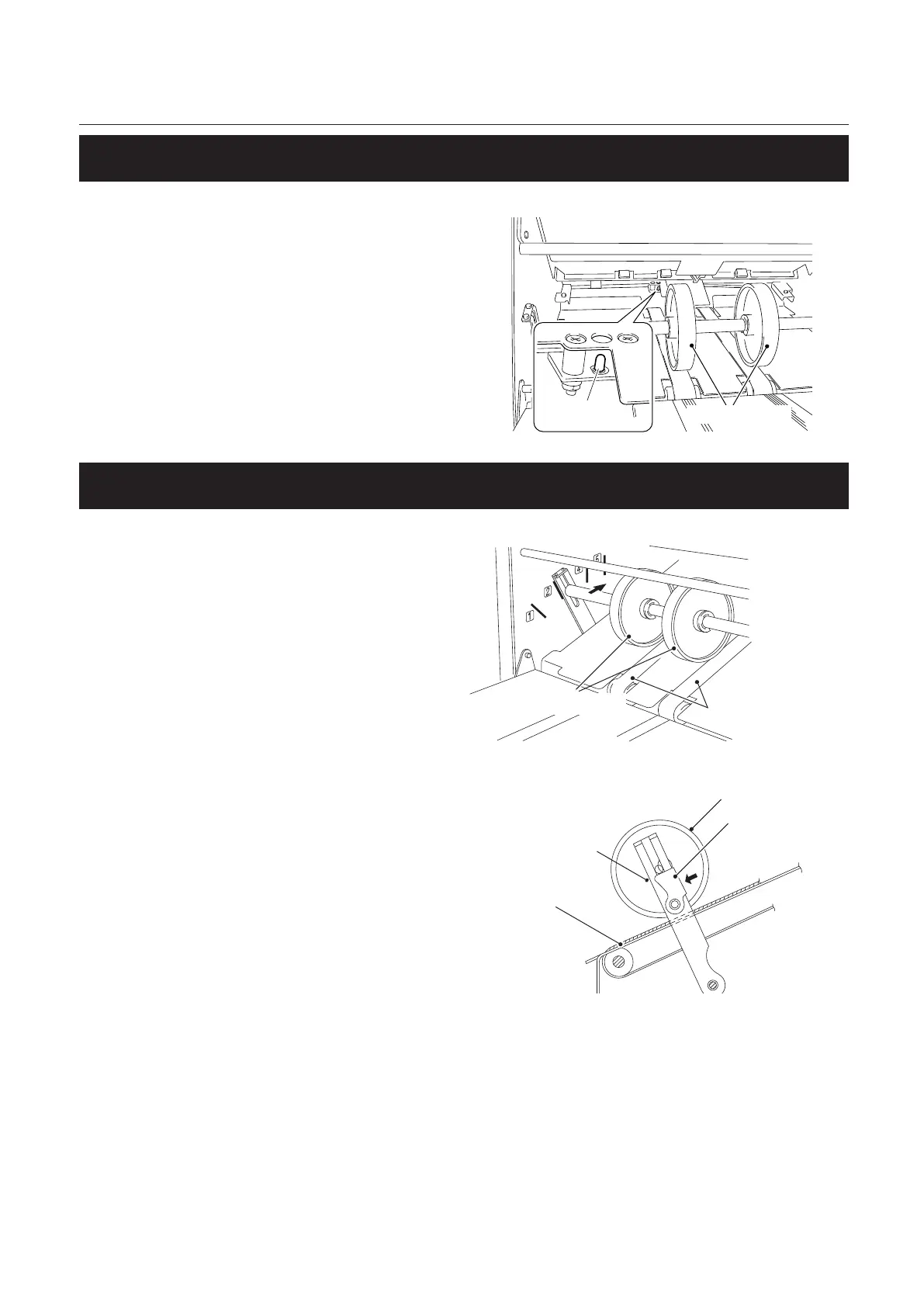

Ejection gate
sensor
Stacker rollers
Clean the ejection gate sensor,
located on the back of the stacker
rollers using an air duster.
1-6. Cleaning the Paper Ejection Belts
Stacker roller
Paper ejection belt
1
Move the stacker rollers to “5.”
Stacker roller
Lever
Belt
Stacker lever
2
While lifting up the stacker rollers
with your hand, pull the levers (left
and right) attached to the stacker
lever in the direction of the arrow so
that the stacker rollers are lifted up.
3
Rotate the stacker roller, and clean
off the dirt with a cloth moistened
with alcohol.
