3-16
Chapter 3 ADVANCED OPERATION

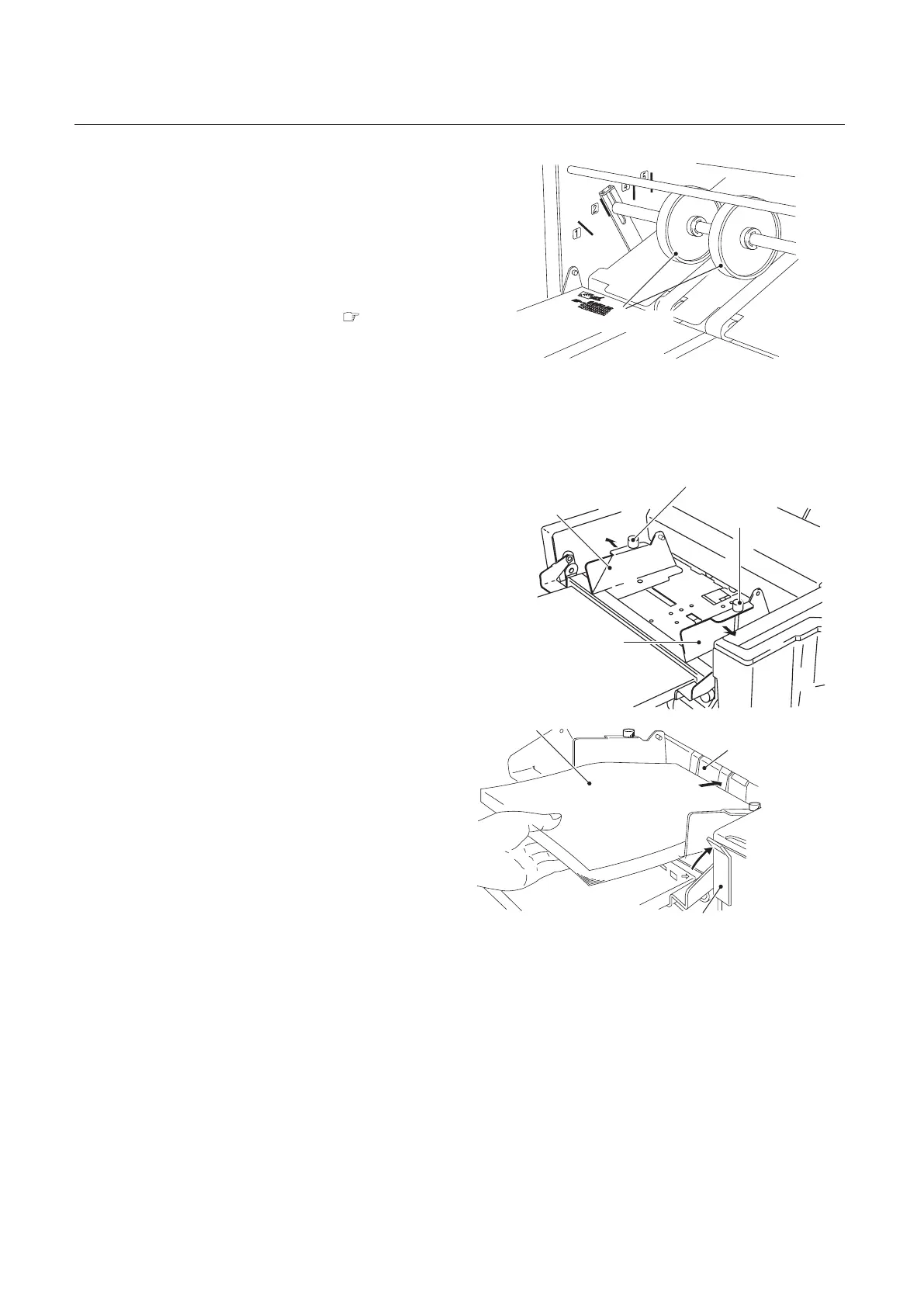

Stacker roller
3
Move the stacker rollers to the ap-
propriate position.
The machine shown in the gure to the
right is a North America model.
Refer to Table of Stacker Rollers Position
for their appropriate position ( p.3-13).
For this example, move the stacker rollers
to "2" for the nished size 150 mm/6.00
inches.
Side guide
Fixing screw
Side guide
Fixing screw
4
Loosen the xing screws of the side
guides, and move the side guides to
t the paper width.
Paper
Paper set lever
Guide plate
5
Raise the paper set lever and place
some paper on the paper feed table.
Push in the paper until its lead edge touch-
es the guide plate.
