3-13
Chapter 3 ADVANCED OPERATION

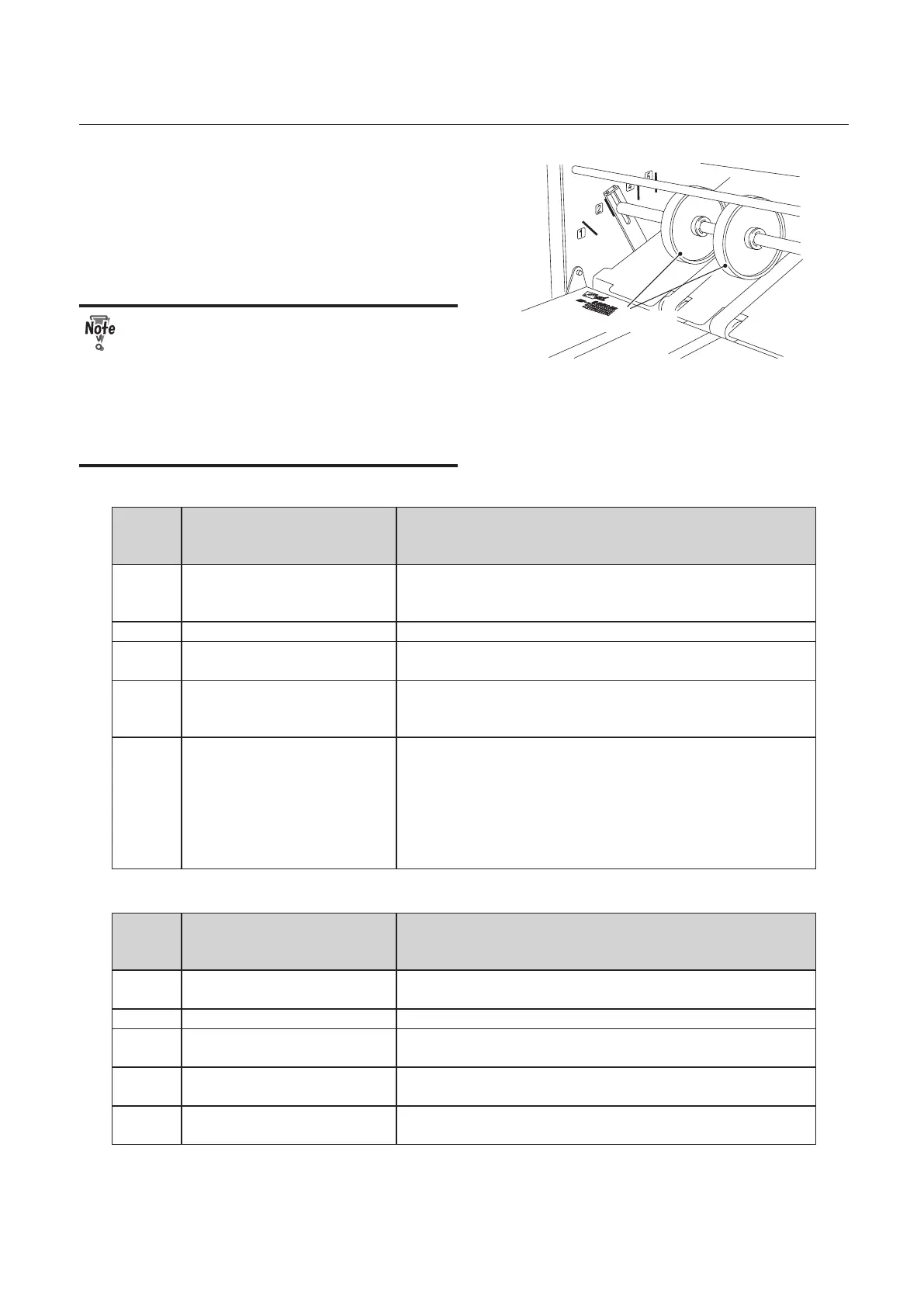

Stacker roller
8
Move the stacker rollers to the ap-
propriate position referring to Table
of Stacker Rollers Position on the
next page.
The machine shown in the gure to the
right is a North America model.
Use the table just as a reference. You
may need ne adjustments according to
various conditions such as environmen-
tal conditions (temperature, humidity),
paper quality, paper thickness, paper
ber direction, cutting accuracy and
printing conditions.
Table of Stacker Rollers Position (for EU)
Stacker
Rollers
Position
Length of Folded Paper (C) Folding Pattern
1 182 to 216 mm A3: single fold, irregular accordion fold, gate fold
B4 : single fold
Single fold larger than A3 size
2 148.5 to 182 mm B4: Irregular accordion, gate fold
3 128.5 to 148.5 mm A4: single fold, irregular accordion fold, gate fold
A3: letter fold, accordion fold
4 105 to 128.5 mm A5: single fold, irregular accordion fold, gate fold
B5: single fold, irregular accordion fold, gate fold
B4: letter fold, accordion fold
5 40 to 105 mm B6: single fold, double fold, letter fold, accordion fold,
irregular accordion fold, gate fold
A5: double fold, letter fold, accordion fold
B5: double fold, letter fold, accordion fold
A4: double fold, letter fold, accordion fold
B4: double fold
A3: double fold
Table of Stacker Rollers Position (for North America)
Stacker
Rollers
Position
Length of Folded Paper (C) Folding Pattern
1 7.0 to 8.5 inches LD: single fold, irregular accordion fold, gate fold
Single folded paper larger than LD
2 6.0 to 7.0 inches LG: Irregular accordion, gate fold
3 5.0 to 6.0 inches LT: single fold, irregular accordion fold, gate fold
LD: letter fold, accordion fold
4 4.0 to 5.0 inches LG: letter fold, accordion fold
LD: double fold
5 1.6 to 4.0 inches LT: double fold, letter fold, accordion fold
LG: double fold
To Next Page
