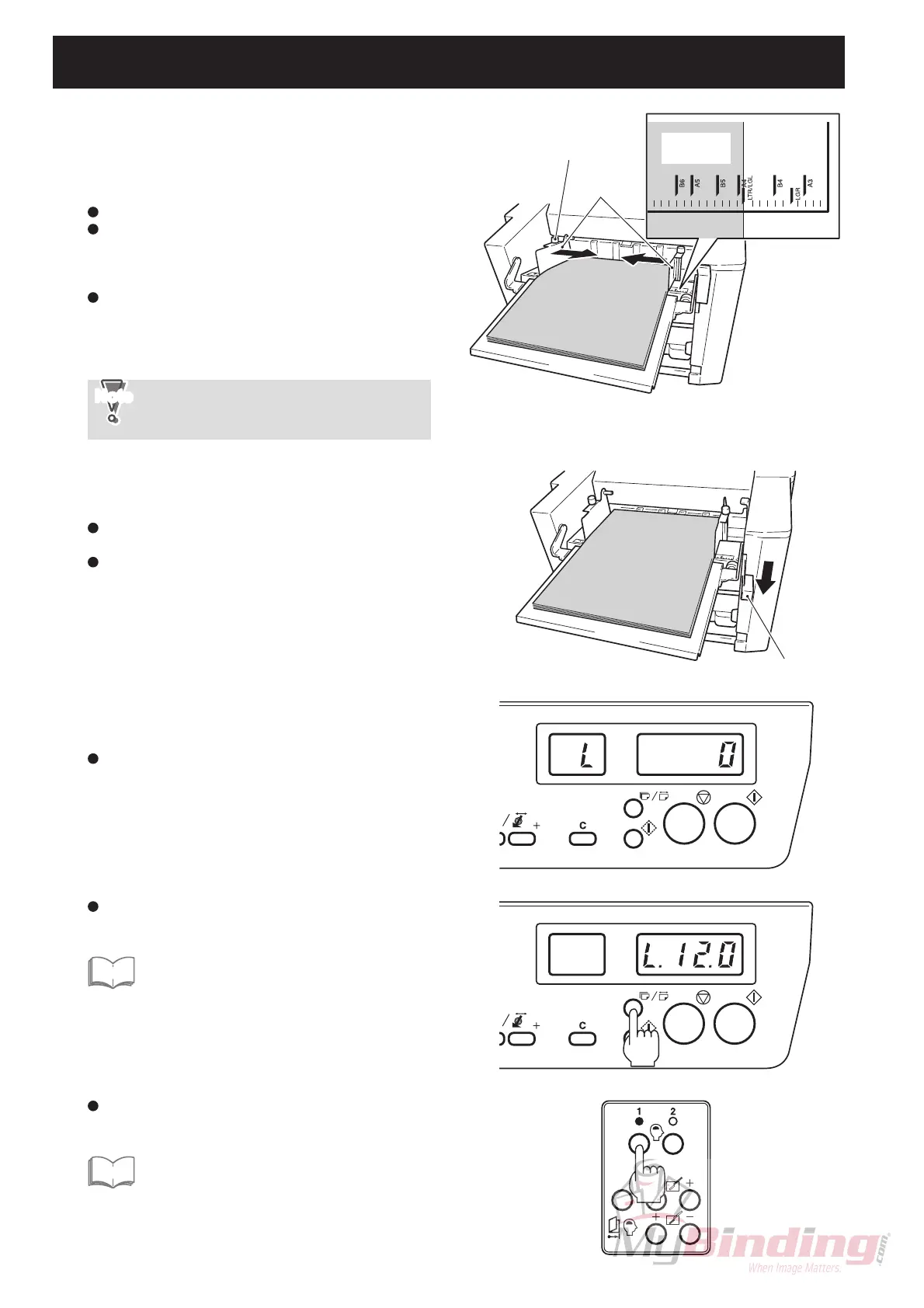

9. STANDARD FOLDING OF STANDARD PAPER
Move the paper feed guides to the
corresponding paper size on the paper
feed tray scale. Tighten the fixing
screws to secure.
The left and right paper feed guides move together.
Be sure to tighten the fixing screws of the left and right
paper feed guides. Otherwise, the guides will move
while the unit is operating, causing folding
misalignment along the sides of the paper.
Be sure to adjust the paper feed guides to the paper
feed tray scales. If the guides are positioned
incorrectly, the automatic paper size detection
function will not work, and the test key and start key,
etc. will not operate.
3
Do not press the paper with the paper feed
guides too strongly. Otherwise, paper feed
errors such as mis-feed will occur.
NoteNote
Fixing screw
Paper feed
guides
Check the paper size displayed on the
left window.
Paper size will not be displayed even if standard paper
size is used if the paper feed guides are not set at the
designated positions.
Set the paper feed guides at the correct positions.
5
eSee
eSee
Lower the paper set lever and set the
paper feed tray.
Lowering the lever raises the tray to the paper feed
position.
Raising the lever lowers the tray to the paper stacking
position.
4
Paper set lever
To set the standard folding mode of non-standard
paper, press the No. of sheets/Paper length key and
switch to the mode for entering paper length.
For details on standard folding of non-
standard paper, refer to “11. STANDARD
FOLDING OF NON-STANDARD PAPER”
(
☞
p.34).
To set the custom folding mode, press the custom
folding registration key 1 or 2 until the buzzer sounds
“pi.pi...” (about two seconds).
For details on custom folding, refer to “12.
CUSTOM FOLDING” (
☞
p.37).
Example of
LTR paper
