Duplo DF-915 User Manual

48

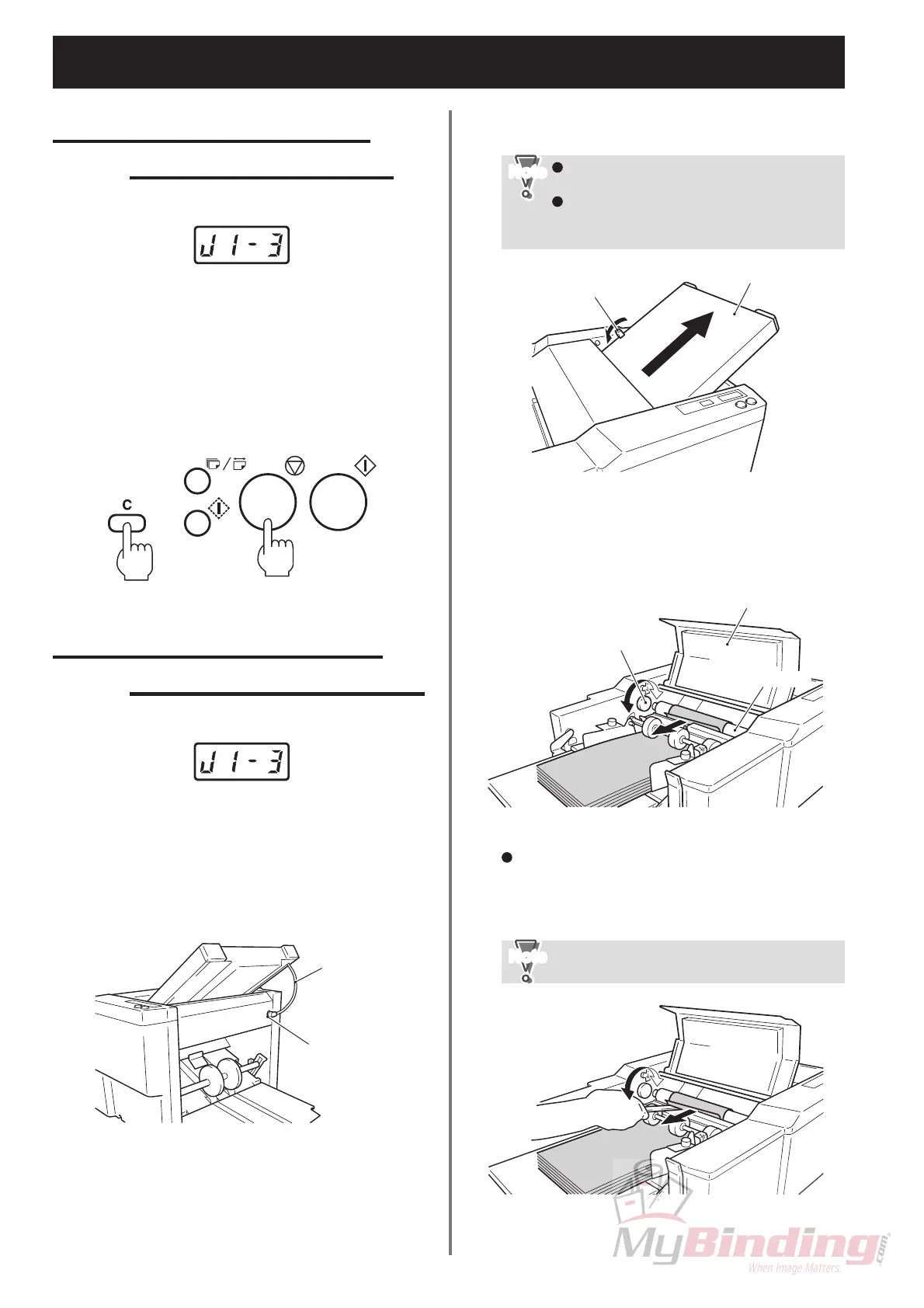

17. WHEN PAPER JAMMING OCCURS
17-3. When Paper Jams
Inside Folding Plate
The right window shows “J1-3”.
While pressing the stop key, press the clear
key.
The folding stoppers of folding plates 1 and 2
move to the home position, pushing out the
paper inside the folding plates to the paper
receiving tray.
17-4. When Paper Winds
Around Folding Roller
The right window shows “J1-3”.
Turn off the power.
1
Disconnect control cord 1 of folding
plate 1 from the No.1 connector.
2
Lock lever
No.1 connector
Control cord 1
Folding plate 1
Top cover
Jam correction knob
Folding roller
Release the lock lever, and remove
folding plate 1.
3
Be sure to hold folding plate 1 with both
hands.
Do not subject folding plate 1 to shock,
otherwise it may damage, folding
accuracy will drop.
NoteNote
Open the top cover, and while rotating
the jam correction knob, remove the
paper around the folding rollers.
4
If paper does not come out easily, insert a scale, etc.
into the lead edge of the paper which had wound
around the folding rollers from between the folding
rollers, and remove the paper while rotating the jam
correction knob.
Be careful not to damage the folding rollers
with the scale.
NoteNote
