38

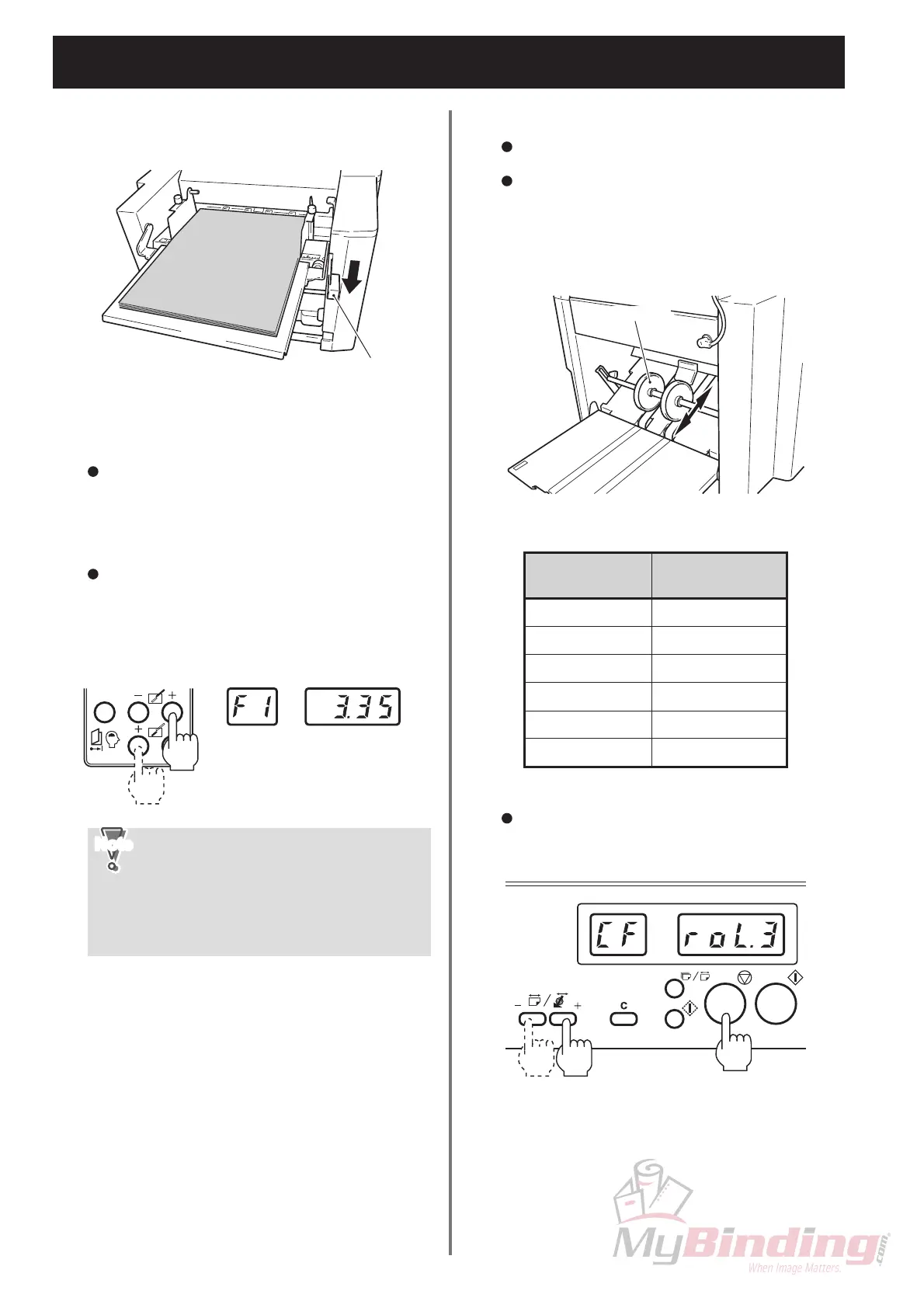

12. CUSTOM FOLDING
Lower the paper set lever and set the
paper feed tray.
5
Paper set lever
Set the folding stopper positions of
folding plates 1 and 2.
Press the “+” or “–” key of the folding plate 1 folding
stopper adjusting key and move the folding stopper to
the measured dimensions A (3.35") of the sample.
“F1” which means folding plate 1 is displayed on the
left window, and the position of the folding stopper is
displayed on the right window in inch.
Press the “+” or “–” key of the folding plate 2 folding
stopper adjusting key and move the folding stopper to
the measured dimensions B (3.74") of the sample.
“F2” which means folding plate 2 is displayed on the
left window, and the position of the folding stopper is
displayed on the right window in inch.
6
The “F1” and “F2” on the left window and
folding stopper position on the right
window are displayed only while the
adjusting key is pressed. When the key is
released, the left window displays “CF”
and the right window displays the number
of sheets to be processed.
NoteNote
Set the position of the stacker roller.
The position of the stacker roller needs to be changed
according to the folded paper length.
Pressing the “+” or “–” key of the Paper length/Stacker
roller position key while pressing the stop key displays
“roL. 1 to 6” on the right window. The stacker roller
then moves to the position displayed.
Refer to the following table for approximate set
positions.
7
Right window
display
roL.1
roL.2
roL.3
roL.4
roL.5
roL.6
Folded paper
length
To 3.35"
3.36" to 4.13"
4.14" to 4.72"
4.73" to 5.31"
5.32" to 5.91"
From 5.92"
Approximate stacker roller set position
In this example, the folded paper length C is 4.33".
Therefore select “roL.3” by pressing the Paper length/
Stacker roller position key while pressing the stop key.
Stacker roller
