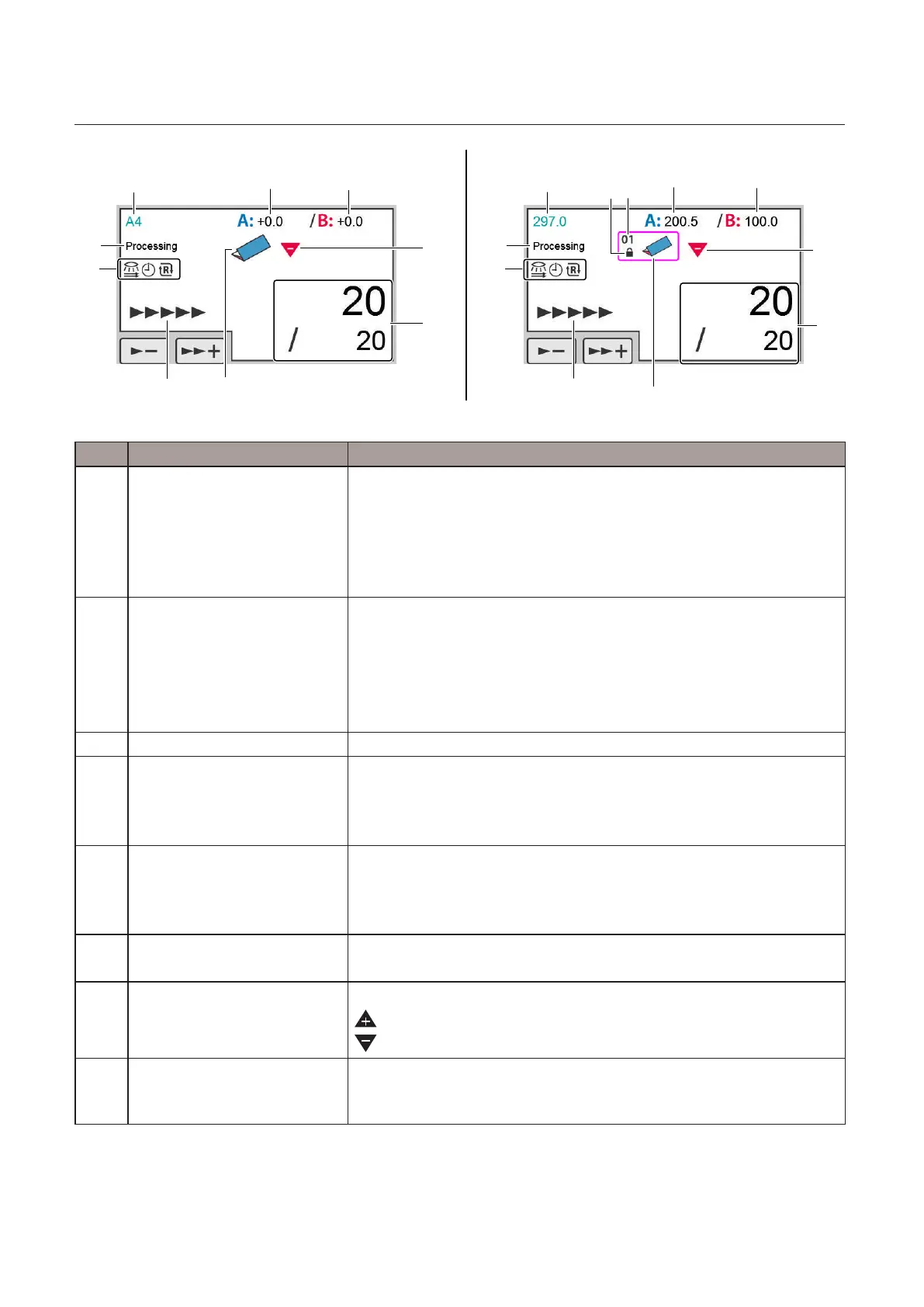

[Processing] screen (custom fold)[Processing] screen
[10]
[11]
[10]
[11]
[2][3]
No. Name Function
[1] Papersize Displaysthedetectedstandardpapersize.
A3/B4/A4/B5/A5/B6(ForEU)
LGR(doubleletter)/LGL(legal)/LTR(letter)/STMT(statement)/INV(invoice)
(ForNA)
Whennon-standardpaperorcustomfoldingisset,thepaperlengthis
displayed.
[2] Saved data number Displays the number of saved custom folding data read and used, or the
number assigned when custom folding data was newly created and saved.
Data is saved with the following numbers:
1to30(*1)
1to15(*2)
Whendataisnewlycreatedbutnotsaved,[00]isdisplayed.
[3] Saved data lock Displayed when saved custom folding data is locked.
[4] Folding dimension A position
adjustment
DisplaysthepositionadjustmentvalueoffoldingplateA.
Whenincustomfoldingorstopperxedmode,foldingdimensionAis
displayed.
Settingrange:-5.0to+5.0(mm)/-0.197to+0.197(inch)
[5] Folding dimension B position
adjustment
DisplaysthepositionadjustmentvalueoffoldingplateB.
Whenincustomfoldingorstopperxedmode,foldingdimensionBis
displayed.
Settingrange:-5.0to+5.0(mm)/-0.197to+0.197(inch)
[6] Counter Displays current counter.
Settingrange:0to99999(sheet)
[7] Count mode Displayscountermode(additionorsubtraction).
Count up
Count down
[8] Folding mode Displays the folding mode currently set.
Whenincustomfoldingorstopperxedmode,displaysabriefshapeof
the folding form.
