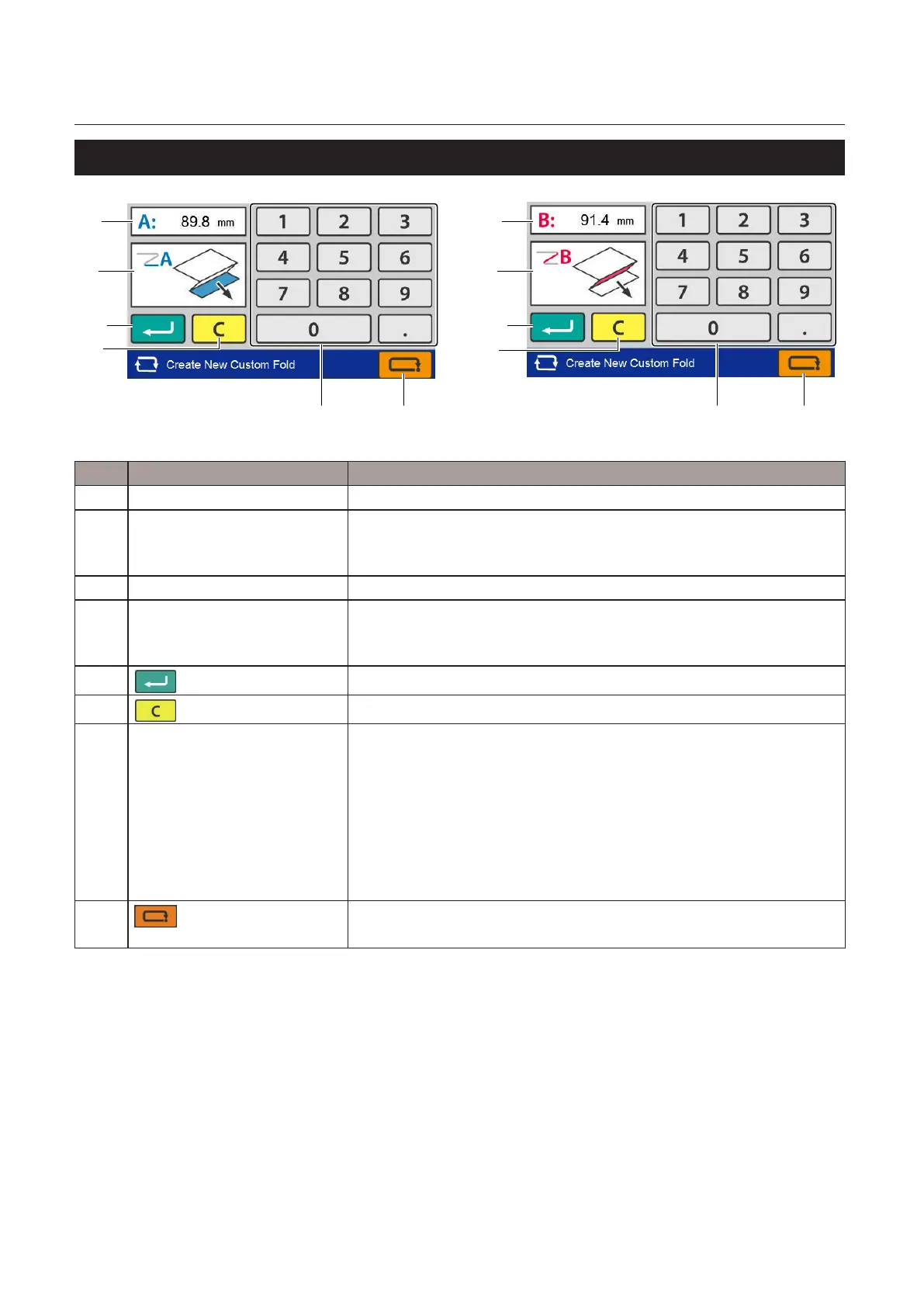

6-10. Folding A/Folding B input screen
[6]
[8][7]
[2]
[1]
[5]
[6]
[8][7]
[4]
[3]
[5]
No. Name Function
[1] Folding A setting value display Displays the currently set folding A value.
[2] Folding A outline display Displays the position of folding A on the paper.
Whentheinputvalueisoutsidethespecicationrange,awarningmessage
is displayed.
[3] Folding B setting value display Displays the currently set folding B value.
[4] Folding B outline display Displays the position of folding B on the paper.
Whentheinputvalueisoutsidethespecicationrange,awarningmessage
is displayed.
[5]
(Return)key
Savestheinputvalueandreturnstothe[CustomFold]screen.
[6]
(Clear)key
Sets the input value to "0".
[7] Numerickeypad Inputs the value.
Setting range
FoldingA:42.0to***mm/1.65to***inches
***:325.0mm/12.80inchesor“Paperlength+5.0mm/+0.197inch”,
whichever is shorter.
FoldingB:0/47.0to***mm/1.85to***inches
***:217.0mm/8.54inchesor“Paperlength+5.0mm/+0.197inch”,
whichever is shorter.
[8]
(Cancel)key
Returns to the previous screen without saving the input content.
Pressandholdtoreturntothe[Ready]screen.
