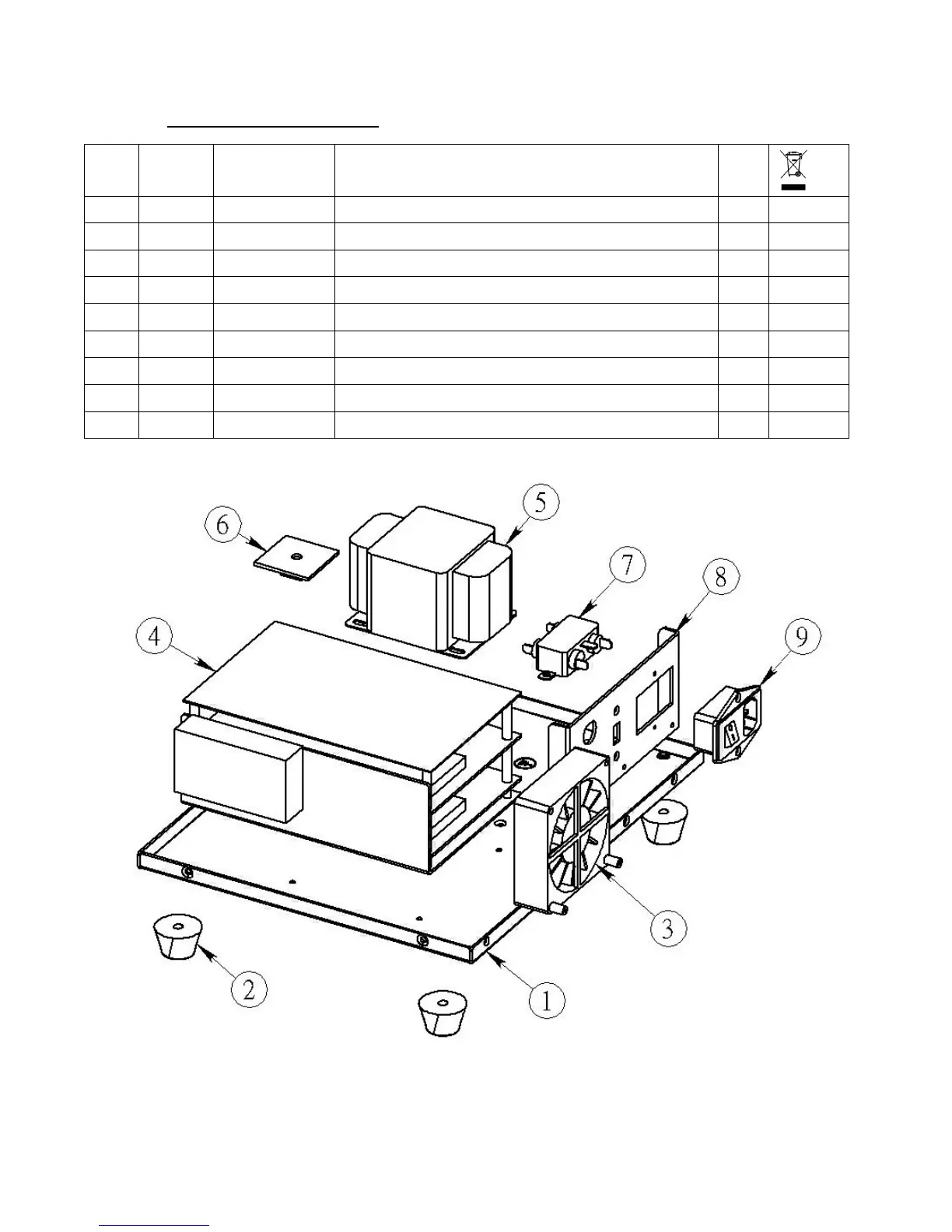

2.3 Electric Panel Asm (Fig. 4)
NO Index P/N Name Q’TY
1
2.3.01
881-C01-000A
Plate, Electric Panel 1
2
2.3.02
00R-000-1101
Rubber Foot 1
NBR
3
2.3.03
00F-000-0003
Fan, DC 12V 1
4
2.3.04
00A-000-0161
Asm, Driver Box, Common 1
PCBA
5
2.2.05
00T-000-1405
Transformer 1
6
2.2.06
00R-000-0301
Rectifier Board 1
PCBA
7
2.2.07
00F-000-0401
Emi Filter Type 1
8
2.3.08
00B-000-0959
Bracket, Power Entry 1
9
2.3.09
00S-000-6112
Power switch
1
Fig. 4
