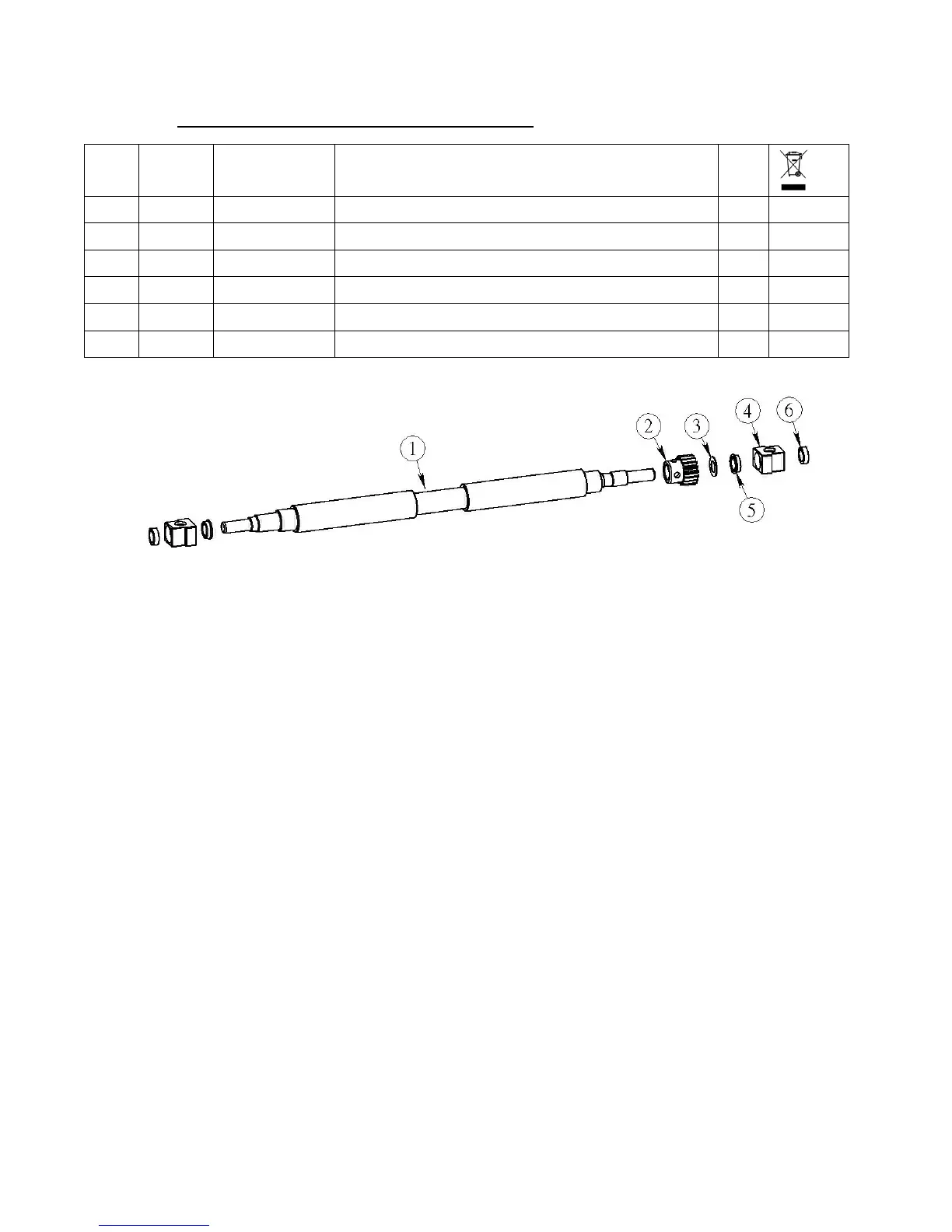

2.11 Rear UpperTransnsport Roller Asm (Fig. 10)
NO Index P/N Name Q’TY
1
2.11.01
881-M01-000A
Roller, Transport 1
2
2.11.02
00G-M10-1910
Gear, M1.0, 19T, ID10 1
3
2.11.03
881-L03-000A
Nylon Graphite Gasket, OD14, ID8.2
1
Nylon
4
2.11.04
00H-L12-80ZZ
Housing, 1280 Ball Bearing, Transport Rocker 2
5
2.11.05
00B-F12-80ZZ
Ball Bearing, F-1280ZZ 2
6
2.11.06
00B-L12-80ZZ
Ball Bearing, L-1280ZZ 2
Fig. 10
