Duplo DocuCutter CC-228 Service And Parts Manual

-
15
-

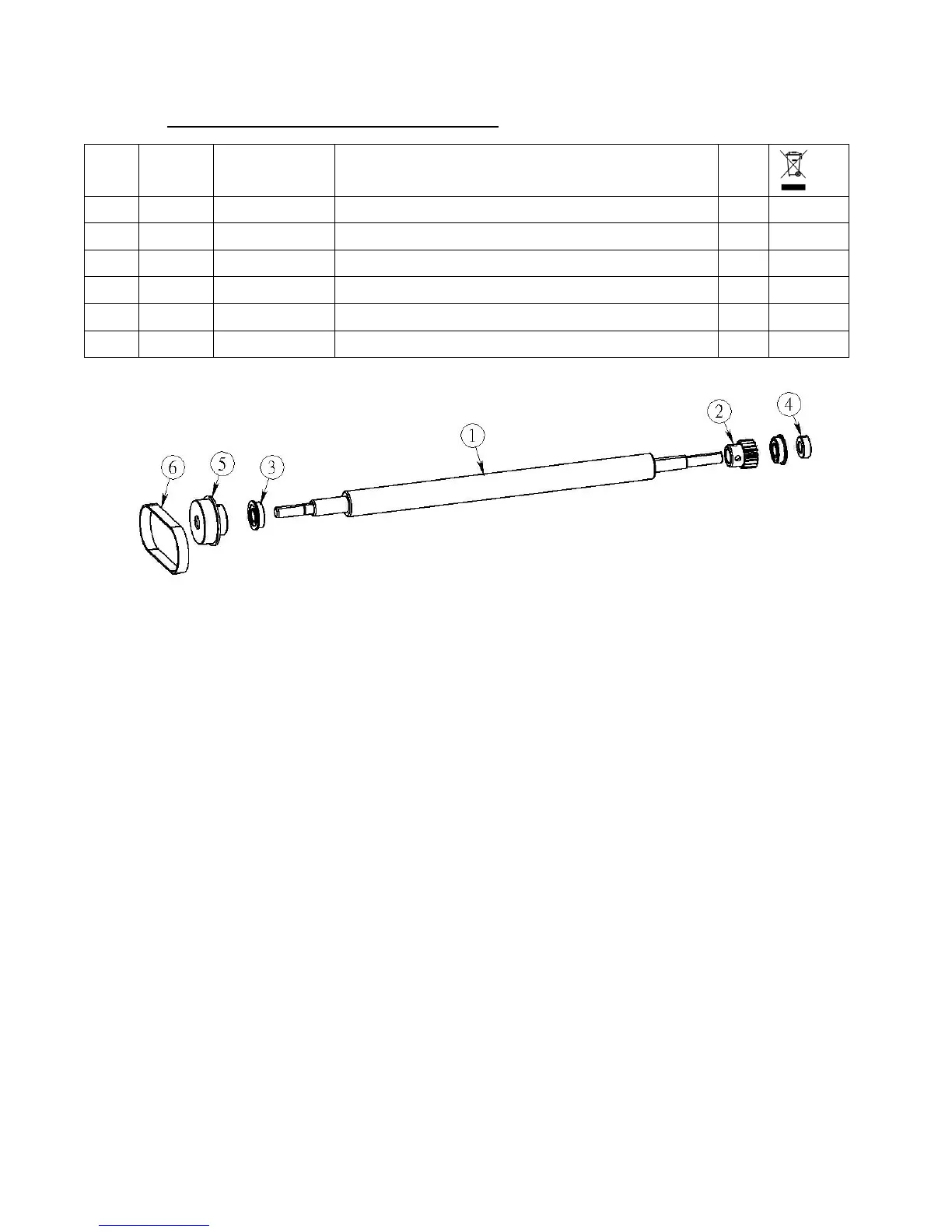

2.9 Rear Lower Transport Roller Asm (Fig. 8)
NO Index P/N Name Q’TY
1
2.9.01
881-H01-000A
Roller, Transport, CC-228 1
2
2.9.02
00G-M10-1910
Gear, M1.0, 19T, ID10 1
3
2.9.03
00B-F19-80ZZ
Ball Bearing, F-1980ZZ 2
4
2.9.04
00C-016-080A
Collar, OD16, ID8
1
5
2.9.05
08P-51G-0800
Pulley, 0.8 P,51G,ID8 2
6
2.9.06
00B-MXL-082C
Belt, 0.2P, 82MXL, 8mm 1
MAR
Fig. 8
