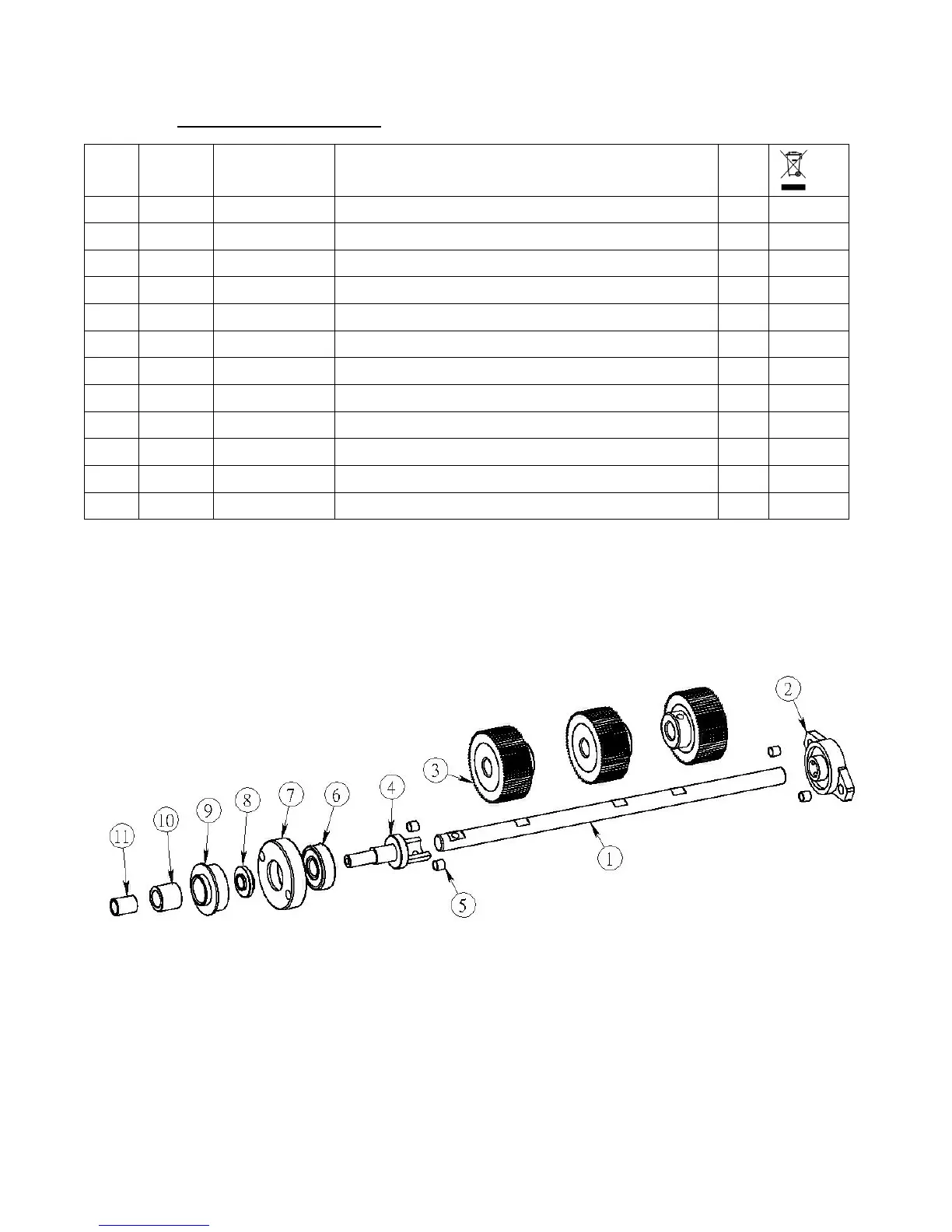

2.12 Feed Roller Asm (Fig. 11)
NO Index P/N Name Q’TY
1
2.12.01
881-N01-000A
Shaft, Feed Roller 1
2
2.12.02
00B-0UF-L001
Pillow Block Ball Bearings, UFL-001 1
3
2.12.03
00R-000-1502
Feed Roller, CC-228 3
PU
881-N03-000A
Core, Feed Roller
4
2.12.04
881-N04-000A
Shaft, Feed Driving 1
5
2.12.05
162-107-0400
Bushing, OD7, ID6 4
6
2.12.06
00B-062-01ZZ
Ball Bearing, 6201ZZ 1
7
2.12.07
00H-062-010A
Housing, Ball Bearing 6201ZZ 1
8
2.12.08
881-N08-000A
Gasket 1
Nylon
9
2.12.09
08P-24G-1800
Pulley, 0.8 P,24G,ID18 1
10
2.12.10
00O-000-FC12
One Way Clutch, OD18, ID12, FC-12 1
11
2.12.11
00B-000-1209
Hardening Bushing, OD12, ID9(LRT-91216) 1
Fig. 11
