Duplo DocuCutter CC-228 Service And Parts Manual

-
7
-

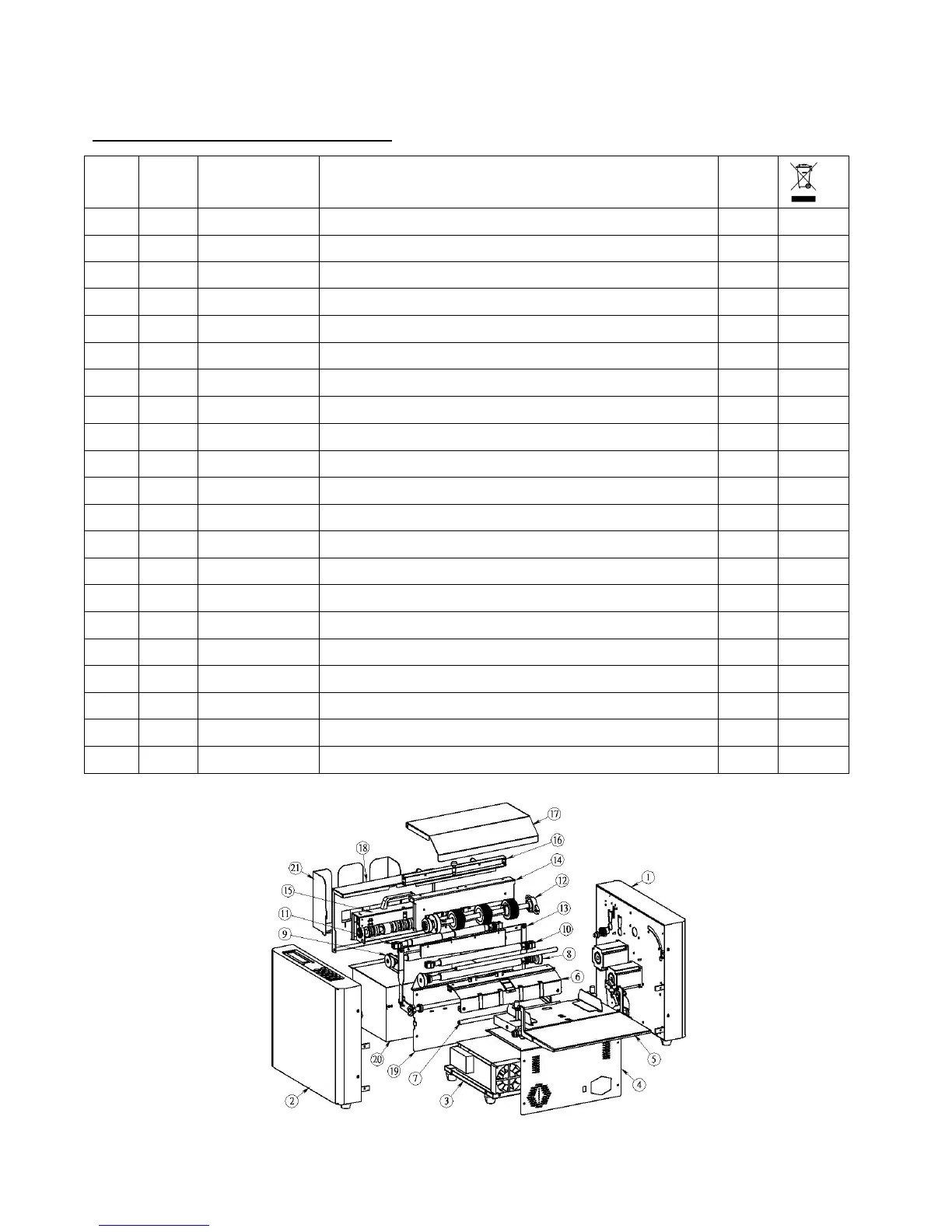

Explosive View and WEEE(Fig.1)
NO Index
P/N Name Q’TY
1
2.1
881-A00-000A
Asm, Side Plate, R 1
2
2.2
881-B00-000A
Asm, Side Plate, L 1
3 2.3 881-C00-000A Asm, Electric Panel 1
4
2.4
881-216-000A
Cover, Front Safety 1
5
2.5
881-E00-000A
Asm, Feed Table 1
6
2.6
881-F00-000A
Asm, Feed Ramp 1
7
2.7
881-G00-000A
Bar, Tie 2
8
2.8
881-H00-000A
Asm, Transmission Roller, Lowe, Front 1
9
2.9
881-K00-000A
Asm, Transmission Roller, Lower, Rear 1
10
2.10
881-L00-000A
Asm, Transmission Roller, Upper, Front 1
11
2.11
881-M00-000A
Asm, Transmission Roller, Upper, Rear 1
12
2.12
881-N00-000A
Asm, Feed Roller 1
13
2.13
881-P00-000A
Asm, Lower Knife 1
14
2.14
881-Q00-000A
Asm, Upper Knife 1
15
2.15
881-112-0000
Module, Slitter, 2X3.5” 1
16
2.16
881-R00-000A
Asm, Slitter Mounting Chassis 1
17
2.17
881-107-000B
Top, Safety Cover 1
18 2.18 881-110-0000
Cover, Rear
1
19
2.19
881-S00-000A
Cover, Rear Lower Safety 1
20
2.20
881-108-000B
Waste Bin 1
21
2.21
881-109-000A Asm, Catcher
1
Fig. 1
