Duplo DocuCutter CC-228 Service And Parts Manual

-
8
-

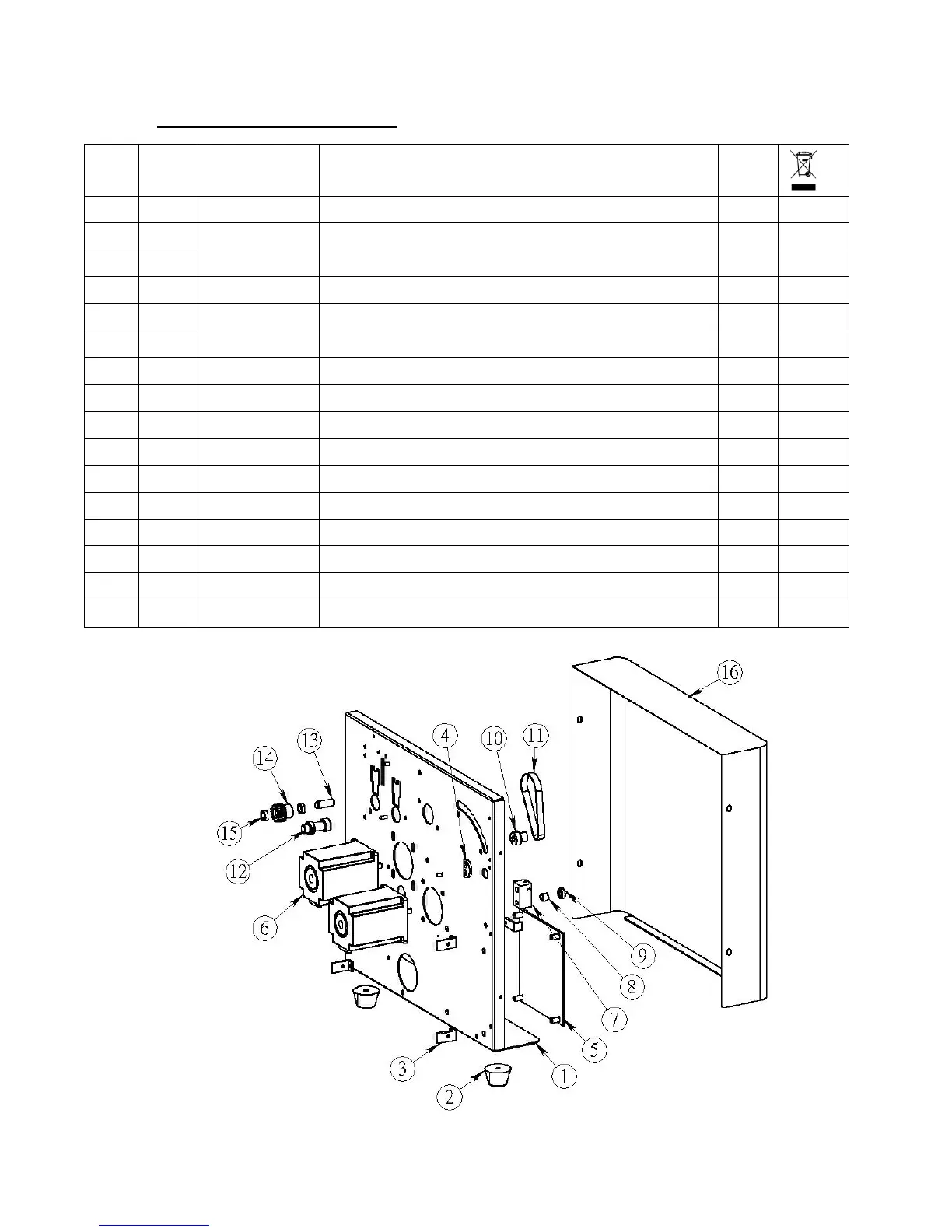

2.1 Right Side Plate Asm (Fig. 2)
NO Index
P/N Name Q’TY
1
2.1.01
881-A01-000A
Side Plate, Right 1
2
2.1.02
00R-000-1101
Rubber Foot 2
NBR
3
2.1.03
00B-000-0905
Angle Bracket 4
4
2.1.04
881-A04-000A
Stopper 1
5
2.1.05
00A-000-1211
Asm, PCB, Power 1
PCBA
6
2.1.06
00M-000-0403
Motor, SQ, 2.58V, 3A 1
7
2.1.07
881-708-0000
Crank, Knife Driving 1
8
2.1.08
881-707-0000
Bushing, OD8, ID6.2 1
9
2.1.09
00B-L12-60ZZ
Ball Bearing, L-1260ZZ 1
10
2.1.10
08P-17G-0635
Pulley, 0.8 P, 17G, ID6.35 1
11
2.1.11
00B-MXL-088C
Belt, 0.2P, 88XL 1
MAR
12
2.1.12
881-A12-000A
Standoff, Slitter Positioning 1
13
2.1.13
881-A13-000A
Stud, Idle Gear 1
14
2.1.14
00G-M10-1912
Gear, M1.0, 19T, OD 12, Idler 1
15
2.1.15
00B-L12-80ZZ
Ball Bearing, L1280ZZ 2
16
2.1.16
881-118-000A
Case, R, CC-228 1
Fig. 2
