- 29 -

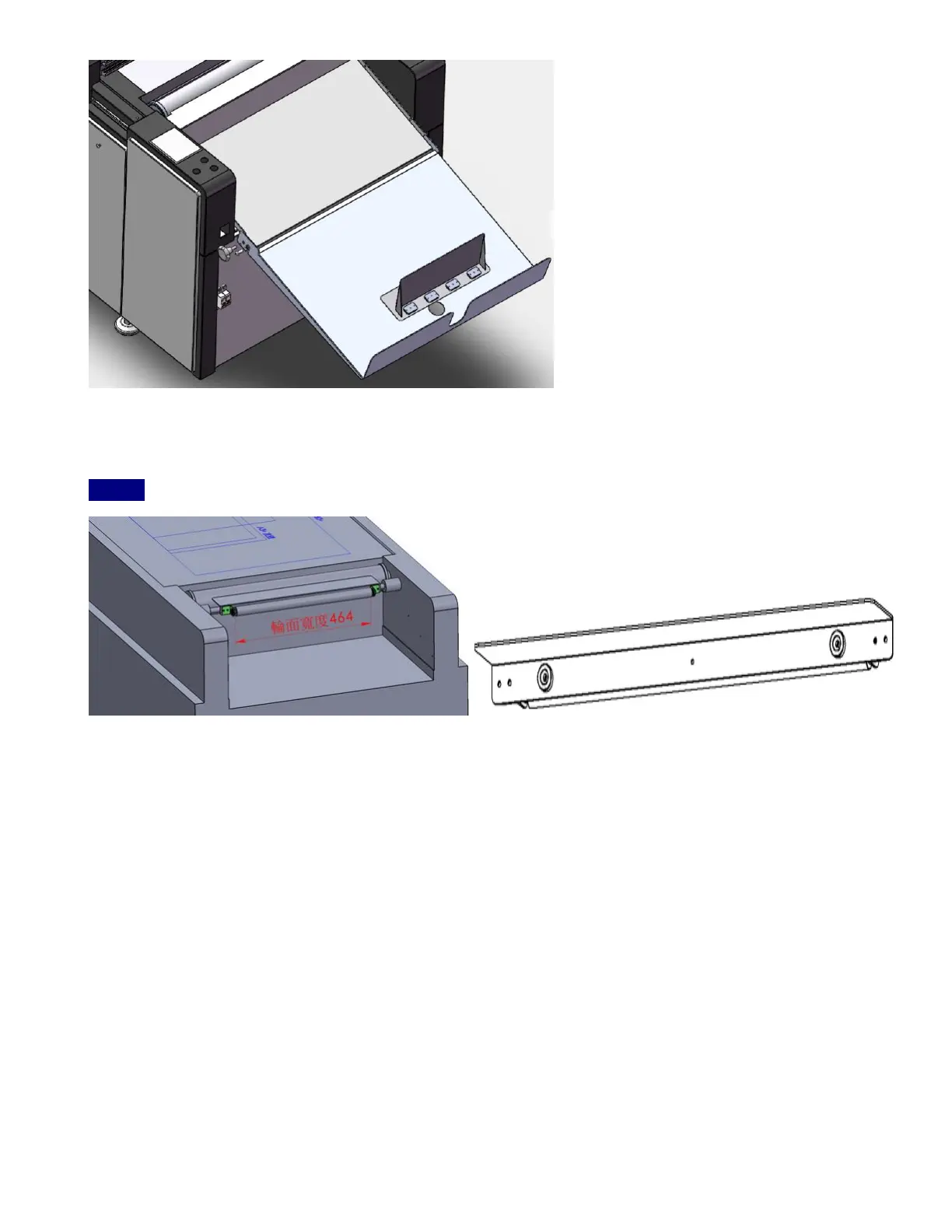

Screw 1 use for fix catch tray position so that collect tray cannot fold down.
Screw 2 use for making these two trays connect.
Step 3 IInstallation of Ejection Roller Assembly
