8. Installation of Tools
8.1 Installation of Oscillating Tool
The oscillating too mainly used for foam board/pad, grey board, cardboard, KT board, PVC
board, corrugate board, and other thicker/harder materials.

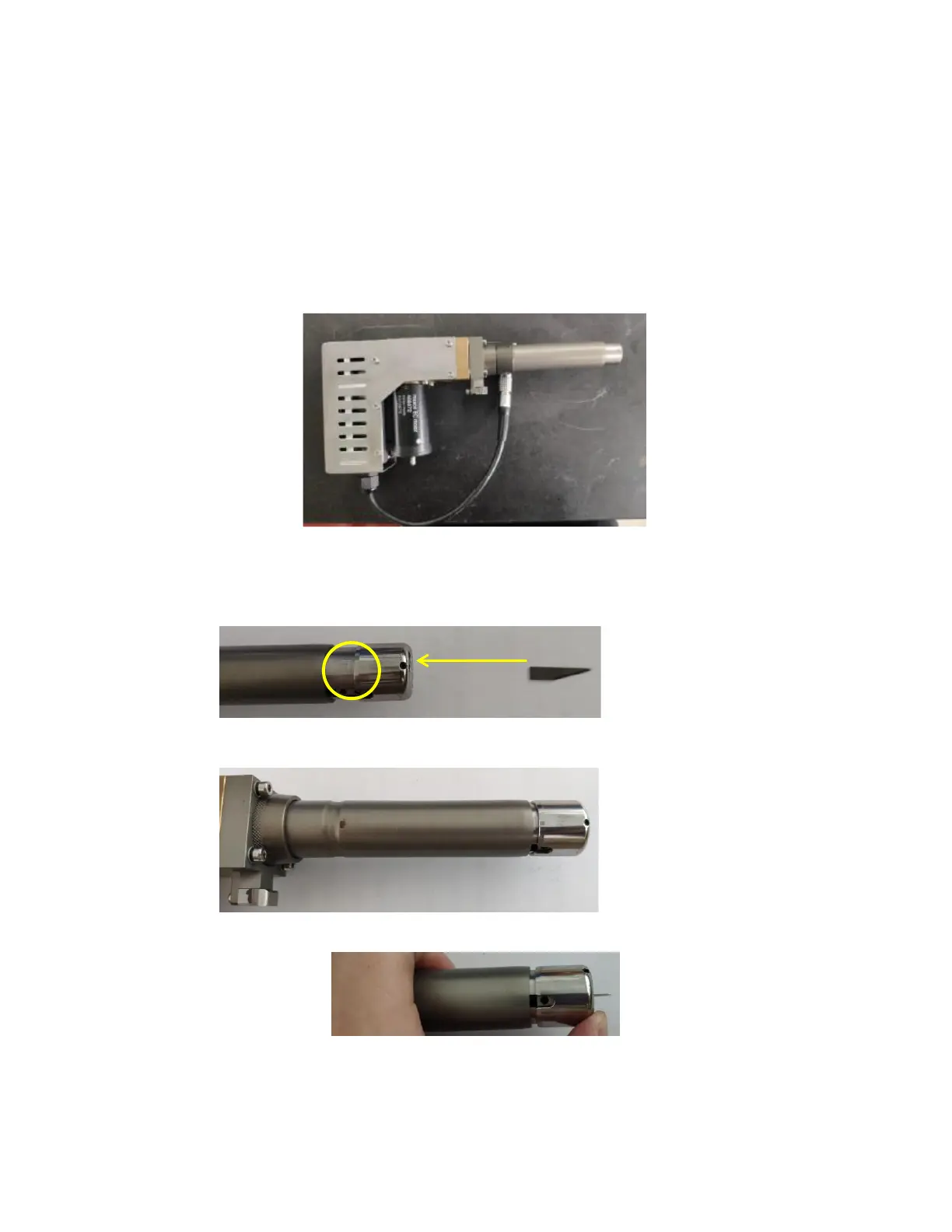

Step 1 Loosen these two set screws with Allen key allows to press the cover down.
Step 2 Make the blade direction face to the set screw. Install the blade to holder. Make sure it
against the tool holder base. Then fastening the two set screws.
