- 49 -

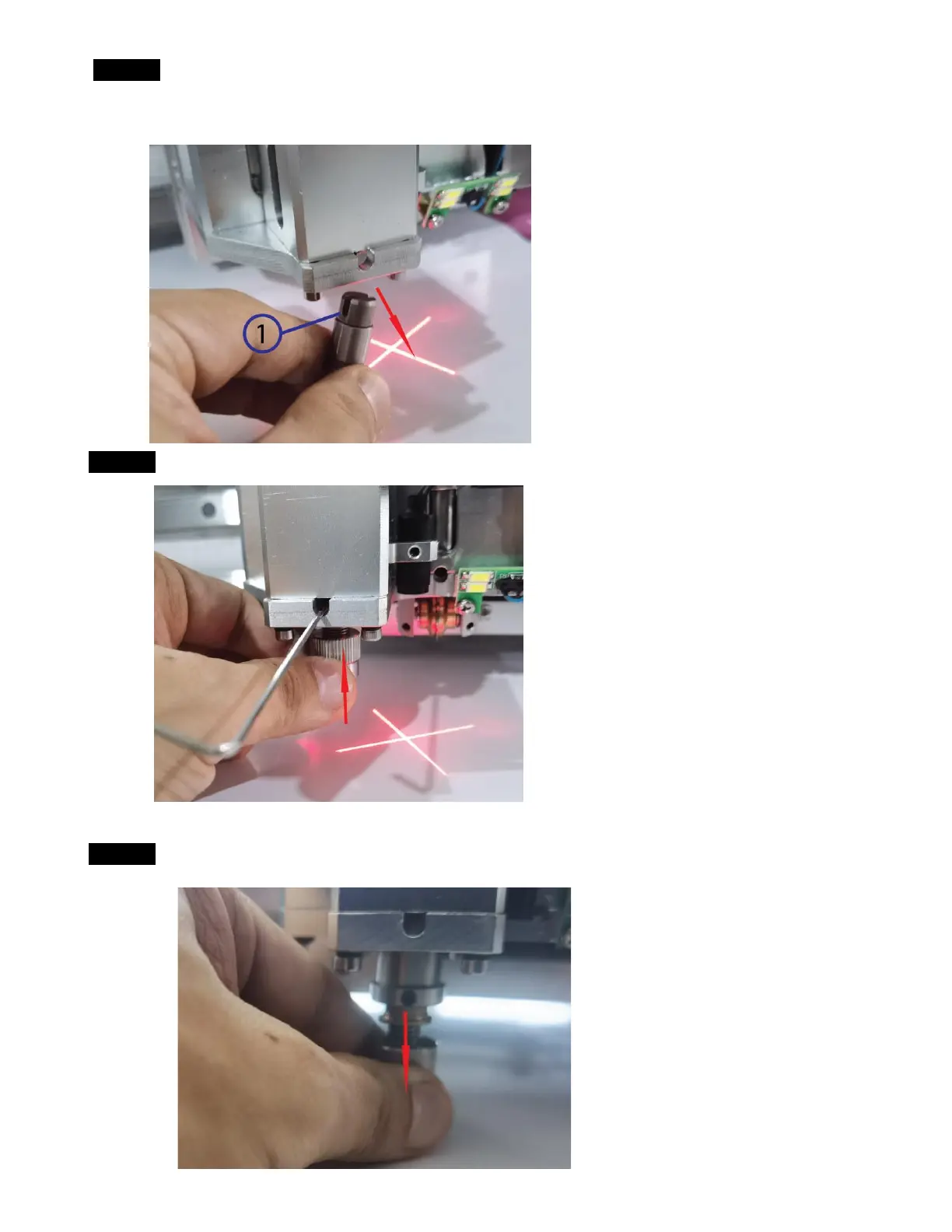

Step 12 Insert the kiss cut tool to the machine head tool holder,the flat step in the tool tail should facing
the front direction
①: Flat step in the tool tail
Step 13 Push the tool up and lock the lock screw with 1.5mm Allen key on the tool holder
Step 14 Drag down the tool several times to test if it is locked tightly or not
