- 21
-
Platemaking and printing procedure
3
3. Platemaking and printing procedure

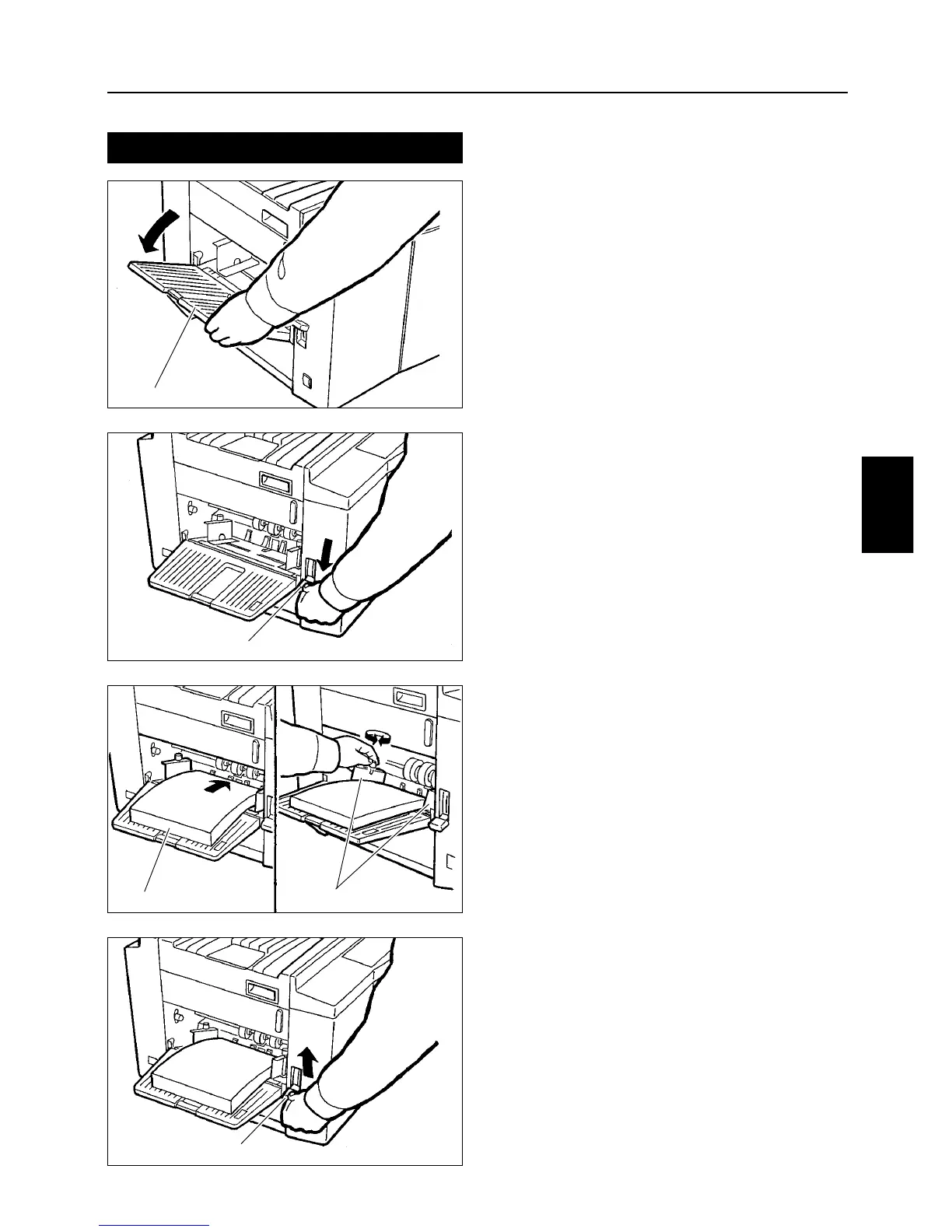

Setting the Paper T
ray
Open the paper tray toward you
1
Lower the paper set lever.
2
Place the paper in the tray, and adjust
the paper guide to the width of the
paper.
3
Raise the paper set lever.
4
PAPER TRAY
PAPER SET LEVER
PAPER
PAPER SET LEVER
PAPER GUIDE
22
24
