- 50 -
If this message is indicated in the error
display panel, there is an old master on the
printing drum. Remove it by following
instruction below:

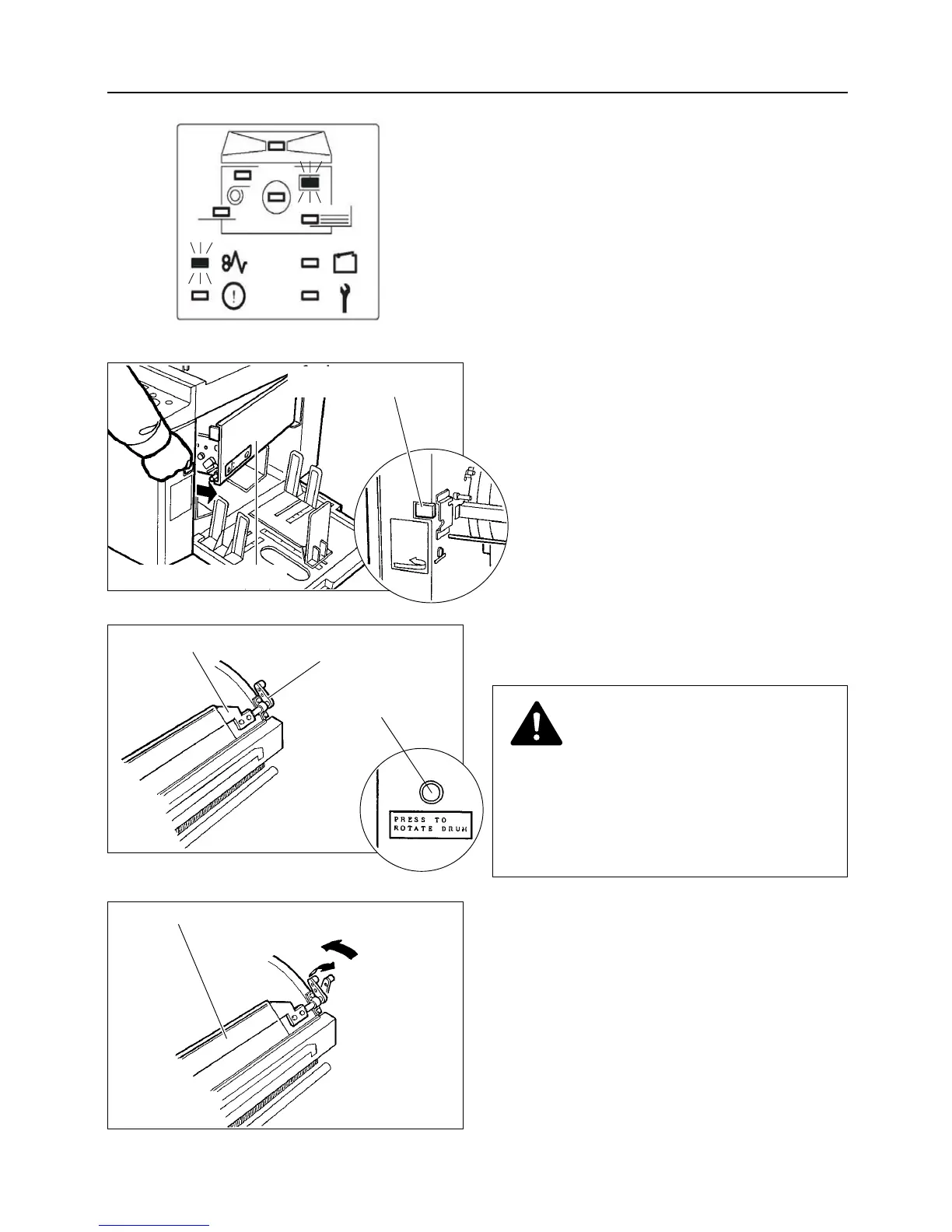

Removing a master (eject error)
Push the master ejection box release
lever. The box will open toward you;
continue opening until the box stops.
1
Press the
JOG switch
to stop the drum at
a position shown in the diagram.
2
WARNING
¡¡
Do NOT touch the drum or rollers when
you operate the jog switch.
¡
¡
Do NOT put hands inside machine
while it is operating.
Hands could get caught up or crushed.
Lift the lever toward you.
The master clamp will open and the edge
of the master will be released from the
clamp.
If the master is stuck, release it by hand.
3
MASTER CRAMP
LEVER
JOG SWITCH
w REMOVE MASTER
e
CLOSE THE CLAMP
q
OPEN THE
CLAMP
MASTER EJECTION BOX
RELEASE LEVER
MASTER EJECTION BOX
To Next Page
