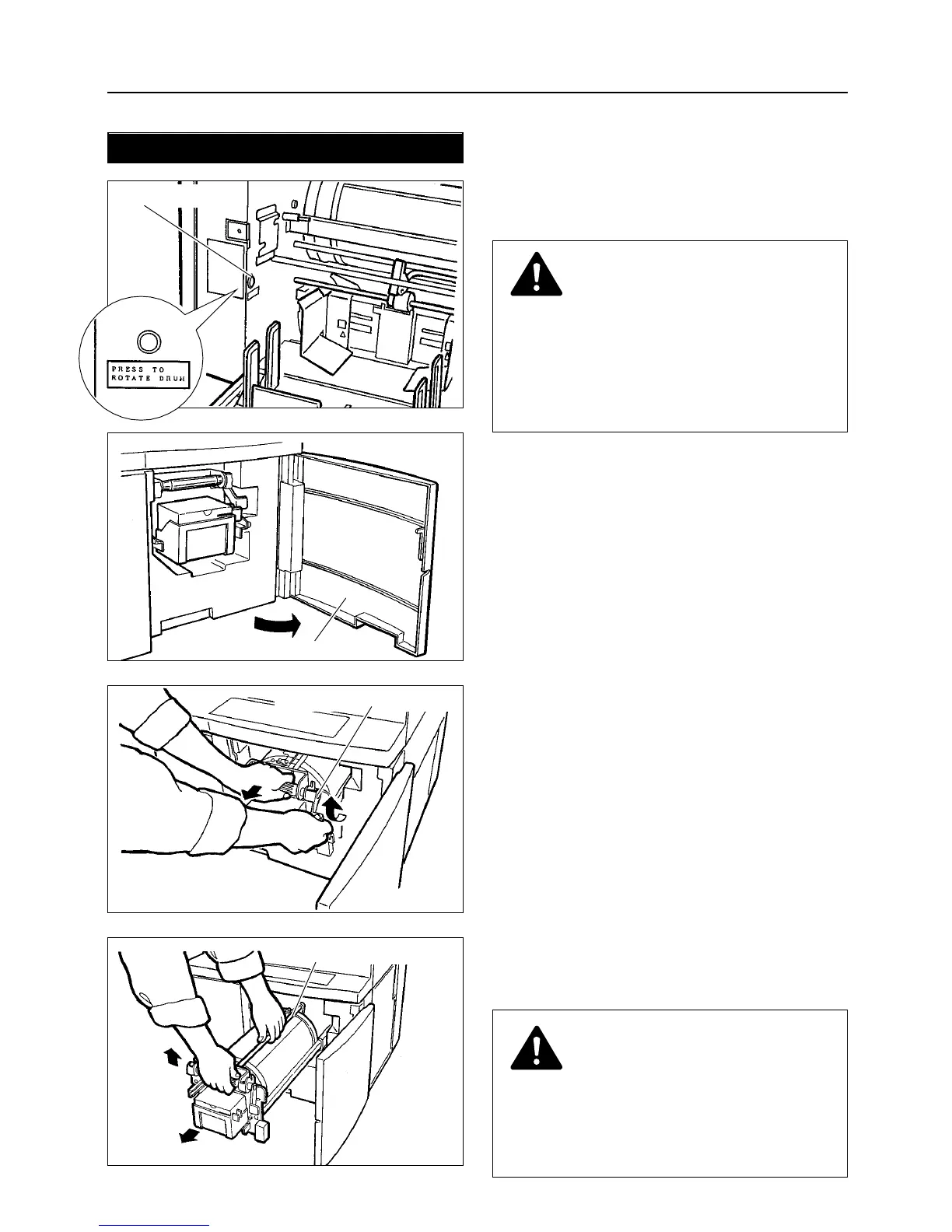

Changing the drum unit
Drum unit
Press the
JOG switch.
Hold down until the drum stops with a beep.
1
WARNING
¡¡
Do NOT touch the drum or rollers when
you operate the jog switch.
¡¡
Do NOT put hands inside machine while
it is operating.
Hands could get caught up or crushed.
Open the front cover.
2
Lift up the drum securing lever.
While lifting the lever up, pull out the
drum handle toward you, pulling it
straight out until it stops.
3
Taking the upper drum shaft with your
other hand, slightly lift up the front of the
drum and pull the drum out toward you.
4
JOG SWITCH
FRONT COVER
DRUM SECURING LEVER
Upper drum shaft
CAUTION
¡¡
Do not touch the drum surface; the
ink will get on your clothes.
¡¡
Hold the drum level and place it on a
flat, solid surface.
