Duplo DUPRINTER DP-C100 - Removing Right Paper Jam (Print Tray); Paper Adhering to Drum

- 48 -

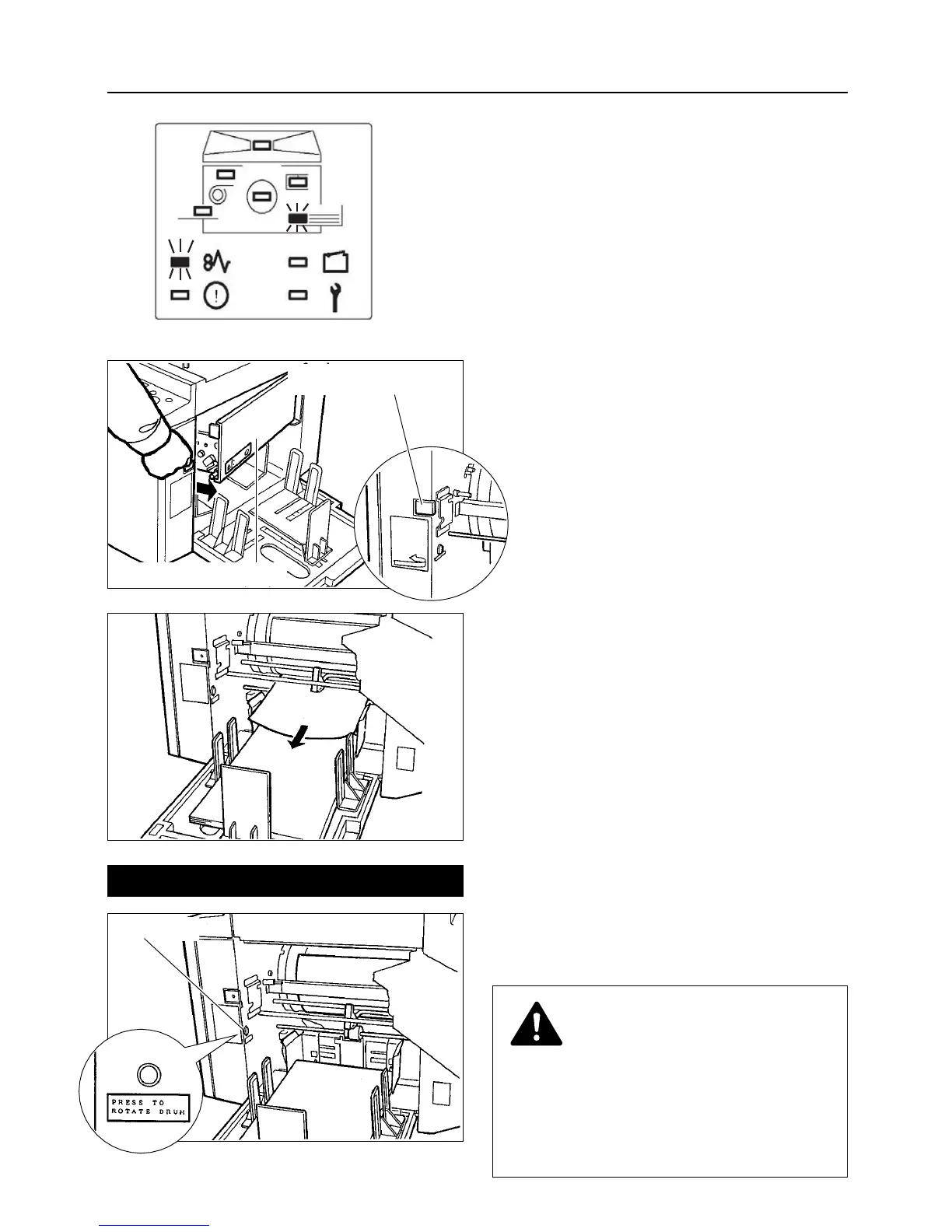

If this message is indicated in the error
display panel, check the delivery side and
remove the jammed paper by following
instruction below:
Removing a right paper jam (print tray side)
Push the master ejection box release
lever. The box will open toward you.
1
Remove the jammed paper.
Eject the paper that is printed halfway
by pressing the
JOG switch.
2
Paper adhering to drum
Press the
JOG switch
to find the edge of
the paper; stop the drum at the position
shown in the diagram.
1
WARNING
¡¡
Do NOT touch the drum or rollers when
you operate the jog switch.
¡¡
Do NOT put hands inside machine
while it is operating.
Hands could get caught up or crushed.
JOG SWITCH
MASTER EJECTION BOX
RELEASE LEVER
MASTER EJECTION BOX
